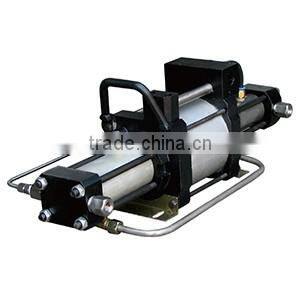

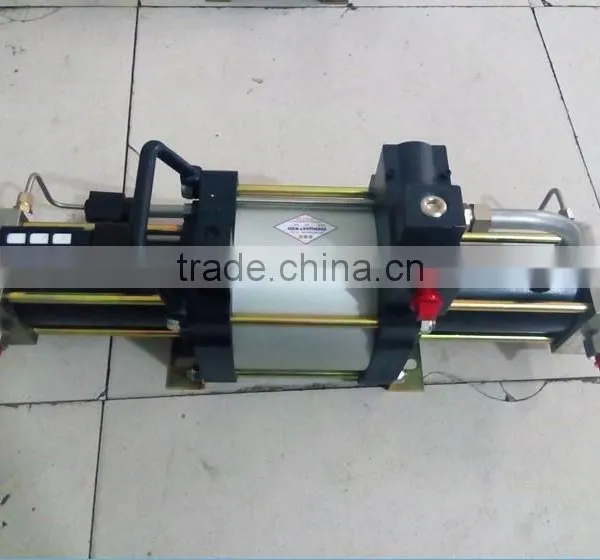

ex-factory price JULY Applicable air pressure booster
- 400 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | JULY | Model Number: | JL-PST25 |
| Theory: | Other, air/gas driven to get high fluid pressure | Structure: | Piston Pump | Usage: | Air Pump |
| Power: | Pneumatic | Standard or Nonstandard: | Standard | Fuel: | Other, Non |
| Pressure: | High Pressure |
Product Description
Never deterred by challenges
Innovative at heart for 31 years
Proudly delivering on our promises
| Item number | JL-PST25 Air Driven Gas Booster | |
Air driven inlet | G 1/2 | |
| Inlet | NPT 1/4 | |
| Outlet | NPT 1/4 | |
| lubrication | Non-lubricated | |
| Theory of operation | The Air liquid pump consist of a large reciprocating air driven piston directly and coupled by a connecting rod to small area Air piston.The Air piston operates in a high pressure air barrel section. Each barrel end contains high pressure inlet and outlet check valves. | |
| Maximum Flow rate | 83 L/min (PA=8 bar) | |
| Installation | As you like |
| Application : Multiple booster applied to the workplace of high pressure gas such as the high pressure test,high pressure gas-filling,special pneumatic tools and so on. |
| Drawing |
|
Technical parameter of air driven liquid pump |
| Mode | Minmum Inlet Air Pressure PA | Maximum Inlet Air Pressure PA | Maxiumum Outlet Air Pressure PB | |||
| bar | psi | bar | psi | bar | psi | |
| JL-PST25 | 0.2 | 2.9 | 10 | 29 | 200 | 2900 |
| JL-PST40 | 0.2 | 2.9 | 10 | 29 | 320 | 4640 |
| JL-PST60 | 0.2 | 2.9 | 10 | 29 | 480 | 6960 |
| JL-PST100 | 0.2 | 2.9 | 10 | 29 | 800 | 11600 |
PA = Input Air Pressure PB = Outlet Air Pressure
| Model | Pressure ratio | Joint angle size | Maximum Flow rate | Net weight | ||
| Air driven inlet | Inlet | Outlet | l/min | Kg | ||

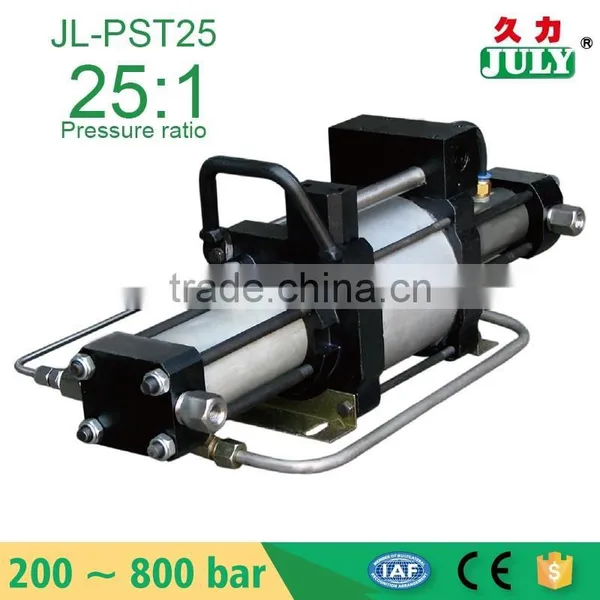

| JL-PST25 | 25:1 | G 1/2 | NPT 1/4 | NPT 1/4 | 83 (PA=8 bar) | 12.7 |
| JL-PST40 | 40:1 | G 1/2 | NPT 1/4 | NPT 1/4 | 75 (PA=8 bar) | 12.7 |
| JL-PST60 | 60:1 | G 1/2 | NPT 1/4 | NPT 1/4 | 51 (PA=8 bar) | 12.7 |
| JL-PST100 | 100:1 | G 1/2 | NPT 1/4 | M14*1.5 | 38 (PA=8 bar) | 12.7 |
Advantage of our pump |
1. Costing savings: An alternative to the purchase of High Pressure compressor ,our air driven liquid are Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify and can mounted in any position
2. High Flow rates at High pressure: When High flow rates at high pressure are needed ,the Air Liquid pump can charge a receiver to an even higher pressure level ,thus storing a volume of air aviable for rapid release at a constant pressure through a pressure reducing valve
3. Safety Operation : Safe Pneumatic Operation-No Heat, Flame or Spark Rish and No need electricity . Cheapest Miniature air driven liquid pump It Can be used for pressure testing ,cylinder positiong for valves ,super critical fluid extraction for food preservation .Chemical metering /Injection ,hydrostatic testing for liquid pump . |
|
| Packaging |
| Shipping |
| By sea | Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | Door to door service,the fastest and most expensive one, 3~6 days by express. |
Company Information |
Direct Factory 1.Our first factory founded in Taiwan in 1985 .
R&D team
Quality is our culture | Application
Certificate
|
Our Advantages |
|
Cooperation Terms |
|
Service Tips |
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. |
If you have any other requirements or questions, welcome to visit our website , or just contact with us directly. Thank you! |
| FAQ |
Q: What products do you supply? A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.
Q: Can you guarantee quality for orders? A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.
Q: Can I have my brand and put my logo on the products? A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.
Q: What's your delivery time? A: That depends. It usually takes 15-30 days for different products and quantity. |
