Product Details
Place of Origin: | Guangdong, China | Brand Name: | JULY | Model Number: | JL-G175-2 |
Theory: | Other, air/gas driven to get high fluid pressure | Structure: | Piston Pump | Usage: | Air Pump |
Power: | Pneumatic | Standard or Nonstandard: | Standard | Fuel: | Other, Non |
Pressure: | High Pressure |
Product Description
WHY CHOOSE US?
1. We owned more than 20 years of experience in Hydro-pneumatic industry.
2. Two our own factories in China.
3. We are the specified education and experimental base of GuangDong University of Science & Technology.
retail JULY high-quality natural gas pump
Application : Multiple booster applied to the workplace of high pressure gas such as the high pressure test,high pressure gas-filling,special pneumatic tools and so on.
Item number | JL-M mini pneumatic driven liquid pump for hydro testing | |
Air driven inlet | G 1/2 | |
Inlet | ZG 1/4 | |
Outlet | M14*15 | |
lubrication | Non-lubricated | |
Theory of operation | The Air liquid pump consist of a large reciprocating air driven piston directly and coupled by a connecting rod to small area Air piston.The Air piston operates in a high pressure air barrel section .Each barrel end contains high pressure inlet and outlet check valves | |
Maximum Flow rate | 0.94 L/min | |
Installation | As you like |

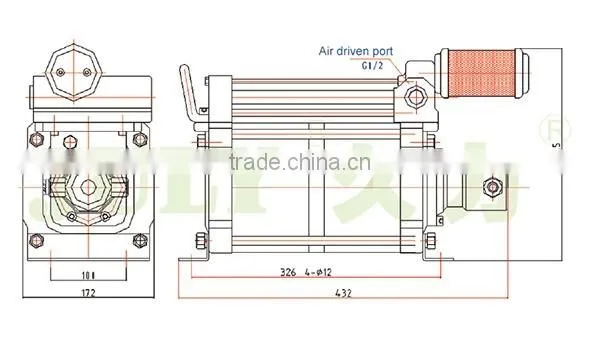

Drawing
Technical parameter of air driven liquid pump
Model xxxXXxxxxx | Pressure ratio | Outlet Pressure | Maximum Flow rate | Joint angle size | Net weight | |||
bar | psi | L/min | Air driven inlet | Inlet | Outlet | Kg | ||
JL-G130-2 | 260:1 | 02080 0 | 30160 | 1.29 | G 1/2 | ZG 1/4 | M14*15 | 16.5 |
JL-G175-2 | 350:1 | 2800 | 40600 | 0.94 | G 1/2 | ZG 1/4 | M14*1.5 | 16.5 |
JL-G255-2 | 510:1 | 4080 | 59160 | 0.65 | G 1/2 | ZG 1/4 | M14*15 | 16.5 |
JL-G400-2 | 800:1 | 6400 | 92800 | 0.42 | G 1/2 | ZG 1/4 | M14*15 | 16.5 |
* The outlet pressure based on air driven pressure is 8Bar (116psi). (It is estimation of maximum allowable pressure.)
* The rate of flow based on the air driven pressure is 6Bar (87psi) and the outlet pressure is 0 Bar. (It is approximate flow value.)
* The mininum air driven pressure is 3 Bar (43.5psi).
Advantage of our pump
1. Costing savings: An alternative to the purchase of High Pressure compressor ,our air driven liquid are
Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify
and can mounted in any position
2. High Flow rates at High pressure: When High flow rates at high pressure are needed ,the Air Liquid pump
can charge a receiver to an even higher pressure level ,thus storing a volume of air aviable for rapid release at a constant
pressure through a pressure reducing valve
3.Safety Operation : Safe Pneumatic Operation-No Heat, Flame or Spark Rish and No need electricity .
Usun Good quality Cheapest Miniature air driven liquid pump
It Can be used for pressure testing ,cylinder positiong for valves ,super critical fluid extraction for food
preservation .Chemical metering /Injection ,hydrostatic testing for liquid pump .
Packaging | ||
1 | We adopt the advanced material Expansible Polystyrene(EPS) as inner packaging , which is more securer and eco-friendly than ordinary packing. Master cartons or wooden case packing in the outside. | |
We can also supply all kinds of packing ,according to customers' requirements: Shipping Marks, Bubble bags, etc.
Julyr industrial
Shipping
Julyr industrial
By sea | Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. |
By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
By express | door to door service,the fastest and most expensive one, 3~6 days by express. |
