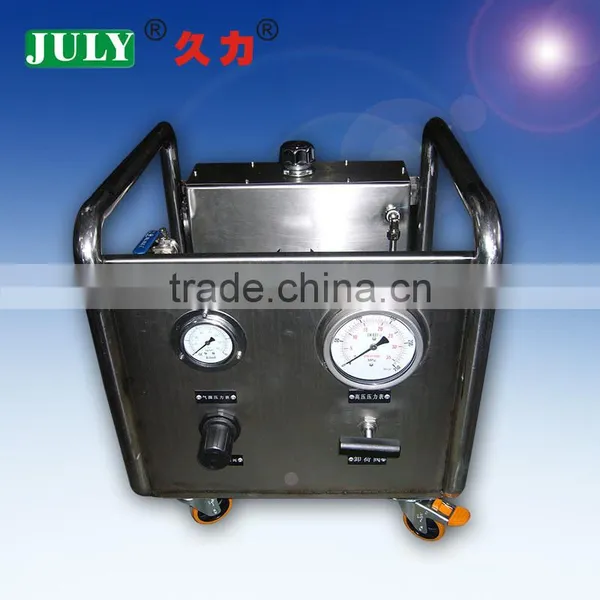

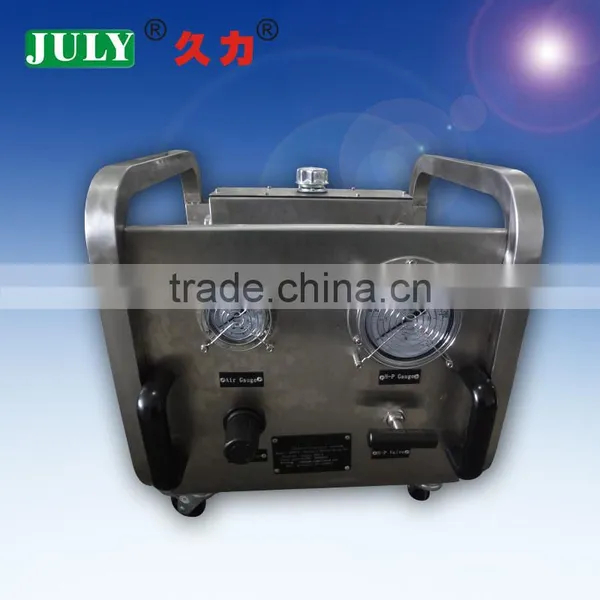

Model : JLS-AH hydrostatic pressure test bench ,air hydraulic pressure test bench ,water pressure testing equipment
Hydraulic Power Packs include JLS-AH 100 Model are complete hydraulic units ready for connection which are provided
for generating operating pressures up to 800MPa. It is suitable for powering a variety of medium, such as oil, water or corrosive liquids.
As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.

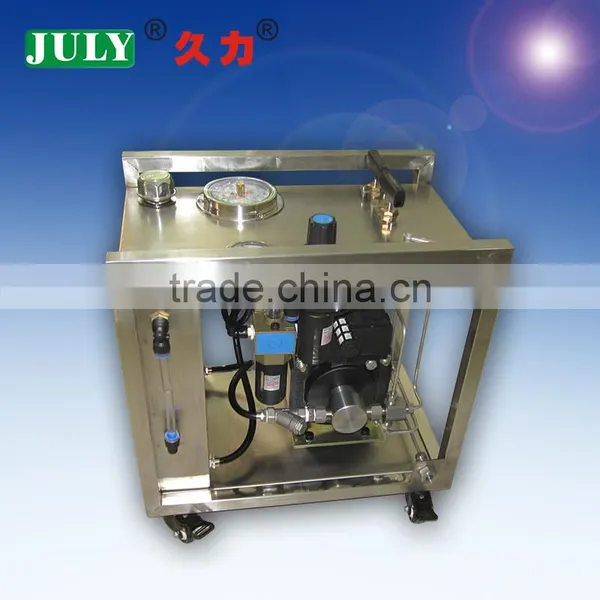

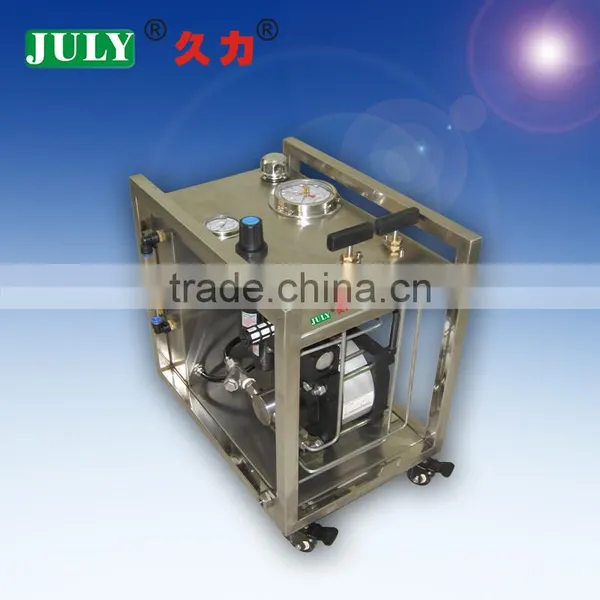

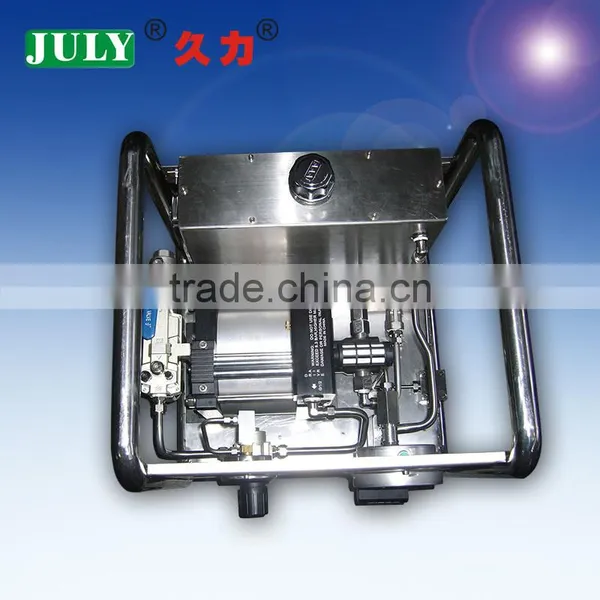

To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and water seperator, pressure-regulating valve,pressure control gauge as well as manual relieve valve.In this operation,the pump will be mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner.Pressure gauges, valves and pressure regulators will be fitted on panel.
The desired operating pressure can be attained by adjusting the driving air pressure.When the driving air pressure and the output pressure reach the balance,the pump stops filling pressure and the output pressure stays at the preset value.
This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.
- Compact and rugged construction
- Applications of air driven liquid pump system ,hydraulic pump system ,air hydraulic pump system
- Hydrostatic and pressure tests for valves, pipe and tubes, pressure vessles, pressure switches,tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc.
- Hydrostatic and dynamic tests for aircraft components
- Calibration of pressure gauges and transducers
- Pressurization of pressure vessels for testing various components
- Emergency shutdown systems for oil and gas wells
Technical parameters
Max. outlet pressure: 80 Mpa
Air drive port: Connect with PU hose
Air drive pressure: 3-8bar
Pressure ratio : 100:1
Generation of pressure :JULY Air driven liquid pump system
Working medium: water ,diesel oil ,liquid and non- corrosive liquid
Drive medium: Compressed air
