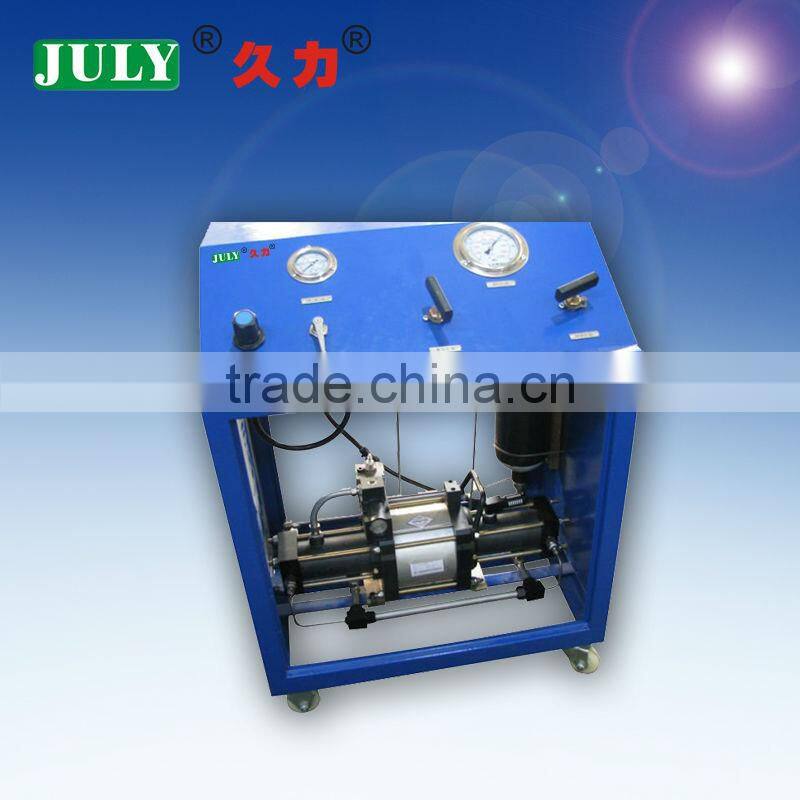

JLS-GBT 15/60 480 Bar High pressure pneumatic power pack
Pneumatic Gas Booster System is a complete gas booster units ready for connection which are provided for generating operating pressures up to 48MPa. It is suitable for powering medium as gas .
- As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
- To operate this system, the air driven gas boosters have to be equipped with the air control unit for driven air pressure adjusted.
- The desired operating pressure can be attained by adjusting the driven air pressure through regulator valve.When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value.
- Ideal for power source of tipping system on rail tipper
- Constant outlet pressure can be got through JLS-GBt 15/60 Pneumatic power pack
Key features:
Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof
Pneumatically powered of oil free compression and clean air .No contamination possible
Simple controlling and regulating processes because of the compressed-air drive.
Robust and reliable operation in hardest operating enviroment.For example,
System configuration:
JLS-GBT 15/60 gas booster system mainly includes one piece of GBT 15/60 air driven gas booster,pressure gauges,air filter,gas inlet filter, control valves,air regulating valve, pipelines,cabinet,high pressure buffer vessel(1L,50Mpa),high pressure regulator(inlet pressure: 10000Psi, outlet pressure: 6000Psi), high pressure relief valve(6000Psi), pressure release valve etc.
Technical parameters
Max. outlet pressure: 480bar
Air drive port: Connect with PU hose
Air drive pressure: 3-8bar
Inlet pressure: 1- 10 Bar
Flow rate: 80 liters per min
constant output pressure: 0-480bar(adjustable)
Working medium: Nitrogen, argon etc non-corrosive gas
Drive medium: Compressed air
Inlet port: NPT1/4''
Outlet port: NPT1/4''
Air consumption: 0.6-1.5M3/min
Noise: <75db JLS-GBT15/60 Gas booster system
