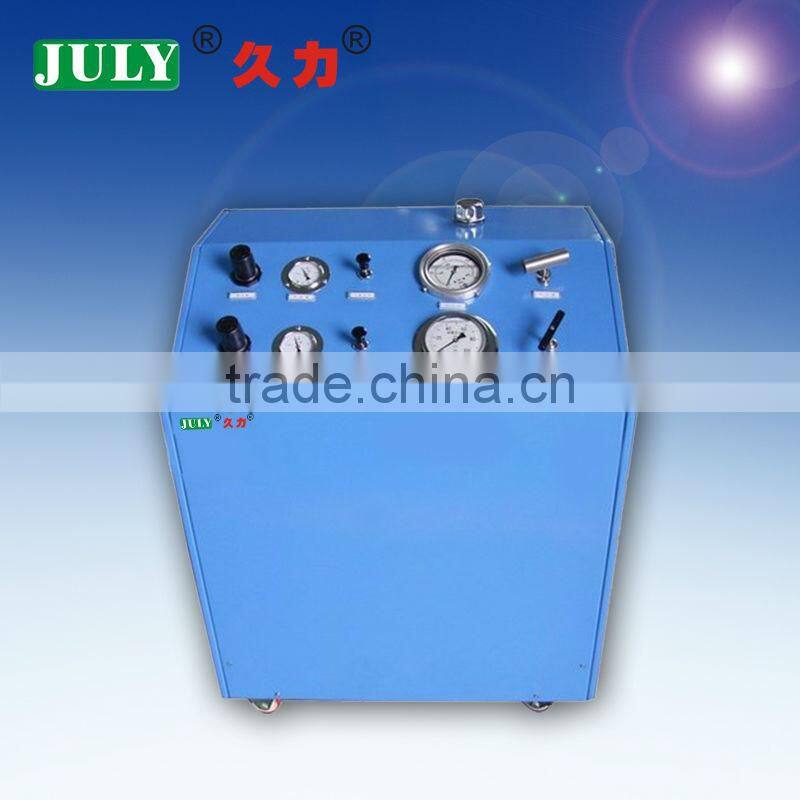

Help CenterHigh Quality JULY 48Mpa High Pressure Nitrogen Gas Booster System
Related Products
-
JULY Factory Directly Sale 40 Bar Air Pressure MultiplierUS$ 1,500 - 3,000MOQ: 1 Set -
Model :JLS-AB05T 40 Bar Air Pneumatic Pressure System With Gauges and ValvesUS$ 1,500 - 3,000MOQ: 1 Piece
-
JULY Pressure Pneumatic Hydrostatic Test PistonUS$ 2,000 - 3,500MOQ: 1 Piece
-
JULY Pneumatic Driven Gas Pressure Test for CylinderUS$ 2,000 - 3,500MOQ: 1 Piece
-
JULY Pneumatic Pressure Test for Air Hose TesterUS$ 2,000 - 3,500MOQ: 1 Piece
Specifications
1) Use compressed air as the pneumatic power to get higherrequired pressure ,it is well ready for connection .
JULY model : JLS-GBD60 48Mpa nitrogen gas booster system
booster pumpsystem ,pneumatic nitrogen gas booster system
- Nitrogen Gas Booster System unit is a complete gas booster units ready for connection which are provided for generating operating pressures up to 48MPa. It is suitable for powering medium as gas .
- As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.
- To operate this system, the air driven gas boosters have to be equipped with the air control unit for driven air pressure adjusted.
- The desired operating pressure can be attained by adjusting the driven air pressure through regulator valve.When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value.
- Ideal for power source of tipping system on rail tipper
- Constant outlet pressure can be got through JLS-GBD60
-
Key features:
Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof
Pneumatically powered of oil free compression and clean air .No contamination possible
Simple controlling and regulating processes because of the compressed-air drive.
Robust and reliable operation in hardest operating enviroment.For example,
System configuration:
JLS-GBD60 Nitrogen system mainly includes one piece of GBD60 air driven gas booster,pressure gauges,air filter,gas inlet filter, control valves,air regulating valve, pipelines,cabinet,high pressure buffer vessel high pressure regulator,pressure release valve etc.
Technical parameters
Max. outlet pressure: 480bar
Air drive port: Connect with PU hose
air drive pressure: 3-8bar
Inlet pressure:25-480 Bar
Flow rate: 112 litre/min
constant output pressure: 0-480 bar
Working: Nitrogen, argon etc non-corrosive gas
Drive medium: Compressed air
Inlet port: NPT1/4''
Outlet port: NPT1/4''
Noise: <75db JLS-GBD60 Nitrogen gas booster system ,
