Home > Products > 1.Hydro-pneumatic press machine > Exclusive JULY brand model punching machine tube
Exclusive JULY brand model punching machine tube
- 10 Set / Sets per Month
- Shenzhen port
- T/T Credit Card PayPal
-
Professional High Precision Wide Application J23-25 cnc turret punching machines
-
High Precision Wide Application J23-25 c frame punch press
-
Professional High Precision Wide Application J23-25 hydraulics
-
High Precision Wide Application J23-25 c frame fixed table punching machine
-
Factory Sale High Precision Wide Application J23-25 construction material making machine
-
High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details

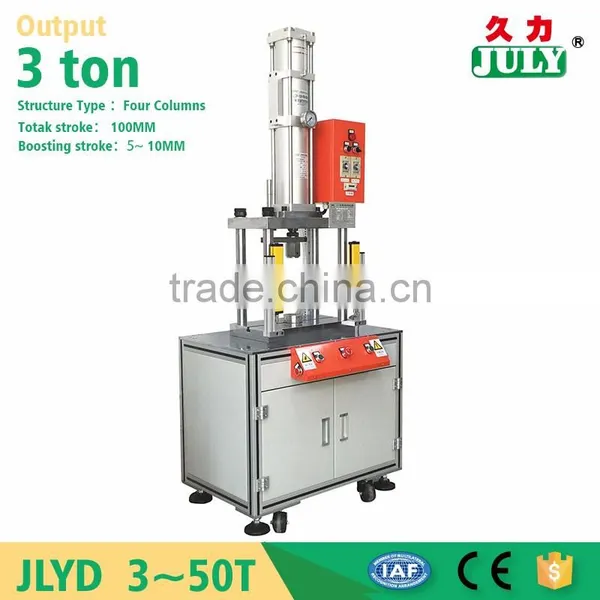

| Condition: | New | CNC or Not: | Normal | Power Source: | Pneumatic |
| Place of Origin: | Guangdong, China | Brand Name: | JULY | Model Number: | JLYD-3T |
| Voltage: | 220v | Power(W): | AC220V 50HZ | Weight: | 200-300 KGS |
| Dimension(L*W*H): | 630*375*1265 mm | Certification: | ISO | Warranty: | 1 Year |
| After-sales Service Provided: | Overseas third-party support available |
Product Description
Never deterred by challenges
Innovative at heart for 31 years
Proudly delivering on our promises
| Hydro-pneumatic press machine | Pneumatic press machine | Hydraulic press machine | Riveting Machine | Heat press machine |
| (hot) JLYC (3~50T) | (hot) JLYA (0.1~0.5T) | (hot) JLCX105C (1T~15T) | (hot) JLYE (5~10T) | JLYD H (3~15T) |
| JLYCZ (3~15T) | (hot) JLYB (0.3~1T) | (hot) JLCX106K (10T~100T) | JLS-710 JLS-928 JLS-989 JLZ-989N JLZ-988RR JLZ-958K JLZ-988RF JLZ-968ML JLZ-988DX | (hot) JLCX530 (3T-50T) |
| (hot) JLYD (3~50T) | JLCX101 (0.2T-1.2T) | JLCX107 (3T~15T) | ||
| JLYDZ (3~15T) | JLCX101D (0.5T-2T) | LCX108 (3T~15T) | ||
| (hot) JLYE (5~10T) | JLYD-A (0.1~2.2T) | JLCX108J (5T~50T) | ||
| (hot) JLCX108K (10T~100T) | ||||
| JLCX108T (5T~30T) | ||||
| JULY® was founded in 1985 with more than 31 years of R&D and OEM experience. | ||||
| welcome to visit our website >" href="http://july.en.china.cn/" target="_blank">>> | ||||

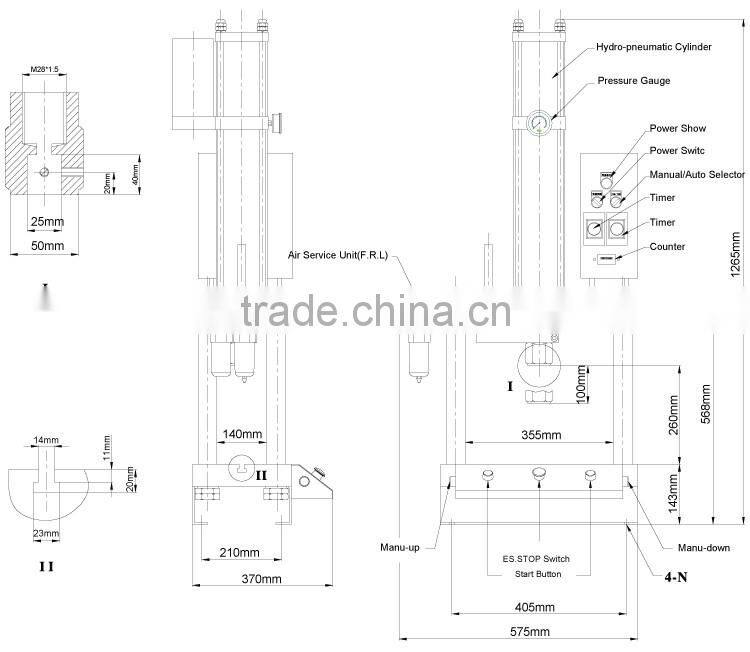

| Drawing |
|
| Application |
|
|
Specification |
| Model | 3T | 5T | 10T | 15T | 20T | 30T | 40T | 50T |
| Max height | 245 | 245 | 245 | 245 | 240 | 300 | 300 | 300 |
| Cylinder specification | Ø63mm | Ø80mm | Ø100mm | Ø125mm | Ø125mm | Ø160mm | Ø160mm | Ø180mm |
| Power | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC 220V 50HZ | AC 220V 50HZ | AC 220V 50HZ | AC 220V 50HZ |
| Driving pressure | 0.4-0.7 MPa | 0.4-0.7 MPa | 0.4-0.7 MPa | 0.4-0.7 MPa | 0.4 - 0.7 mpa | 0.4 - 0.7 mpa | 0.4 - 0.7 mpa | 0.4 - 0.7 mpa |
| Weight | 180kg | 200kg | 280kg | 320kg | 460 kg | 1020 kg | 1360 kg | 1680 kg |
| Driven pressure | Theoretical output | |||||||
| 0.4MPa | 2000Kgf | 4000Kgf | 6240Kgf | 10240Kgf | 13900 kgf | 20100 kgf | 26000 kgf | 39600 kgf |
| 0.5MPa | 2500Kgf | 5000Kgf | 7800Kgf | 12800Kgf | 17500 kgf | 25000 kgf | 32600 kgf | 49600 kgf |
| 0.6MPa | 3000Kgf | 6000Kgf | 96360Kgf | 15350Kgf | 20900 kgf | 30000 kgf | 39000 kgf | 59500 kgf |
| 0.7MPa | 3500Kgf | 7000Kgf | 10920Kgf | 17900Kgf | 24500 kgf | 35000 kgf | 45700 kgf | 69400 kgf |
Optional accessories |
|
Characteristics |
|
| Packaging |
| Shipping |
| By sea | Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | Door to door service,the fastest and most expensive one, 3~6 days by express. |
Company Information |
Direct Factory 1.Our first factory founded in Taiwan in 1985 .
R&D team
Quality is our culture | Application
Certificate
|
Our Advantages |
|
Cooperation Terms |
|
Service Tips |
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. |
If you have any other requirements or questions, welcome to visit our website , or just contact us directly. Thank you! |
| FAQ |
Q: What products do you supply? A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.
Q: Can you guarantee quality for orders? A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.
Q: Can I have my brand and put my logo on the products? A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.
Q: What's your delivery time? A: That depends. It usually takes 15-30 days for different products and quantity. |
