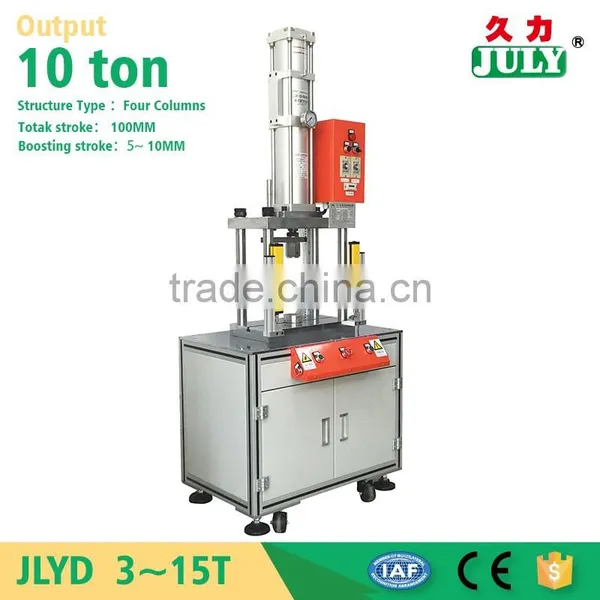

wholesale JULY brand hydro-pneumatic copper stamping machine
- 150 Set / Sets per Month
- Shen zhen
- T/T Credit Card
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Guangdong, China | Brand Name: | JULY | Model Number: | JLYD-10t |
Voltage: | 220V | Power(W): | AC220V 50HZ | Weight: | 240KG |
Dimension(L*W*H): | 370*630*1375MM | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Overseas service center available |
Product Description

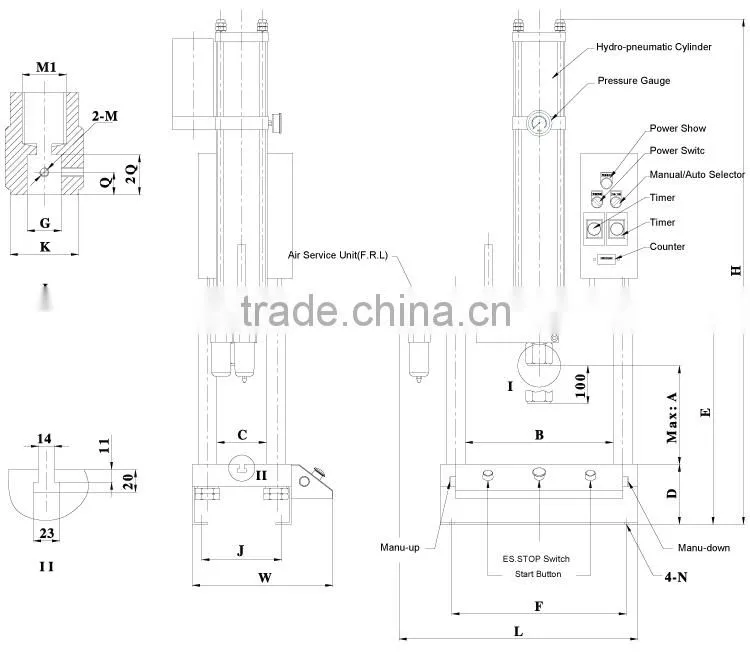

Drawing
Sizetable
Model | max:A | B | C | D | E | F | J | G | K | Q | M | M1 | N | W | L | H |
JLYD-63 | 260 | 355 | 140 | 143 | 568 | 405 | 210 | 25 | 50 | 20 | M8 | M28*1.5 | φ12 | 370 | 575 | 1265 |
JLYD-80 | 260 | 355 | 140 | 148 | 578 | 405 | 210 | 25 | 50 | 20 | M8 | M30*1.5 | φ12 | 370 | 575 | 1315 |
JLYD-100 | 260 | 390 | 130 | 158 | 588 | 460 | 210 | 30 | 60 | 20 | M10 | M39*2 | φ12 | 370 | 630 | 1375 |
JLYD-125 | 260 | 390 | 130 | 163 | 598 | 460 | 210 | 30 | 68 | 20 | M10 | M48*2 | φ12 | 370 | 630 | 1480 |
Application
- Stamping sign
- Bending profile
- Punching die
- Die cutting rigid material
- Touch-welding profile
- Squeezing die and forming
- Flattening and straightening
- Riveting and forging
- Shaping metal plate
- Closing assembly
- Testing material
- Riveting joint

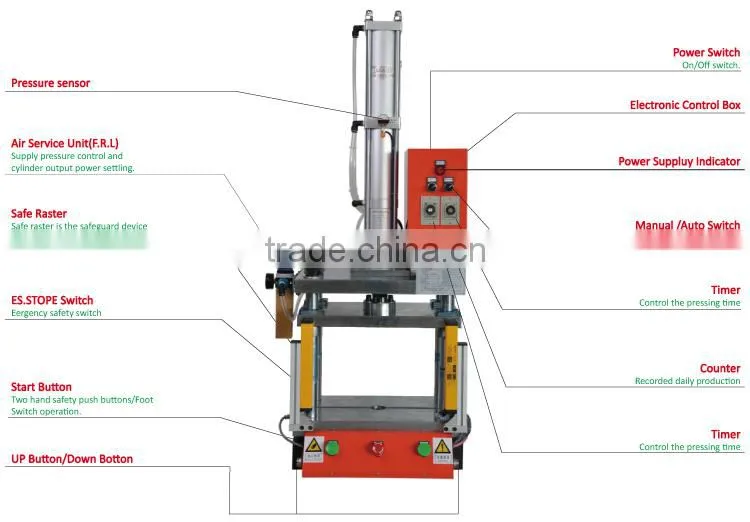

Characteristics
- It is pneumatically driven,export thrust,simple to operate.
- No hydraulic system noise, can save electricity consumption and thus reduce production costs.
- Adjustable cylinder stroke and customized for special request.
- Easy to adjust the output, the required pressure can be reached by simply regulating the air pressure.
- Safety and humanity design that ensure operation comfort and long lifespan .
- Allows adding heating modules and temperature controller, as well as forcing transducer additionally.
- Available working platform: 500*560*610mm (L*W*H).

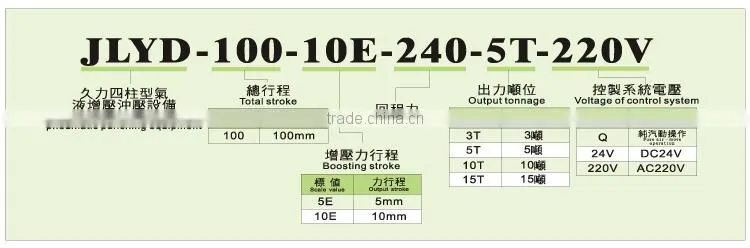

Modelinformation
Specification
Model | JLYD-63 | JLYD-80 | JLYD-100 | JLYD-125 |
Working Height | 260 | 260 | 260 | 260 |
Cylinder Specifications | Ø63*100mm | Ø80*100mm | Ø125*100mm | Ø125*100mm |
Power | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz |
Driving Pressure | 0.4-0.7MPa | 0.4-0.7MPa | 0.4-0.7MPa | 0.4-0.7MPa |
Weight | 160kg | 180kg | 240kg | 280kg |
Driving Pressure | Theoretical output | |||
0.4MPa | 2000Kgf | 4000Kgf | 6240Kgf | 10240Kgf |
0.5MPa | 2500Kgf | 5000Kgf | 7800Kgf | 12800Kgf |
0.6MPa | 3000Kgf | 6000Kgf | 9360Kgf | 15350Kgf |
0.7Mpa | 3500Kgf | 7000Kgf | 10920Kgf | 17900Kgf |
Optional accessoriesPackaging
Shipping
By sea | Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. |
By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
By express | Door to door service,the fastest and most expensive one, 3~6 days by express. |
Direct Factory
R&D team
Quality is our culture | Application
Certificate
| |
Our Advantages
- Various style for each products and completely series pneumatic products for you to choose from.
- Large stock for fast shipping.
- High quality with competitive price
- Sample order & small quantity order is ok
- Customize according to your special demand.
- Provide free products information.
- Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website( Go our website,please click here. ←_← ), or just contact with us directly. Thank you!
Julyr industrial
Cooperation Terms
- Sample terms: Sample fee is charged and will be refunded when order is placed.
- Sample time: 3-5 working days.
- Payment terms: Full payment in advance.
- Delivery Time: 3-5 weeks after sample confirmation.
Q: What products do you supply?
A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.
Q: Can you guarantee quality for orders?
A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.
Q: Can I have my brand and put my logo on the products?
A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.
Q: What's your delivery time?
A: That depends. It usually takes 15-30 days for different products and quantity.
