2014 latest professional High Yield waste oil to diesel fuel refinery distilation
1.Welcome to our company
2.3D Work flow chat of Waste Diesel Recycling Distillation Plant
The whole pyrolysis system is composed by 16 parts,which are reactor,Insulation
layer,Desulfurization,deduster,Draft fan,Chimney,Water film cyclone,Condenser,Water tank,Cooling tower(optional),Gas recycle system,Oil tank,Gas separate,Waste gas burner,Furnace,Blower,Carbon black slag system.
The keys of pyrolysis plant are reactor and cooling system.
3 .Technical Parameter For Waste Diesel Recycling Distillation Plant

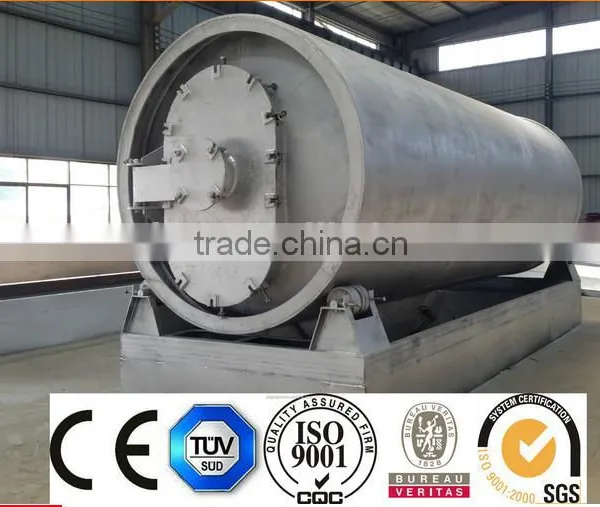

Distillation reactor
Type |
Technical parameter |
||||
Steel thickness(mm) |
daily disposal(T) |
daily power(°C) |
daily water(m3) |
daily coal(kg) |
|
8m3/5T |
12 |
5 |
80 |
0.5 |
500-600 |
12m3/8T |
12 |
8 |
120 |
0.8 |
700-900 |
15m3/10T |
16 |
10 |
180 |
1.5 |
1200-1400 |
30m3/20T |
16 |
20 |
280 |
2.5 |
1500-1600 |
Catalyst tower
Type |
Technical parameter |
|||
thickness of tower(mm) |
dia. of tower(φ) |
high of tower(mm) |
tray quantity of tower(layer) |
|
8m3/5T |
6 |
600 |
2800 |
3 |
12m3/8T |
8 |
700 |
3600 |
3 |
15m3/10T |
10 |
800 |
3800 |
4 |
30m3/20T |
10 |
800 |
4600 |
4 |
4.Main specification Of Waste Diesel Recycling Distillation Plant
Model |
Reactor material |
Capacity |
Container |
DYZL-05 |
316L stainless steel |
3-5tons |
2*40HQ |
DYZL-10 |
316L stainless steel |
6-10tons |
2*40HQ |
DYZL-15 |
316L stainless steel |
10-15tons |
2*40HQ |
DYZL-20 |
316L stainless steel |
15-20tons |
3*40HQ |
DYZL-25 |
316L stainless steel |
20-25tons |
3*40HQ |
DYZL-30 |
316L stainless steel |
25-30tons |
4*40HQ |
5. Waste Diesel Recycling Distillation Plant Features
1.This continuous oil distillaiton plant can working continuous non-stop for about 30 Days
2.The whole system have pre-heating system, this system use exhaust gas (produced by coal or wood burining to heat distillaiton plant )to heating raw oil before raw oil go into distillaiton reactor. This preaheating sytem can save fuel in great degree and saving heating time .
3.This continuous oil distillaiton plant is environmental protection.
The plant have advance dedust and desulfer system ,wich can keep the smoke go into sky non-polution.
4. This continuous oil distillaiton plant is safety
a. There is safety vavles on the plant
b. There is auto alarming sytem ont he plant
c. There is electric control system on the plant
6.Carbon black recycles system
Heaving dragon screw conveyer
The solid residual will be left after the catalyst splitting from scrap plastic, approximately take up 5% to 10% of the waste tire.
Its main component is the black carbon, which can be used as raw materials in industry, as well could be mixed with the pulverized coal ash to produce the raw material of the thermal power plant, and also could be applied to the manufacturingof the pulverized coal ash brick
