Plastic Pyrolysis Machine For Power Generation Applicaiton Fuel Oil
1. Plastic Pyrolysis Machine Technical Details
Specification | Capacity | Raw material | Heating material | Working time (hrs) | Shipped by |
DYLY-2200-6000 | 5Ton |
Waste tyres Cables Plastics Rubber Oil sludge |
Wood,coal ,oil,gas | 12 | 2*40HQ |
DYLY-2600-6000 | 8Ton | 15 | 1*40HQ+1*40FR | ||
DYLY-2600-6600 | 10Ton | 18 | 1*40HQ+1*40FR | ||
DYLY-2800-6000 | 10Ton | 18 | 1*40HQ+1*40FR | ||
DYLY-2800-6600 | 12Ton | 20 | 1*40HQ+1*40FR |

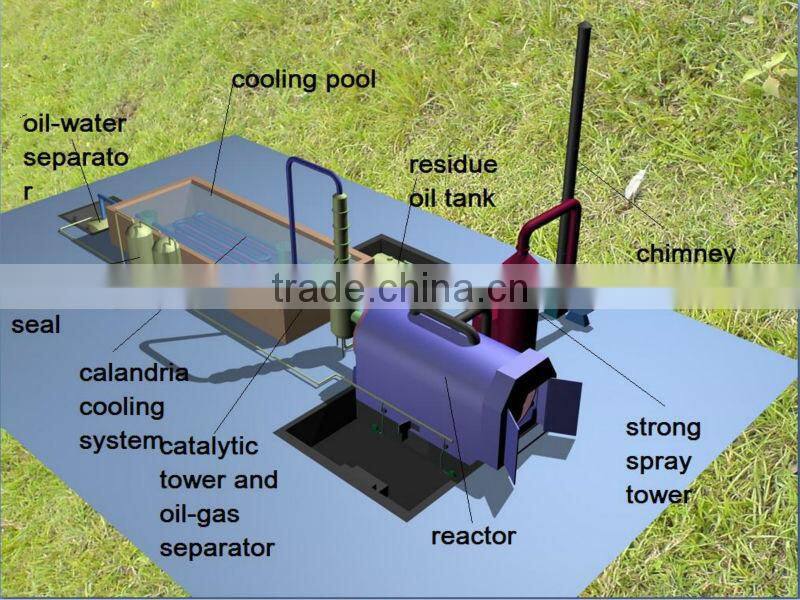

2. Plastic Pyrolysis Machine Working process scheme
3. Plastic Pyrolysis Machine
1.Reactor |
2.Catalyst tower |
3.Oil separator |
4.Condenser cooling system |
5.Cooling pool |
6.Light oil collection tank |
7.Heavy oil collection tank |
8.Vacuum system |
9.Water seal tank |
10.Dust remove disposal device(strong spray tower,draft fan,active carbon absorption tower,purify water pool) |
11.Operation plat form |
12.Power Control cabinet |
13.Other accessory |
4. Plastic Pyrolysis Machine Batch Working Time
Model | Feeding | Processing | Cooling | Discharge | total |
2200*6000 | 2hr | 7-8hr | 2hr | 2hr | 14hr |
2200*6600 | 2hr | 8hr | 2hr | 2hr | 14hr |
2600*6000 | 3 hr | 10 hr | 3 hr | 3 hr | 19 hr |
2600*6600 | 3 hr | 11 hr | 3 hr | 3 hr | 20 hr |
2800*6000 | 3 hr | 12 hr | 3 hr | 3 hr | 21 hr |
2800*6600 | 3 hr | 13-14 hr | 3 hr | 3 hr | 23 hr |
5. Plastic Pyrolysis Machine Power Requirement
model | Draft fan | speed reducer | water pump | oil pump | 4blowers |
2200*6000 | 4kw | 3kw | 1.5kw | 1.5kw | 1kw |
2200*6600 | |||||
2600*6000 | 7.5kw | 5.5kw | |||
2600*6600 | |||||
2800*6000 | |||||
2800*6600 |

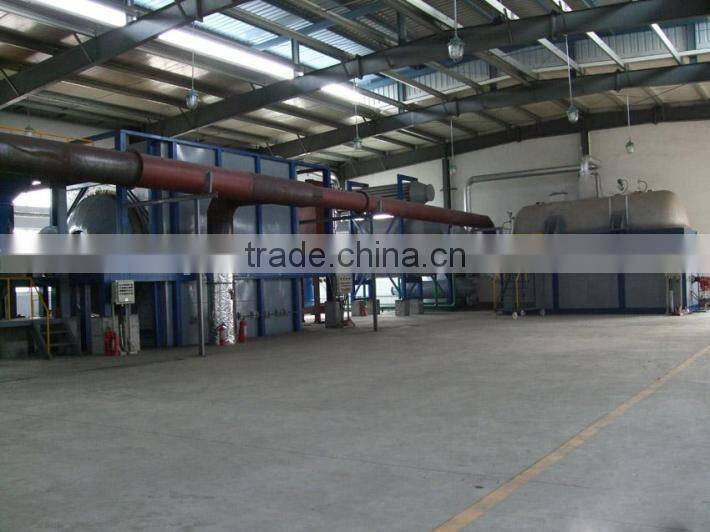

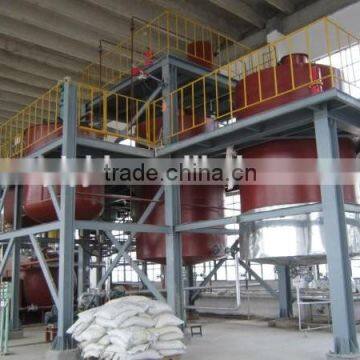

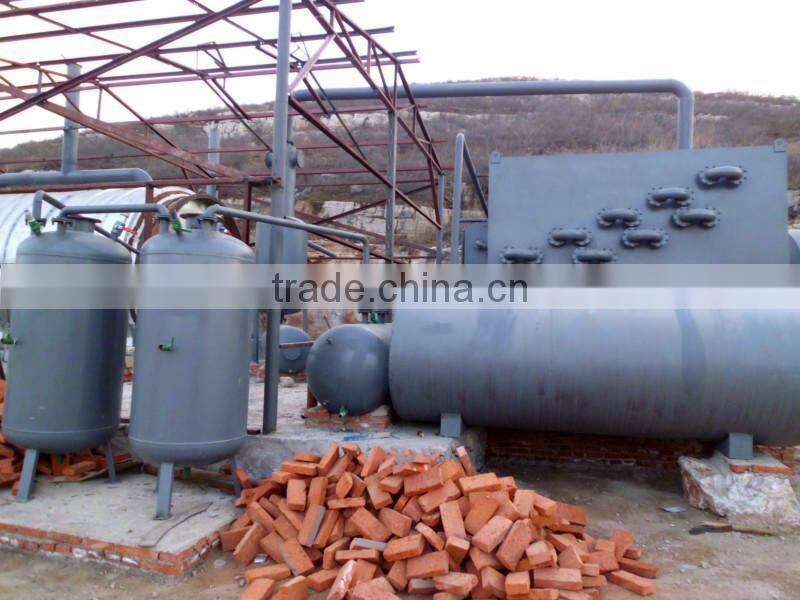

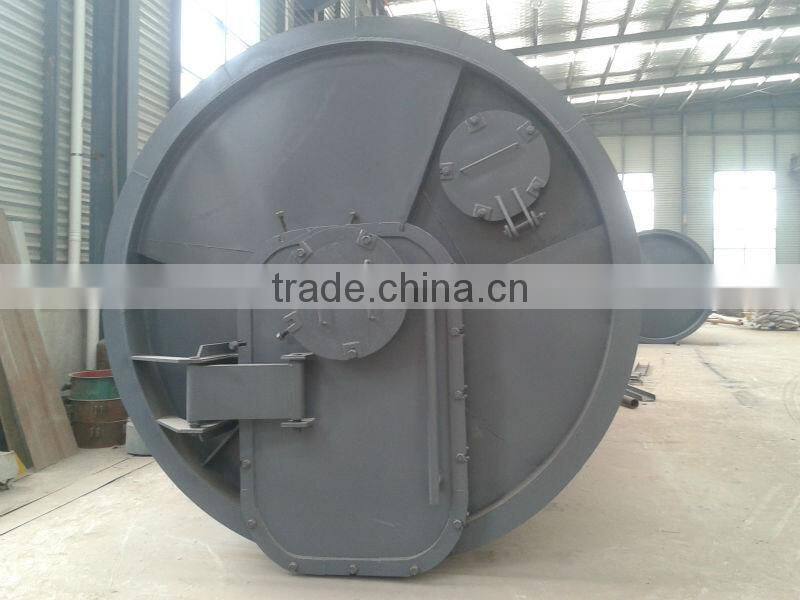

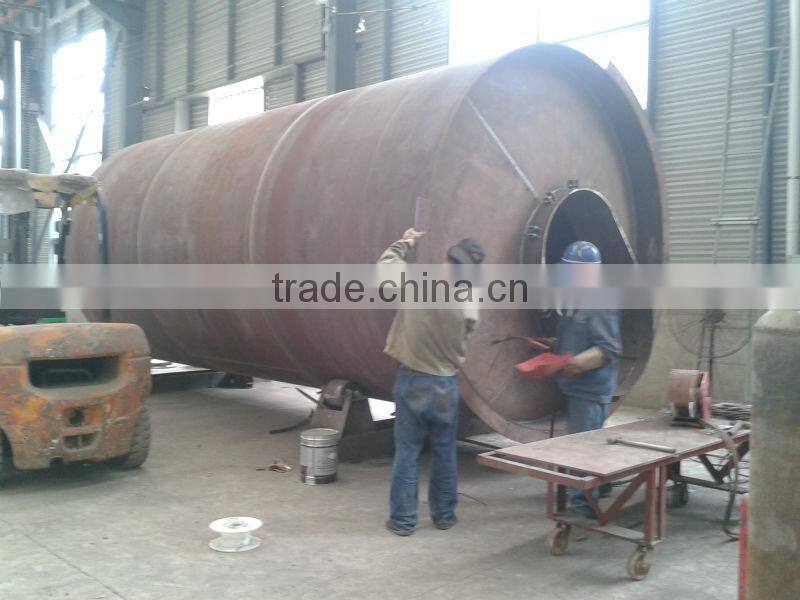

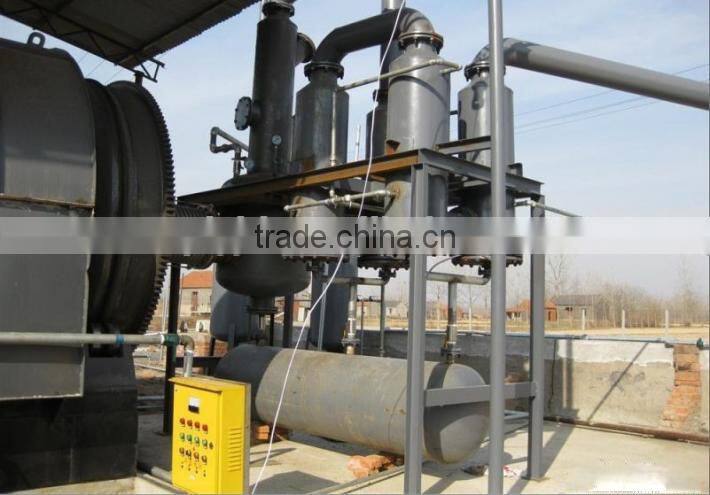

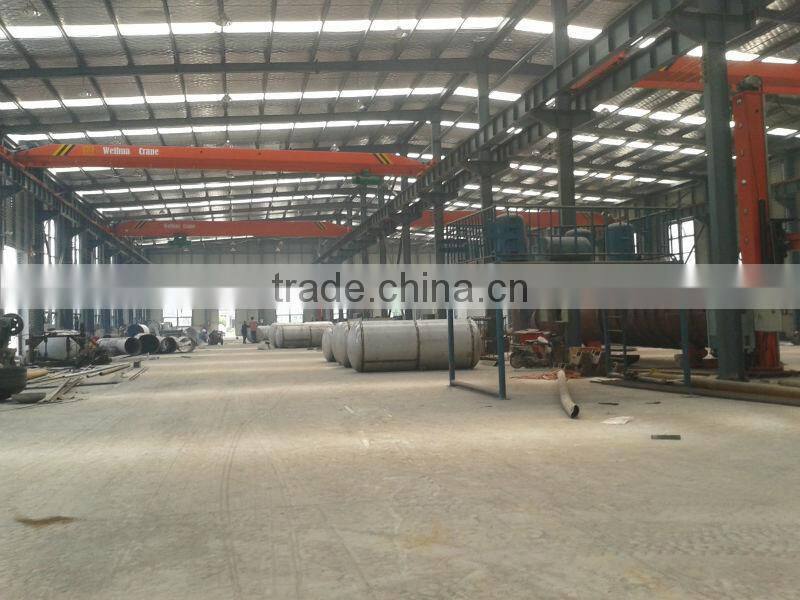

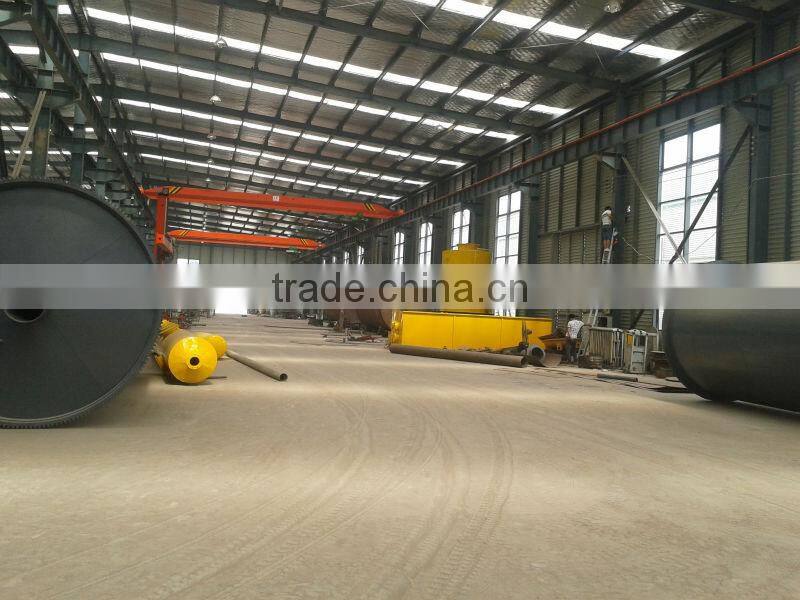

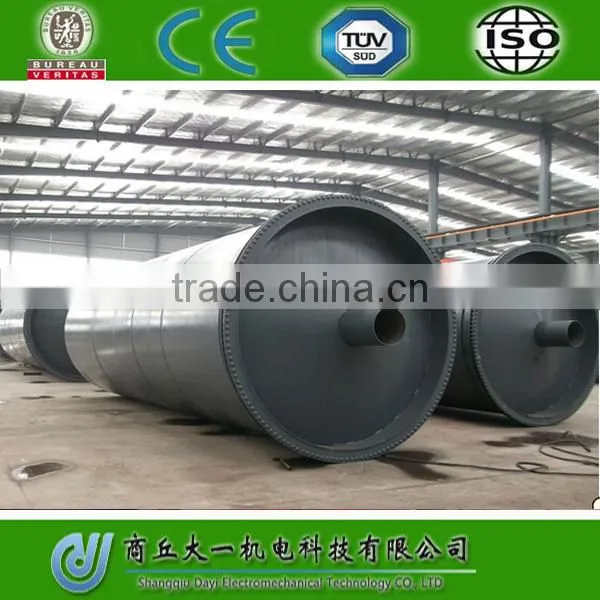

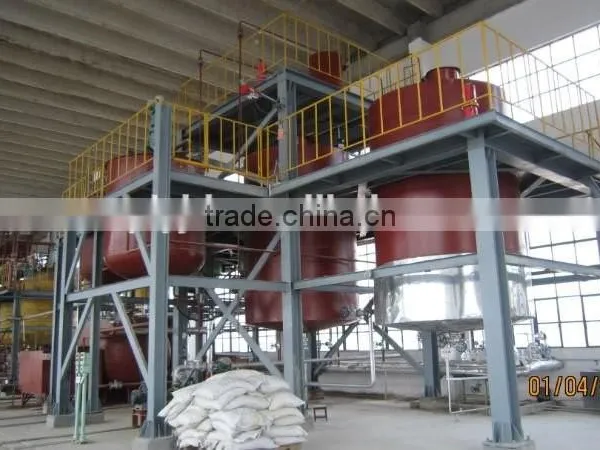

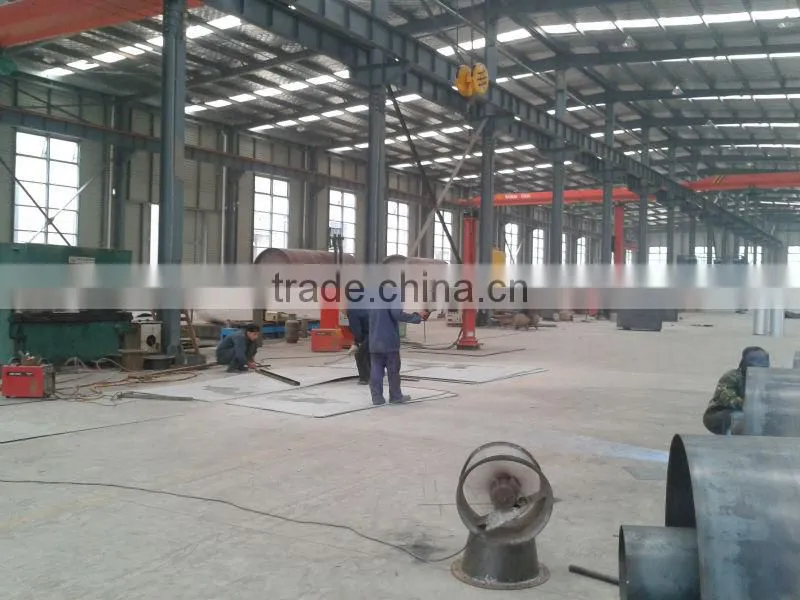

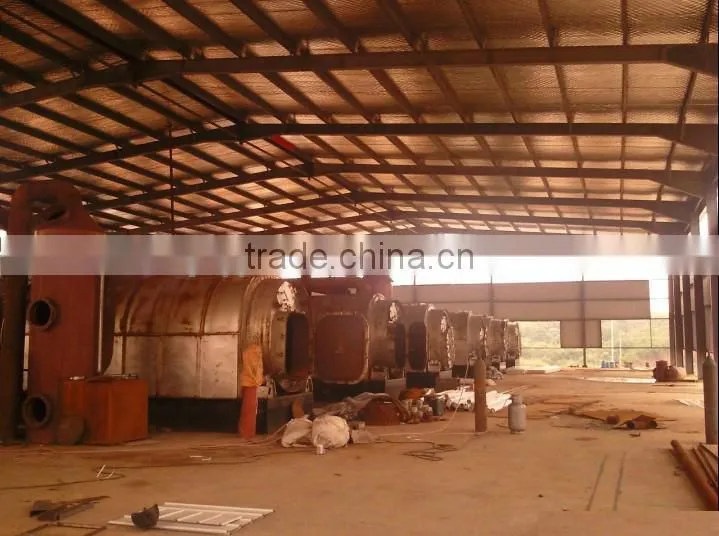

6.Plastic Pyrolysis Machine Photos
7. Plastic Pyrolysis Machine Plant Features
A. High oil rater output
Oil yied/day | Waste tire/ rubber | Big tyres | 45%--50% |
Car tyres | 40% | ||
Bicycles and motorcycles tyres | 30%--35% | ||
Waste plastic | Fishing net | 45%--50% | |
Safety net , farm-oriented film | |||
Conwenient bags , weave bags | 40% | ||
Off cut of recycled paper mill | 20%--30% |
B. Environmetal friendly
1).waste gas
Flammable gas can be recycle used by the reactor.
2).waste water
which can use waste disposal equipment to recycling used by strong spray
tower.
3).Bad smell: there will be some chemical substances feed into the catalysis tower
and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
4).Waste smoke.We have 3 level smoke disposal system.
strong spray tower and activated carbon adsorption tower and spiral dedust system,make
sure the emission standard reach PPM
C.High configuration
1.)Base of reactor :Stainless steel
2.)Strong spray tower stainless steel
3).Activated carbon adsorption tower stainless steel
4).Draft fan stainless steel
5).Cooling system made of 2condensor ,cooling tower &1set of coil pipe system,waste spray cooling system
