High Yield Rate Medical Waste To Fuel Oil Recycling Plant By Pyrolysis Way
Plant Specification
Specification | Capacity | Raw material | Heating material | Working time (hrs) | Shipped by |
DYLY-2200-6000 | 5Ton | Waste tyres Cables Plastics Rubber Oil sludge |
Wood,coal ,oil,gas | 12 | 2*40HQ |
DYLY-2600-6000 | 8Ton | 15 | 1*40HQ+1*40FR | ||
DYLY-2600-6600 | 10Ton | 18 | 1*40HQ+1*40FR | ||
DYLY-2800-6000 | 10Ton | 18 | 1*40HQ+1*40FR | ||
DYLY-2800-6600 | 12Ton | 20 | 1*40HQ+1*40FR | ||
DYLY-2800-6600 | 15ton | Medical waste |
| 22 | 1*40HQ+1*40FR |
Contiuous plant | 20Ton | Other waste |
| 24 | 3*40HQ |
Contiuous plant | 60Ton |
|
| 24 | 5*40HQ |
Power required
model | Draft fan | speed reducer | water pump | oil pump | 4blowers |
2200*6000 | 4kw | 3kw | 1.5kw | 1.5kw | 1kw |
2200*6600 | |||||
2600*6000 | 7.5kw | 5.5kw | |||
2600*6600 | |||||
2800*6000 | |||||
2800*6600 |
Working times
Model | Feeding | Processing | Cooling | Discharge | total |
2200*6000 | 2hr | 7-8hr | 2hr | 2hr | 14hr |
2200*6600 | 2hr | 8hr | 2hr | 2hr | 14hr |
2600*6000 | 3 hr | 10 hr | 3 hr | 3 hr | 19 hr |
2600*6600 | 3 hr | 11 hr | 3 hr | 3 hr | 20 hr |
2800*6000 | 3 hr | 12 hr | 3 hr | 3 hr | 21 hr |
2800*6600 | 3 hr | 13-14 hr | 3 hr | 3 hr | 23 hr |
Work flow:

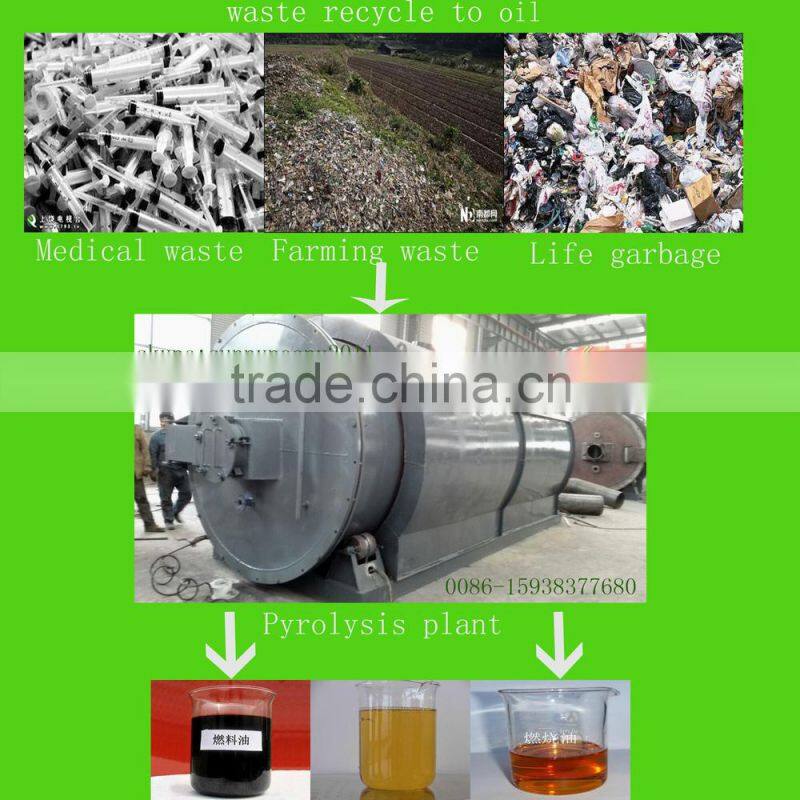

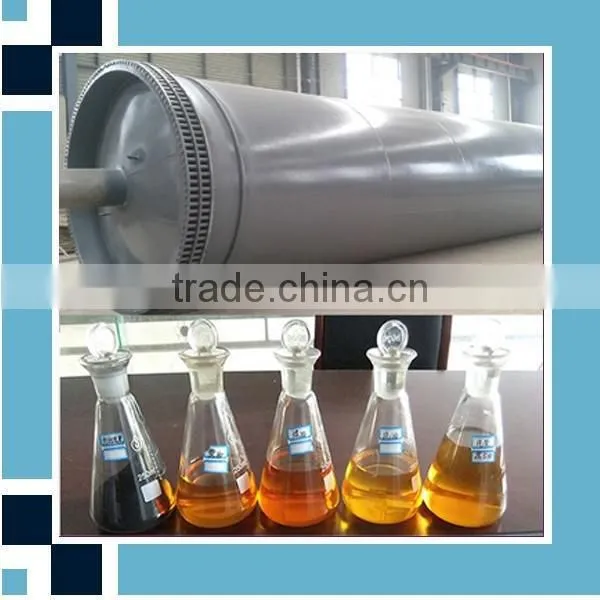

Final Product and usage
output | usage |
crude oil(45%-55%) | Burn as fuel oil : power plant factory Cement factory Boiler factory and so on Refine to diesel : Low speed engine like digging machine road roller loading machine and so on |
carbon black(30%-35%) | Make carbon black bars through carbon black pellet machine as fuel
grinding to Increase the mesh of carbon black to make new tyre ,painting and so on |
Payment Term And Delivery:
30%TT deposit payment , balance by sight LC

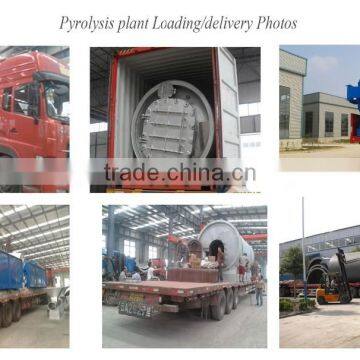

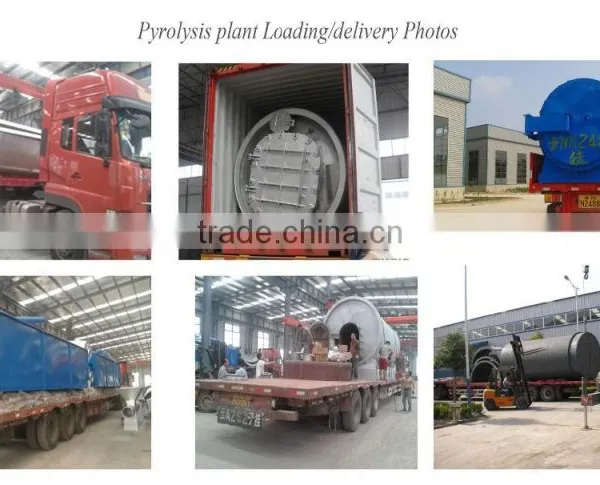

After getting deposit payment , loading plant with15 days
We send engineer to your side for guiding installation for free and training your workers for free
How can our plant be environmetal friendly?
Re:
a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> Waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> Bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
d> Emission controller: there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis
How can we make sure our plant is safe?
Re:
A.)we have many years experience to design and manufacturing plants, it is mature technology
and as days goes by , we have better and better way for plant update.
B.)We have monitoring system in our plant ,everty data can be in control
C)Safety valves can be work in emergency
D.)Auto alarming device also in our system
How can we discharge carbon black ?
first there is a device inside reactor ,carbon will be out of reactor automatic
then there is a carbon discharge machine out of reactor ,the whole slage is in sealing way,carbon discharge in sealing conditiona and automatic, no need labour , no carbon fly in air
