Environmental Friendly Pyrolysis Plant For Tyre Plastic And Rubber Getting Raw Oil
1.Technical Details For Pyrolysis Plant For Tyre Plastic And Rubber Getting Raw Oil
Model | Solid-state capacity(M3) | Liquid state capacity | Daily capacity | Thickness |
2200mm*6000/6600mm | 19 | 9 | 5-6tons | 16mm |
2400mm*6000/6600mm | 22 | 11 | 6-7tons | 16mm |
2600mm*6000/6600mm | 26 | 13 | 8-10tons | 16mm |
2800mm*6000/6600mm | 30 | 15 | 10-12tons | 16mm |
2.Different Material Oil rate For Pyrolysis Plant For Tyre Plastic And Rubber Getting Raw Oil

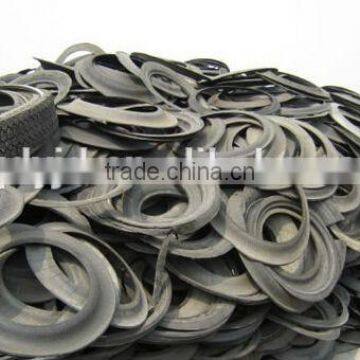

Oil yied/day | Waste tire/ rubber | Big tyres | 45%--50% |
Car tyres | 40% | ||
Bicycles and motorcycles tyres | 30%--35% | ||
Waste plastic | Fishing net | 45%--50% | |
Safety net , farm-oriented film | |||
Conwenient bags , weave bags | 40% | ||
Off cut of recycled paper mill | 20%--30% |

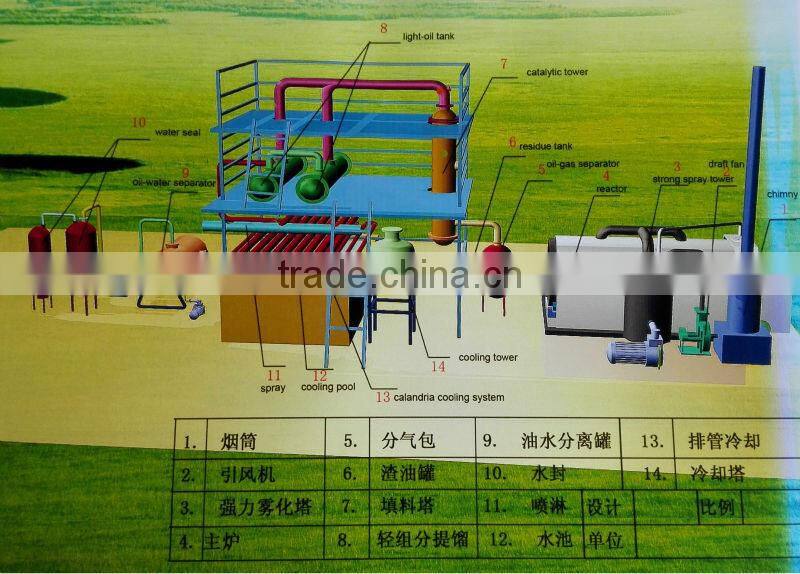

3.Working Scheme Of Pyrolysis Plant For Tyre Plastic And Rubber Getting Raw Oil
4.Major Parts of Pyrolysis Plant For Tyre Plastic And Rubber Getting Raw Oil

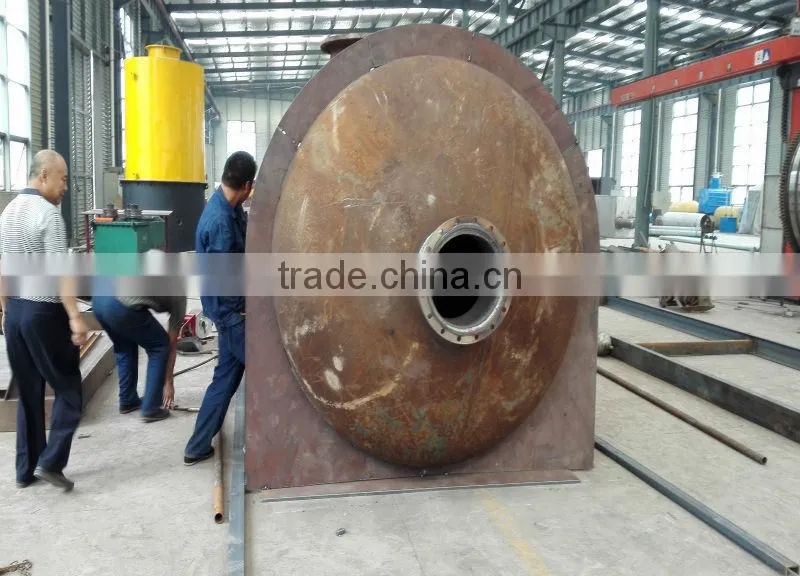

1.Reactor |
2.Catalyst tower |
3.Oil separator |
4.Condenser cooling system |
5.Cooling pool |

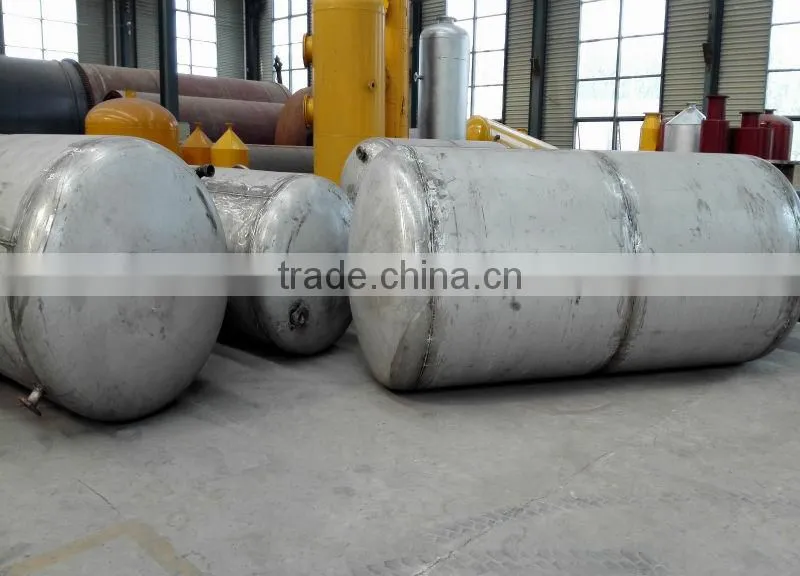

6.Light oil collection tank |
7.Heavy oil collection tank |
8.Vacuum system |
9.Water seal tank |
10.Dust remove disposal device(strong spray tower,draft fan,active carbon absorption tower,purify water pool) |
11.Operation plat form |
12.Power Control cabinet |
13.Other accessory |
5.Final Product And Usage Of Pyrolysis Plant For Tyre Plastic And Rubber Getting Raw Oil
output | usage |
crude oil(45%-55%) | Burn as fuel oil : power plant factory Cement factory Boiler factory and so on
Refine to diesel : Low speed engine like digging machine road roller loading machine and so on |
carbon black(30%-35%) | Make carbon black bars through carbon black pellet machine as fuel
grinding to Increase the mesh of carbon black to make new tyre ,painting and so on |
steel wire(10%) | The steel wire from waste tyre can be re-sale to steel factory |
combustible gas(5%) | recycled to heat the reactor as fuel.save energy |

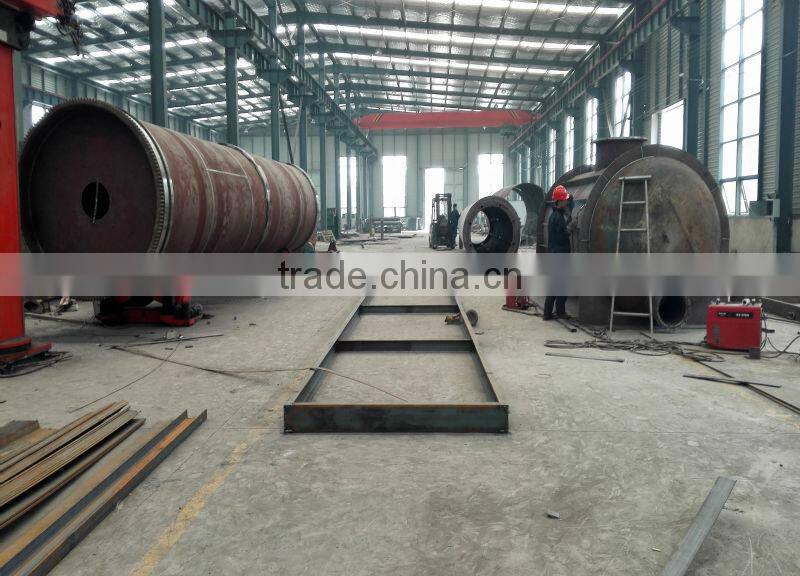

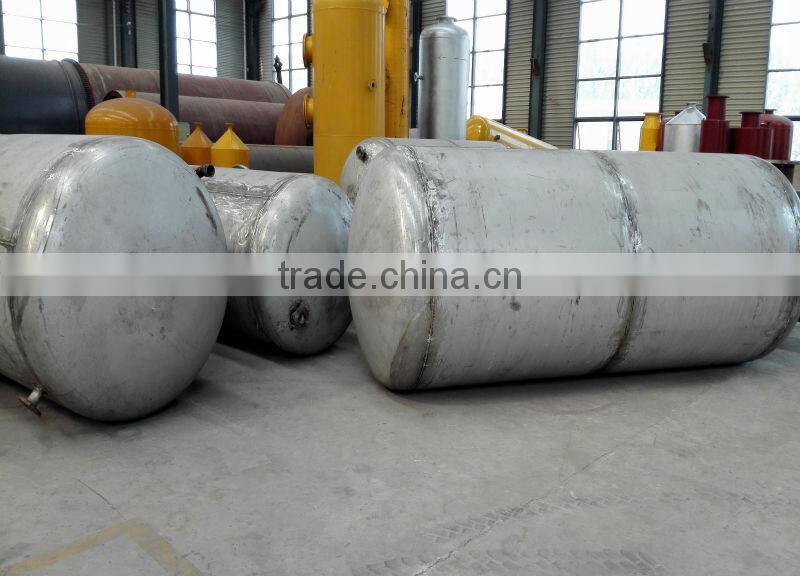

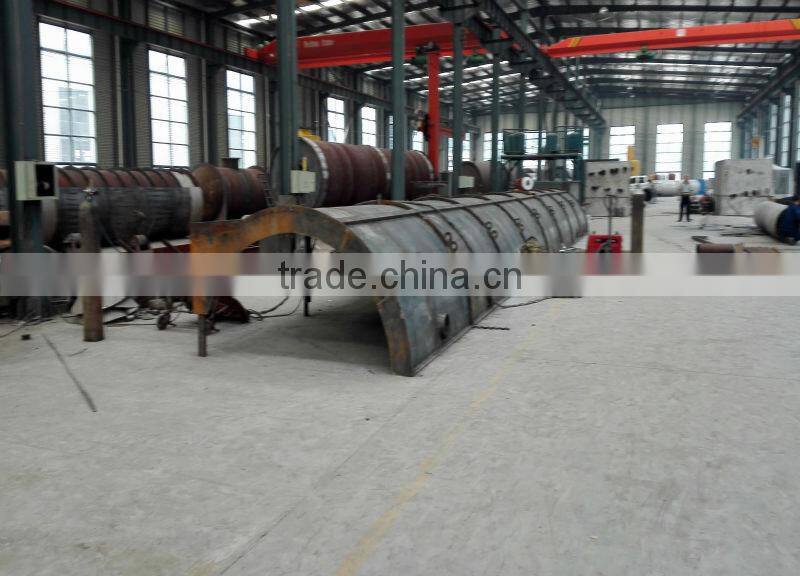

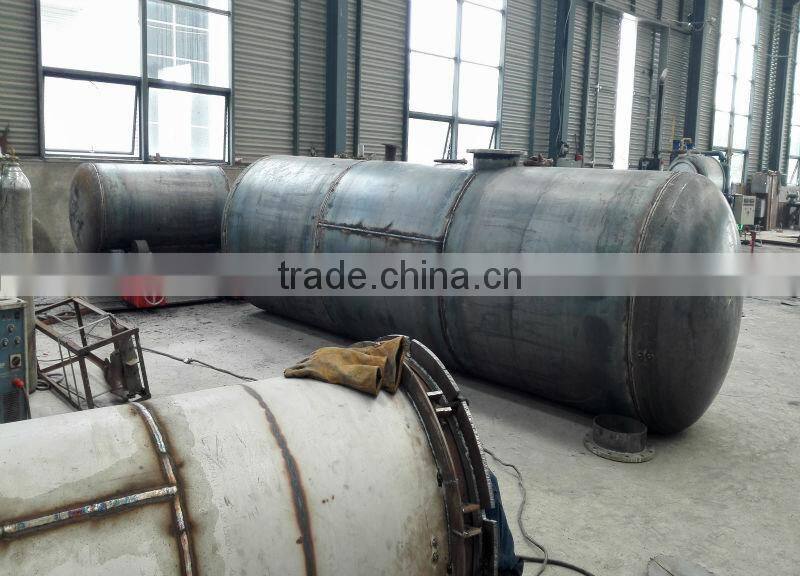

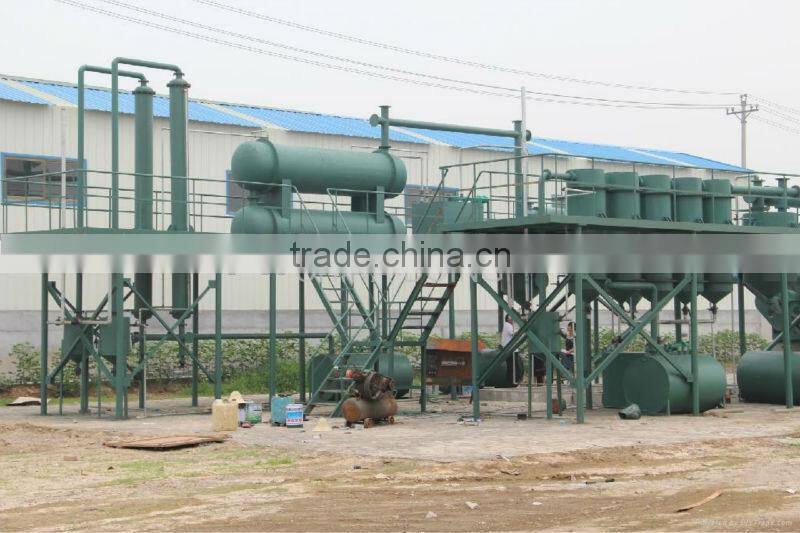

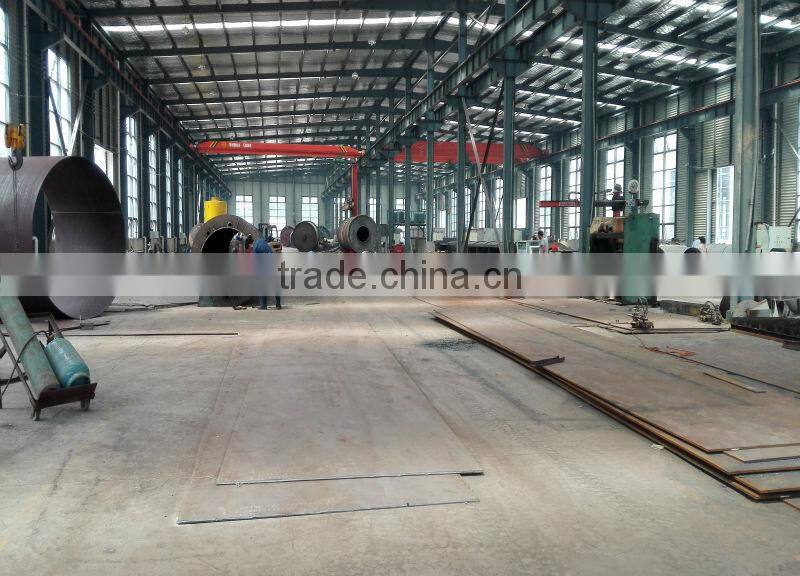

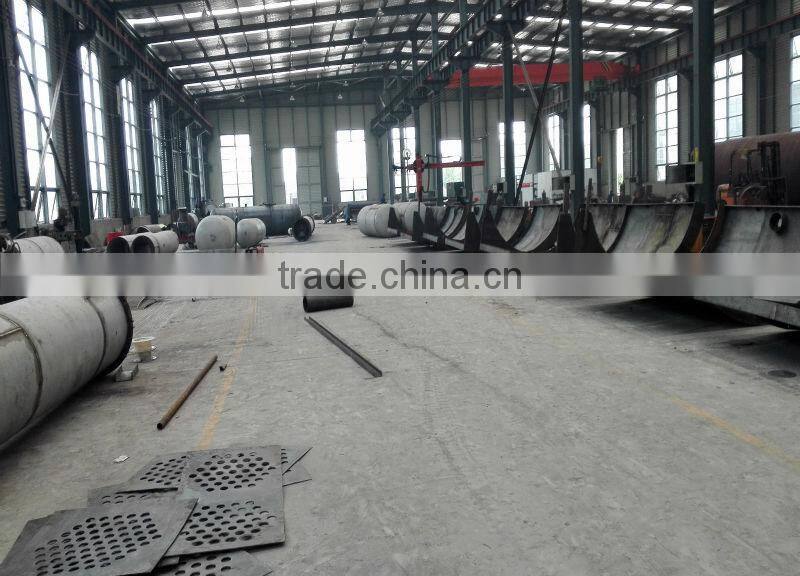

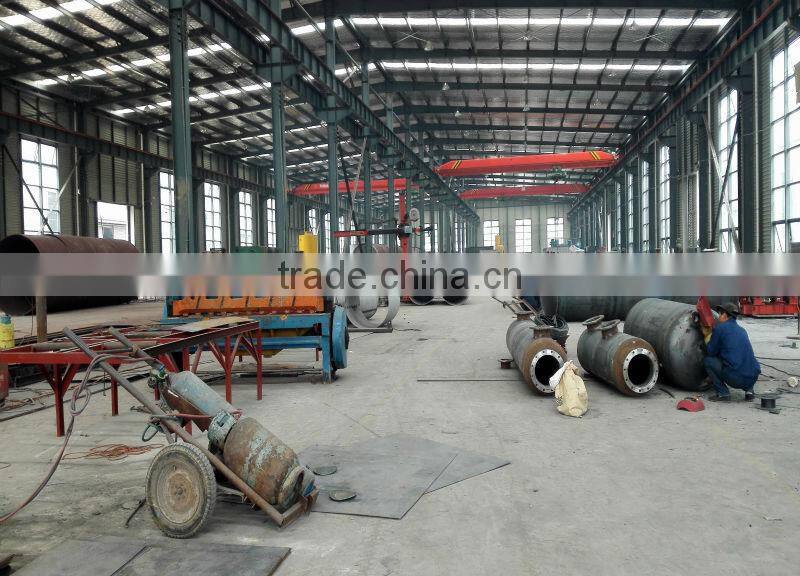

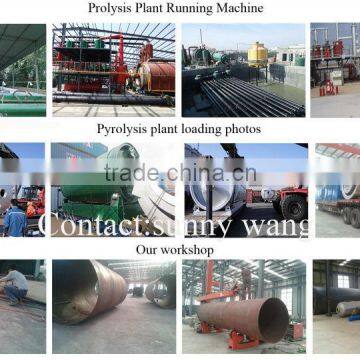

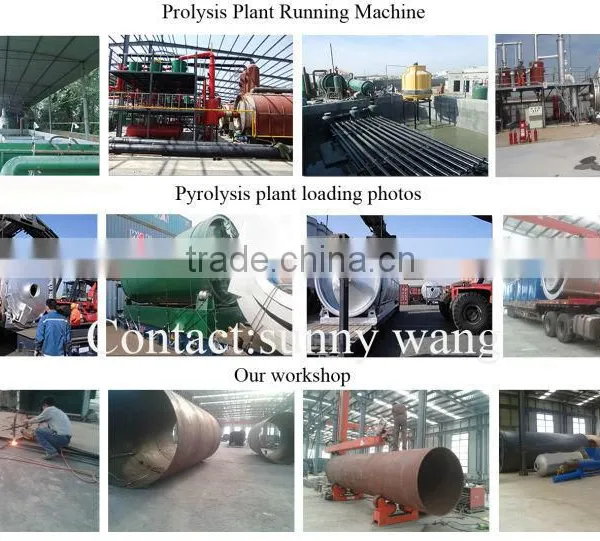

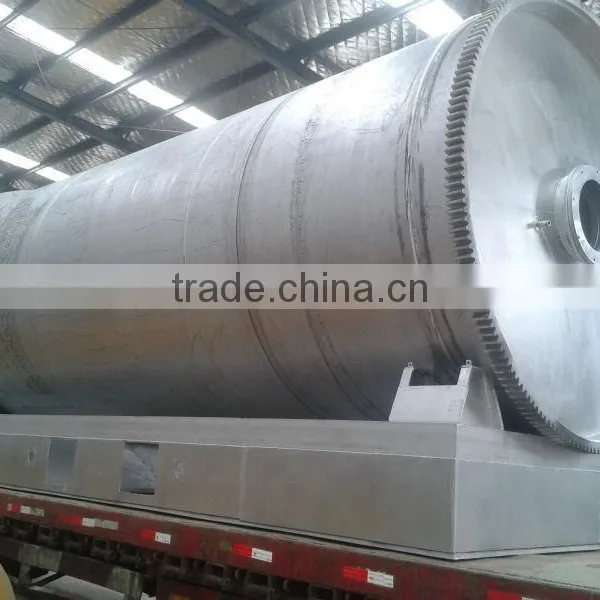

6.Photos Of Pyrolysis Plant For Tyre Plastic And Rubber Getting Raw Oil
7.How can our Pyrolysis Plant Envrionmental Protection?
a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed
the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> Waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> Bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the
tires. It can get rid of bad smell and improve the quality of oil.
d> Emission controller: there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis
8.Delivery and Installtion for Pyrolysis Plant For Tyre Plastic And Rubber Getting Raw Oil
Delivery | 15 days |
Payment term | 30% Advance payment, balance paid before plant loading |
Oversea users | Lebanon,Korea,Poland,Turkey,Mauritius,Brazil,Malaysia, Indonesia,Vietnam,Philippine, Thailand,Pakistan,India |
Installation | Engineer guiding installation for free,buyers offer round-tickets and accommodation |
Warranty period | 2 years warranty, lifetime maintenance |
