HJ 560 High Capacity Wood Pellet Mill With CE Approved Cheap Now

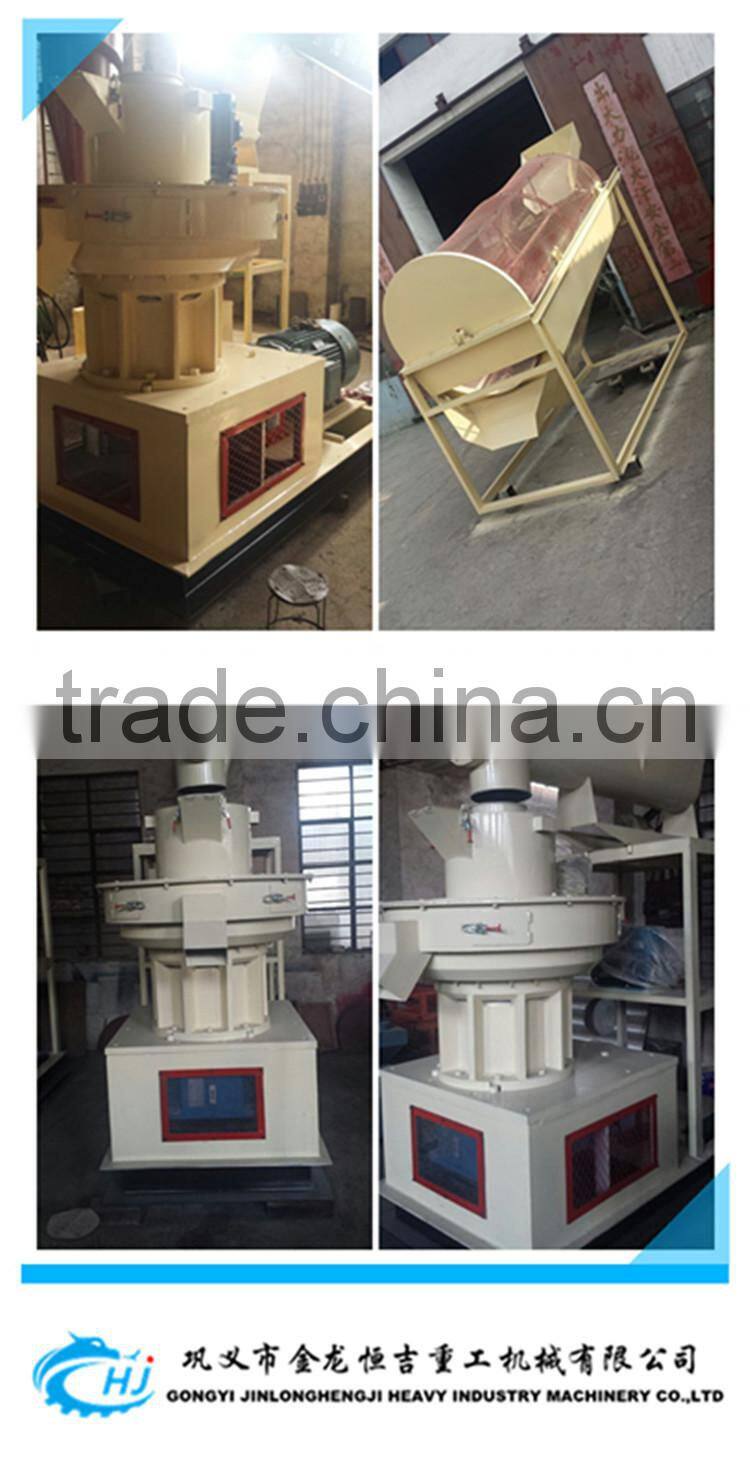

HJ 560 High Capacity Wood Pellet Mill With CE Approved Cheap Now photo-1

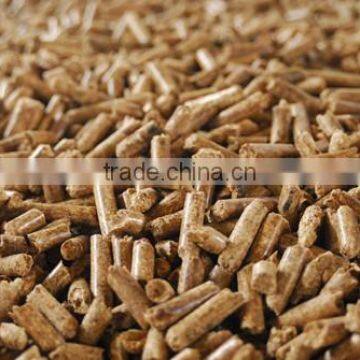

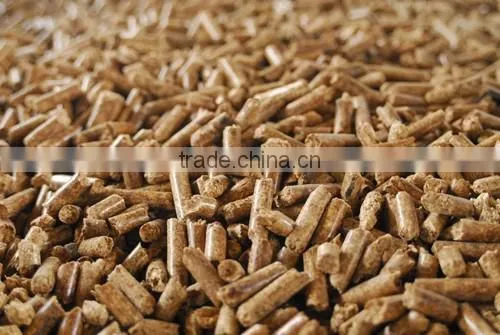

HJ 560 High Capacity Wood Pellet Mill With CE Approved Cheap Now photo-2
US$ 21,800 - 29,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
HengJi
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name HengJi
Model Number HJ560
Voltage 380 v
Power(W) 90 kw
Dimension(L*W*H) 2600*1300*2300 mm
Weight 6.1 tons
Certification CE & ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

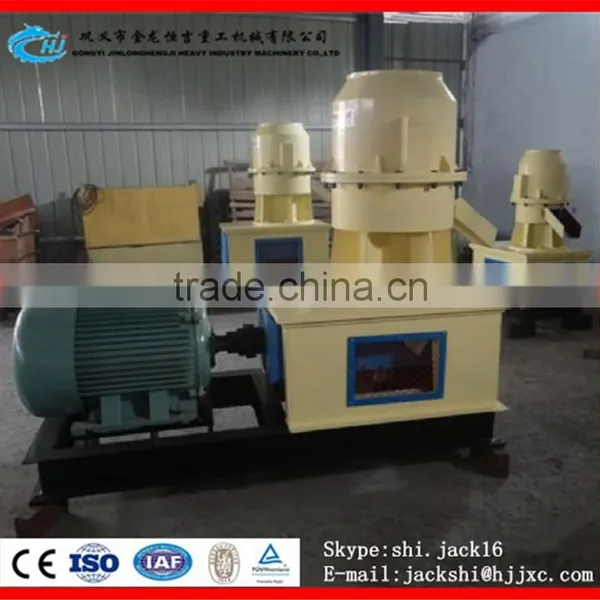

HJ 560 high capacity wood pellet mill with CE approved cheap now

Feature of wood pellet mill

1, HengJi machinery uses vertical feeding.
2, We adopt still molds , the rotation Rotating way, so materials can be distributed equally near by through the centrifugal form,

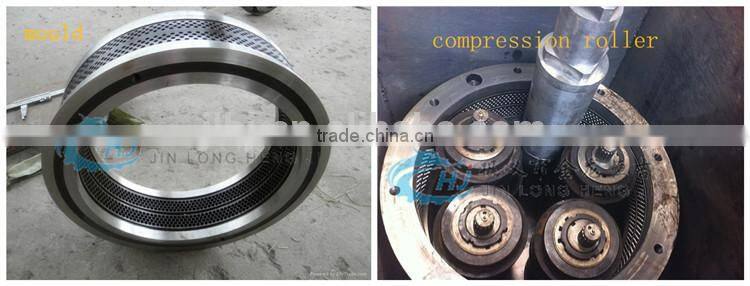

3, As to molds, there are generally two layer which can be dual- used, so it can increase the effectiveness meanwhile reducing costs and saving energy.
4, Circular mold takes the upward form in the structure, which is good for granulating chamber to send out the heat.
5, Ruiding machinery own independent discharging equipment, which absolutely guarantee the forming rate of particles.
6, Independent lubrication system, which can realize non-stop automatic lubrication.

HJ 560 high capacity wood pellet mill with CE approved cheap nowHJ 560 high capacity wood pellet mill with CE approved cheap now

Raw material of wood pellet mill

Sawdust, rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, biomass, sawdust pellet with all kinds of sawdust, rice husk, paddy straw, sunflower stalk, hulls, forestry wastes, wood chips, chemical waste and many other wastes or solid powder materials. especially low-bonding and unformed materials.

Model parameter of wood pellet mill

HJ series wood pellet mill have a style fit you.

Model

Power

(kw)

Capacity

(T/h)

Product spec (mm)

Weight

 (T)

Dimension

(mm)

HJ550

75+3+0.37+0.25+1.5

0.7-1

Φ4-12

6.04

2630x1000x2400

HJ560

90+1.5+0.37+1.5

1-1.5

Φ4-12

6.1

2600x1300x2300

HJ580

160+1.5+0.37+1.5

1.5-2

Φ4-12

7

2900x1300x2400

HJ850

220+3+0.37(0.55)+2.2

2-3

Φ4-12

14.5

3300x1400x3100

HJ880

315+5.5+0.55+1.5+2.2

3-4

Φ4-12

18

3800x1680x3400

HJ1050

450+5.5+0.55+1.5+3

5-6

Φ4-12

23

3980x2060x3450

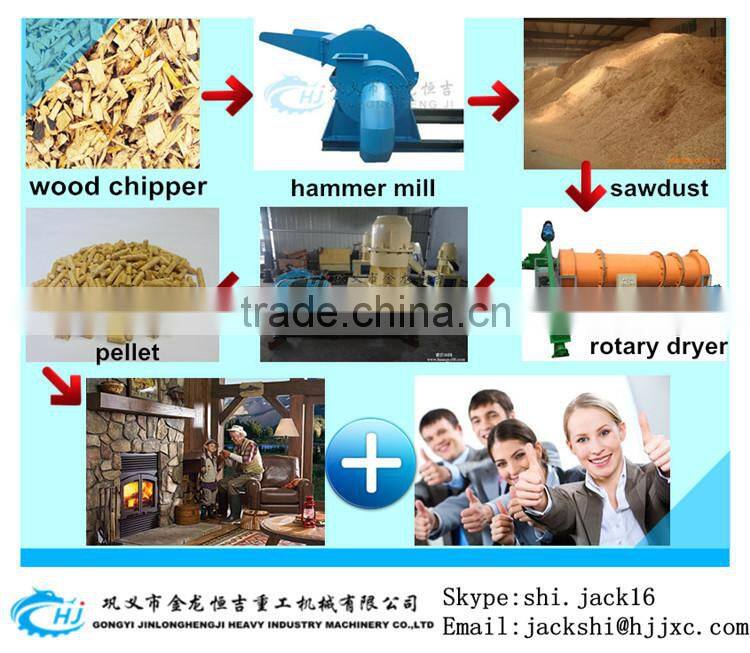

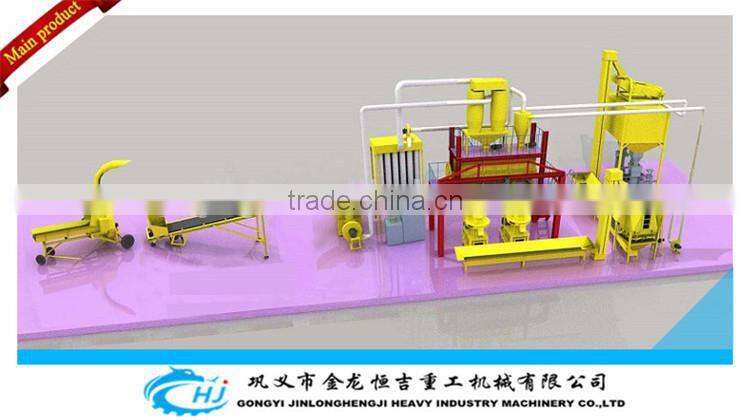

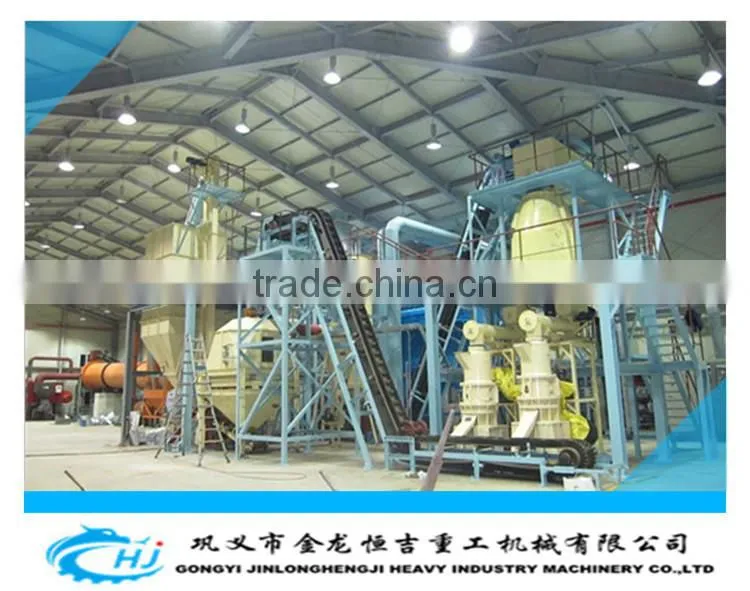

Complete wood pellet production line

HJ 560 high capacity wood pellet mill with CE approved cheap nowHJ 560 high capacity wood pellet mill with CE approved cheap nowHJ 560 high capacity wood pellet mill with CE approved cheap now

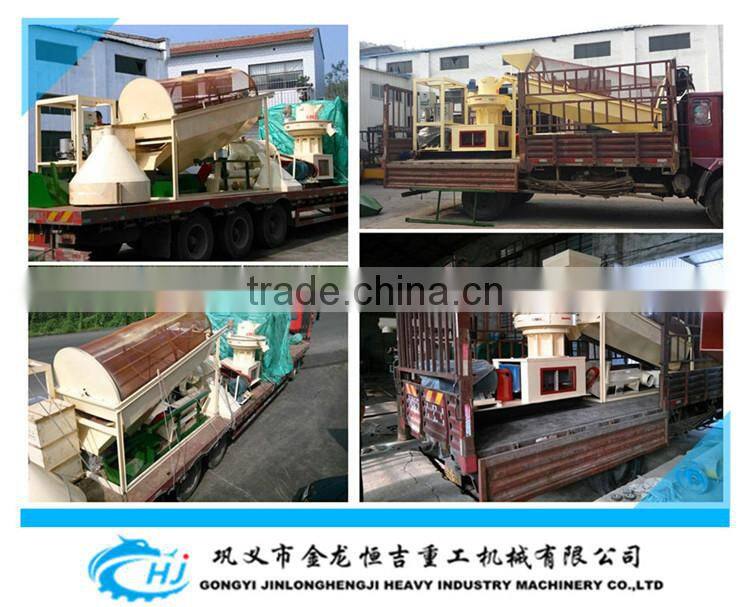

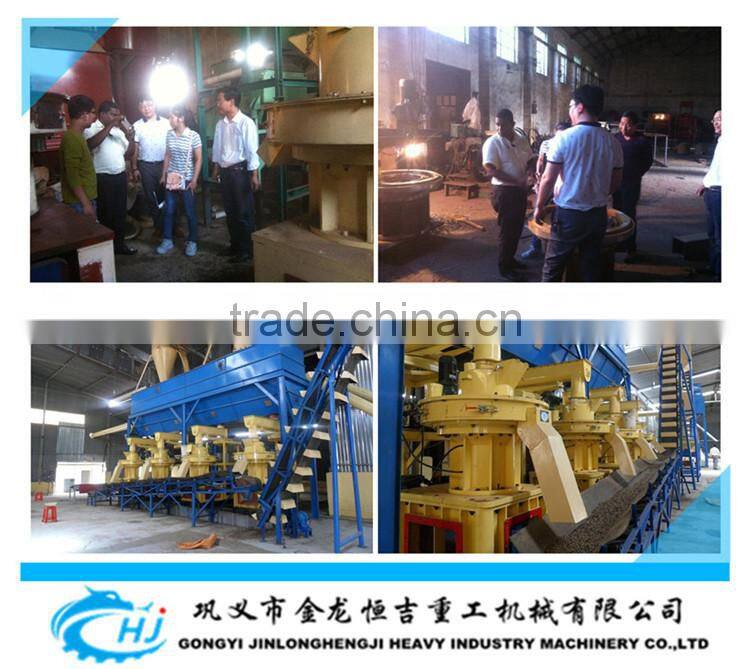

Customer visit and Delivery

HJ 560 high capacity wood pellet mill with CE approved cheap now

HJ 560 high capacity wood pellet mill with CE approved cheap now

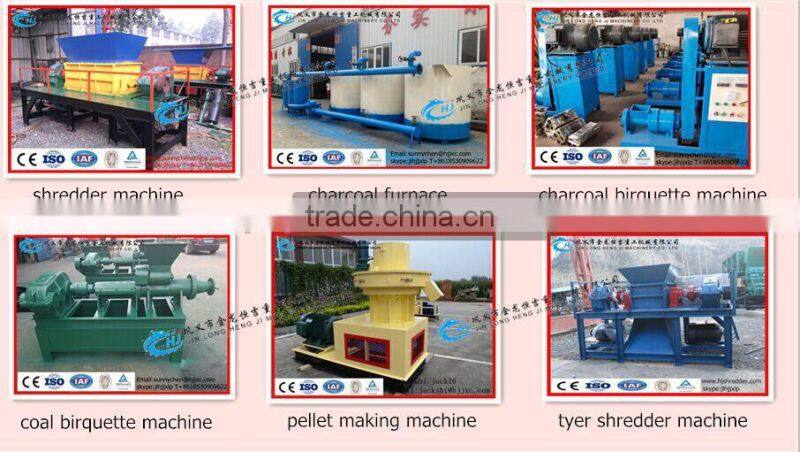

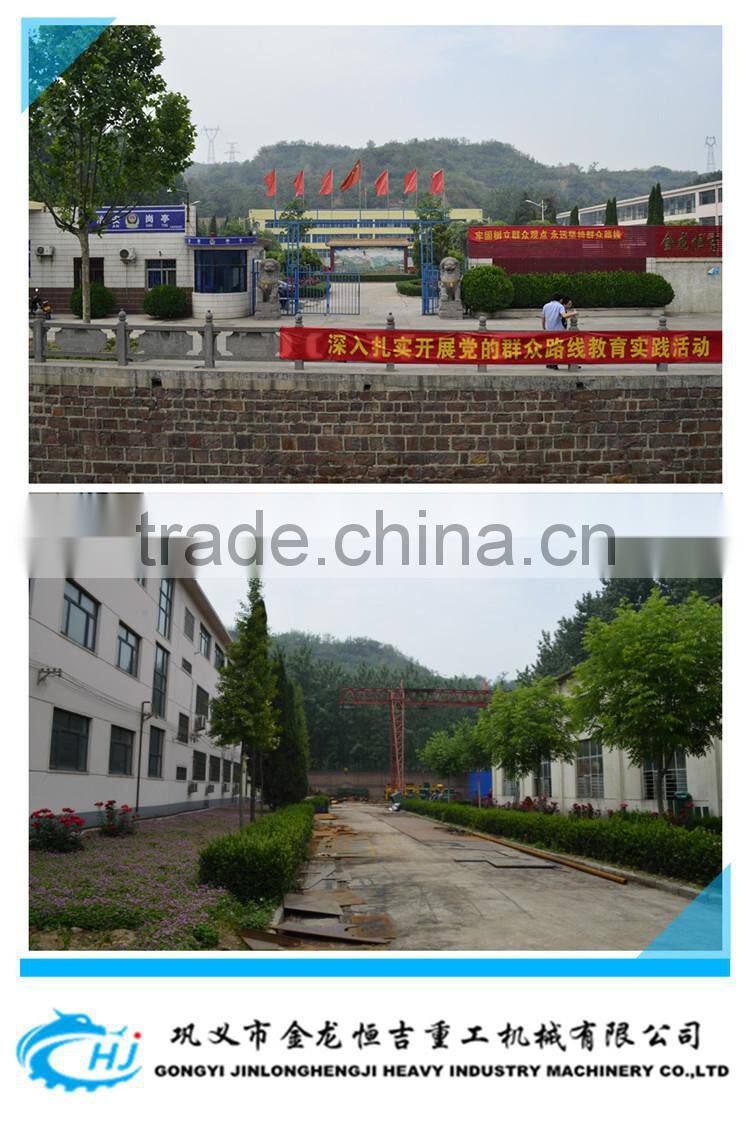

Company Information

HJ 560 high capacity wood pellet mill with CE approved cheap nowHJ 560 high capacity wood pellet mill with CE approved cheap nowHJ 560 high capacity wood pellet mill with CE approved cheap now

Wood pellet mill is hot sale,welcome your inquiry. Preferential prices are often born in communication.

If you have any other questions about our products, you may contact me freely.
