Microwave indursrial food drying equipment/ fruit dryer/Microwave fish Dryer Machine
Tunnel microwaved dryer is a such dryer which is used of microwave to reduce the raw material. Unlike other external heating drying, tunnel microwave dryer can dry the raw material from internal and external at the same time. Using this method, tunnel microwave dryer can save drying time and avoid the raw material becoming metamorphism or coking at the overheat environment. The drying effect is very good, especially for the heat sensitive food.
2. The Working Principles
Microwave dryer fits for application of microwave in scope of packaged food, bottled food, local products, cooked food, spices, dried beef, duck, chicken, fish products etc. Microwave does function on sterilization and preservation to keep its flesh, flavor and tenderness.
Applicable materials:
Nuts, fruits, vegetables, flowers, teas, meats, grains, soy products, sea foods, flours, jams, seasoning/condiments, confectioneries, dairy products, snack foods, pastries, additives, soy proteins, encapsulated foods, pig skin, fish maw etc.
Food Microwave Drying (Dehydration, Heating, Tempering, Thawing, Sterilizing, Puffing )
|
Model |
Working Frequency (MHZ) |
Output power (kw) |
Microwave leakage (MW/cm2)
|
External Dimension (m) |
Installation Area (m) |
Gross Weight (Kg) |
Output of Drying (kg/h) |
Output of Sterilization (kg/h) |
HJMD-F-P-15 |
2450±50 |
15 |
≤3 |
7.0x1.1x1.8 |
9.0x3.5x2.5 |
1600 |
40-60 |
150-165 |
HJMD-F-P-20 |
2450±50 |
20 |
≤3 |
8.0x1.1x1.8 |
10x3.5x2.5 |
2000 |
50-120 |
200-250 |
HJMD-F-P-30 |
2450±50 |
30 |
≤3 |
9.0x1.1x1.8 |
11x3.5x2.5 |
2400 |
65-160 |
300-400 |
HJMD-F-P-40 |
2450±50 |
40 |
≤3 |
10x1.1x1.8 |
12x3.5x2.5 |
2800 |
100-240 |
400-500 |
HJMD-F-P-50 |
2450±50 |
50 |
≤3 |
11x1.1x1.8 |
12x3.5x2.5 |
3200 |
120-300 |
500-600 |
HJMD-F-P-80 |
2450±50 |
80 |
≤3 |
14x1.1x1.8 |
15x3.5x2.5 |
5000 |
200-480 |
800-900 |
HJMD-F-P-100 |
2450±50 |
100 |
≤3 |
16x1.1x1.8 |
17x3.5x2.5 |
6000 |
240-600 |
1000-1200 |
|
Working power: 380V, 50Hz; The above specifications for reference only, some will be changed according to your customized demand. | ||||||||

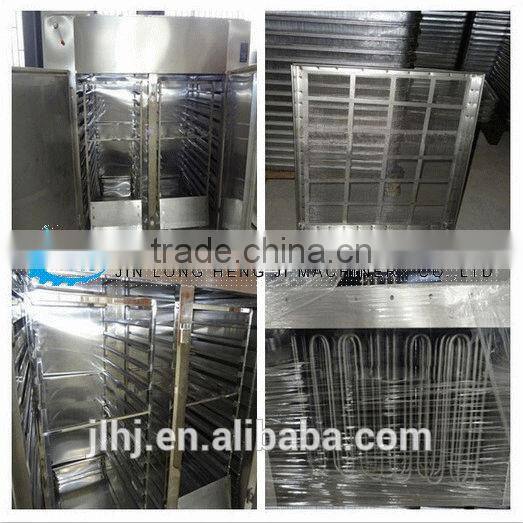

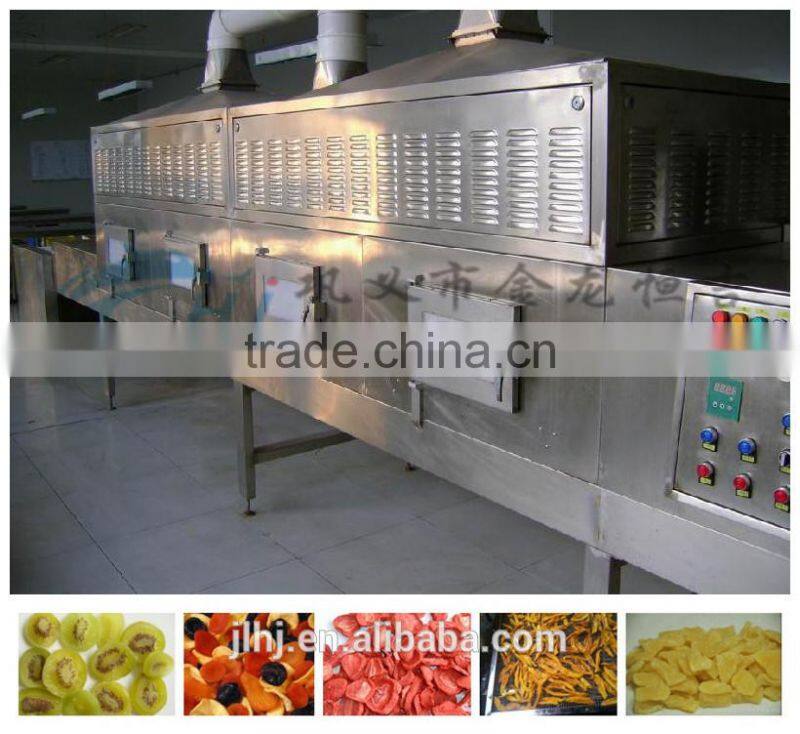

The Pictures of Microwave Tunnel Dryer:
Welcome to visit our factory! We will provide you our best
equipments at the reasonable price to meet your requirements.
