Specifications
Industrial Rotary Drum Dryer/Cylinder Dryer/High humidity building material drying machineAverage output
Large Capacity
Industrial Rotary Drum Dryer/Cylinder Dryer/High humidity building material drying machine hot sale
Product Description:
Rotary drum dryer is your best choice to dry biomass materials of high moisture content and produce high quality biomass fuel. Biomass materials go through dryer can improve biomass fuel efficiency of 5~15% and lower down emission. It can be used for drying a wide range of biomass materials such as alfalfa, straw, sawdust, marigold, wood shavings, manioc waste, bagasse, colza cake and leaves, etc. Featured by low energy consumption and high drying efficiency, it is widely employed in chemical industry, metallurgy, building and mine digging, etc. The heat efficiency reaches 80% which is much higher than other drying equipment.
Working principle:
The body of the drum dryer is slightly tilted and rotary drum body. The working principle of the device are as follows: wet material from the upper left to join, through the internal cylinder with hot air or heat within the tube wall effectively contact was dry, dry products from the lower part of the right end of the collection. In the process of drying, the material with the help of the cylindrical turning slowly, under the action of gravity move from high end to low end. The cylinder body wall with consequent copy board (or similar device), it constantly copied the materials and shed, make material thermal contact surface increases, in order to improve the drying rate and promote material to move forward. Dry heat carrier is commonly used in the process of hot air, flue gas, or vapor, etc. If the heat carrier, such as the hot air and flue gas) direct contact with the material, after dryer, usually with a cyclone gas entrainment in the capture, fine grained material waste air emptying after cyclone. Drum dryer is one of the oldest drying equipment, is still widely used in metallurgy, building materials, chemical industry, etc.
Structure of Rotary Drum Dryer:
Biomass rotary drum dryer is horizontal type drying device.
Biomass rotary drum dryer is mainly composed of heating furnace, feeder machine, rotating tube, cyclone separator and draft fan.

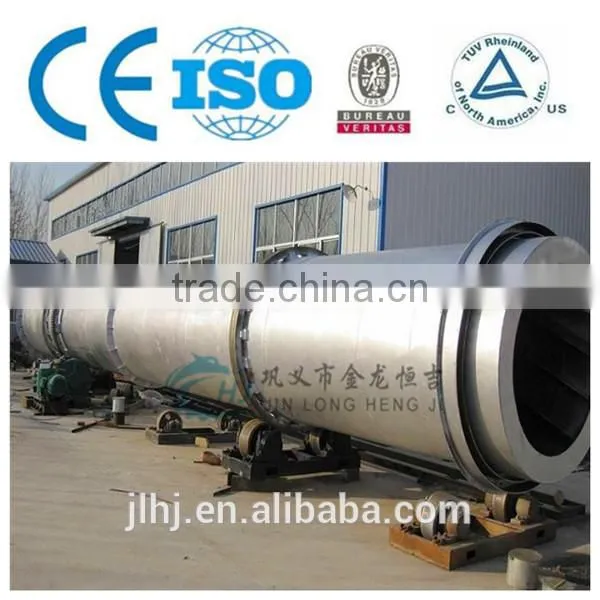

The pictures od Rotary Drum Dryer:
The technical parameter of Rotary Drum Dryer:
Our Services:
1>Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>Sale services: Servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>After-sale services: Faithfulness
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4> We provide oneyearwarranty to make sure your machine runs consistently. We always offering life long services and provide spare parts for a long term, and repair main parts under right using for free in oneyear.
Why you should choose our Rotary Drum Dryer:
1 With experience for more than 30 years,have professional technical and quality control teams for you.
2 We have sold to America,Canada,Australia,Russia,Iraq,Qatar,Egypt,Australia.Brazil,India etc,have big market share.
3 Certificated by CE,ISO,BV.
4.As a manufacture,factory direct sell, without any middleman or trading company between us.
5.Professional Pre-sales service and After-sales service for you
