Automatic Paint Aerosol Can Production Line
- Shang Hai or Jiu Jiang
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Chemical, Other, Chemical, chemical ,aerosol can | |
| Packaging Type | Cans | Packaging Material | Metal | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380v | Power | 1.1kw | |
| Place of Origin | Jiangxi, China | Brand Name | Yongxin | |
| Model Number | GT1B5 | Dimension(L*W*H) | 1500*1600*1105MM | |
| Weight | 1400KG | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Automatic paint aerosol can production line1. original manufacture
2.1 year warranty
15 years experience,
CE certificated.
Specification for Automatic paint aerosol can production line

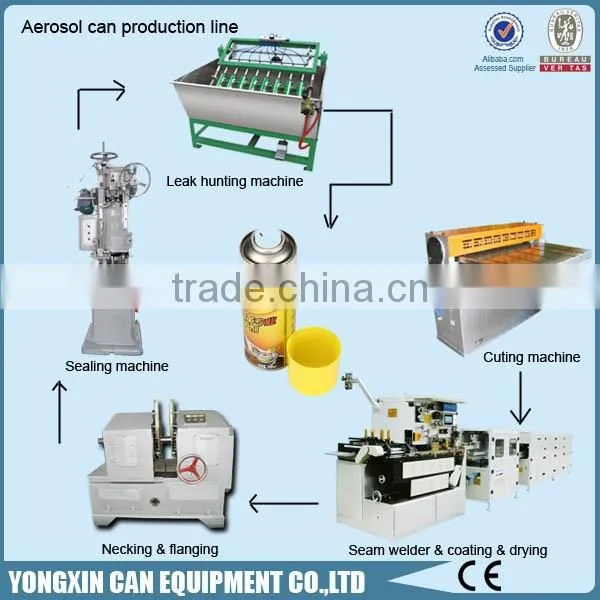

Main equipments for aeorol can making production line:
1. GT1B5 gang slitter
for steel or other metal shear volume iron,for the canning jar-cover or cans.
The main technical parameters:
Adaptability:Max.Sheet Thickness | 0.4mm |
Max.Sheet Width | 1050mm |
Min.Sheet Width | 44mm |
Using Motor | 1.1kw |
Net Weight | 1400kg |
Dimension | 1500*1600*1105mm |

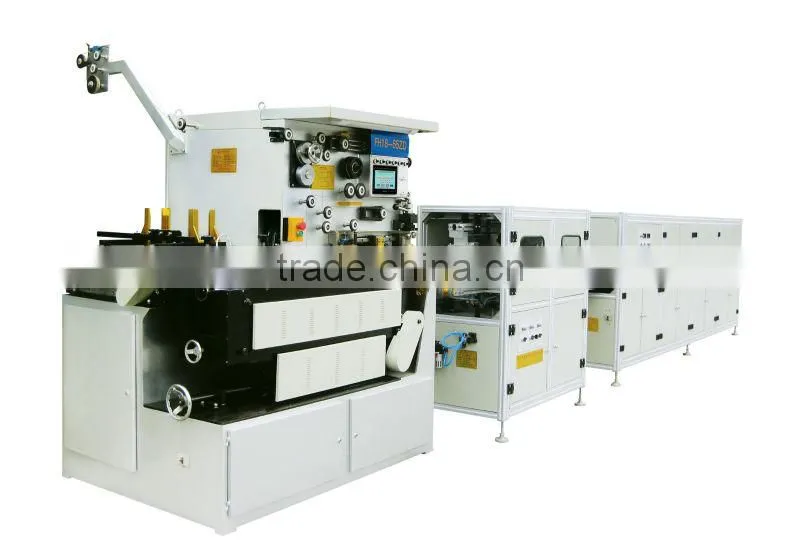

2. FH18-65ZD Automatic tin can making machine prodcution line
The main technical parameters:
Linear rate of welding | 6-26m/min |
Production capability | 40~100Cans/min |
Applicable can diameter | Φ65~Φ180mm |
Applicable can height | 60~280mm |
Applicable material | Tinplate steel-based |
Applicable material thickness | 0.2~0.35mm |
Seam welding landing | 0.4mm 0.6mm |
Seam point distance | 0.5-0.8mm |
Applicable copper wire diameter | Φ 1.38mm Φ 1.5mm |
Cooling water | Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:10L/min |
Compressed air consumption | 600 L/min |
Pressure of compressed air | 0.5Mpa-0.7Mpa |
Power | 380V±5% 50HZ |
Total power | 40KVA |
Dimension | 1750×1100×1800mm |
Weight | 1800Kg |

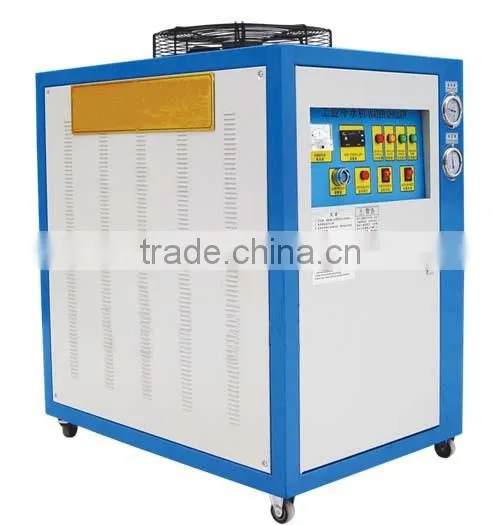

3.Industrial chiller
With welding seam supporting into line.
4. GT3B12 necking and flanging machine
The main technical parameters
| Model: | 3B12 | |||
| Productivity: | 60~80 cans/ min | |||
| Diameter: | 40~100mm | |||
| Power: | 2.2kw | |||
| Weight: | 1500kg | |||
| Dimension: | 700x1700x1300mm | |||

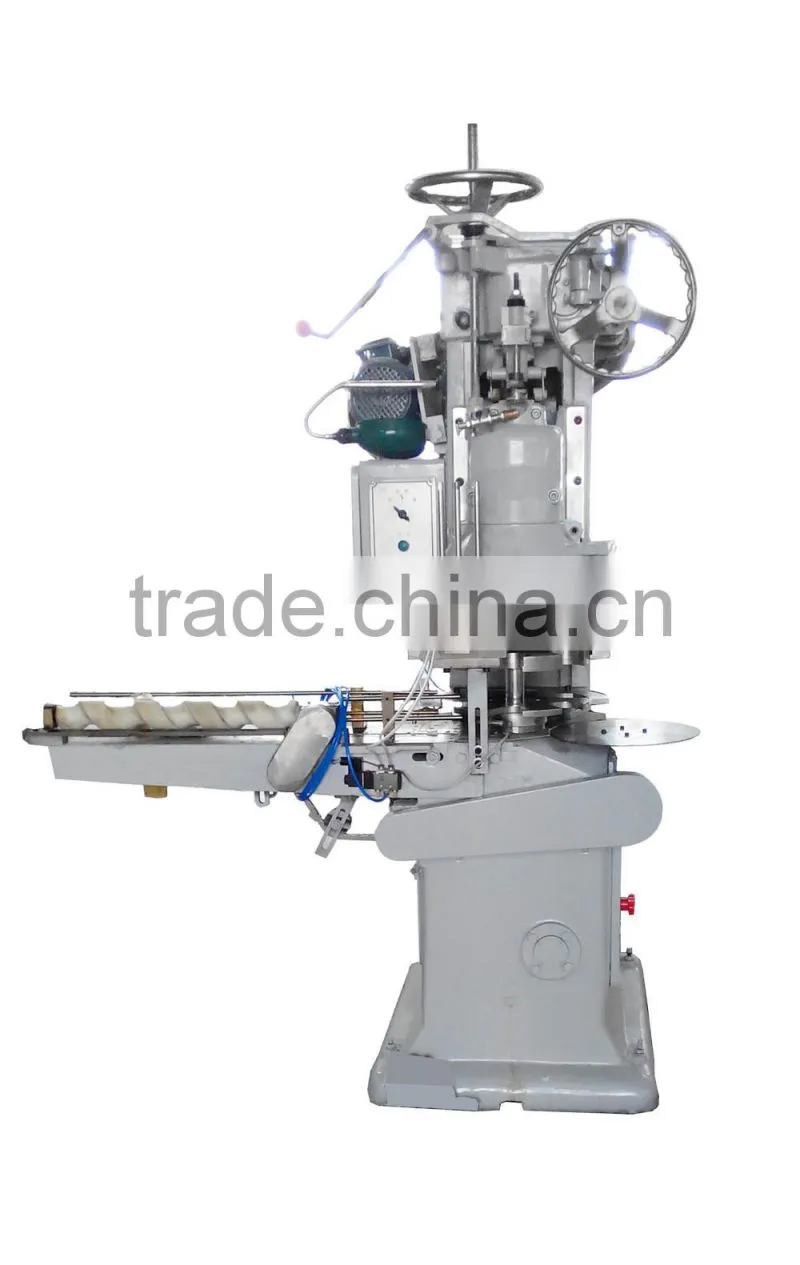

5. GT4B2B Automatic sealing machine
The main parameters:
| Model: | GT4B2B | |||
| Capacity: | 42cans/min | |||
| Diameter: | 52-105mm | |||
| Maximum Height: | 52-280mm | |||
| Power: | 1.5kw | |||
| Net weight: | 1200kgs | |||
| Dimension: | 1210×1460×1900mm | |||

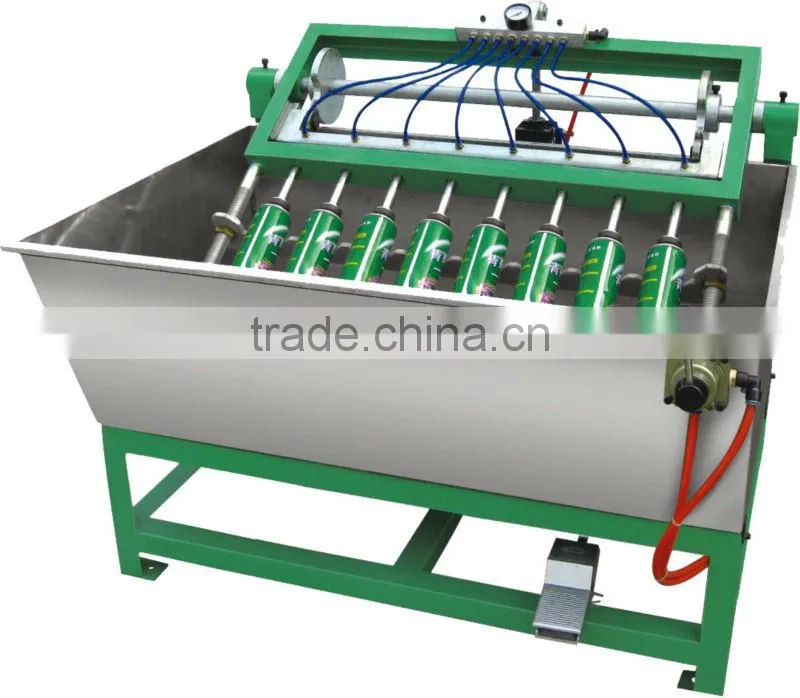

6. Leak hunting machine
The main technical parameters:
| model | JL-8 |
| Diameter | 52-66mm |
| Maximum Height | 100-320mm |
| Capacity | 2-20cans/min |
| Consumption of compressed air | 1-3m3/min |
| preesure | 1Mpa |


FAQ
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:Is there any spare parts for free?
A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are
very durable.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
If you want to know more information about this machine,Please contact us!
