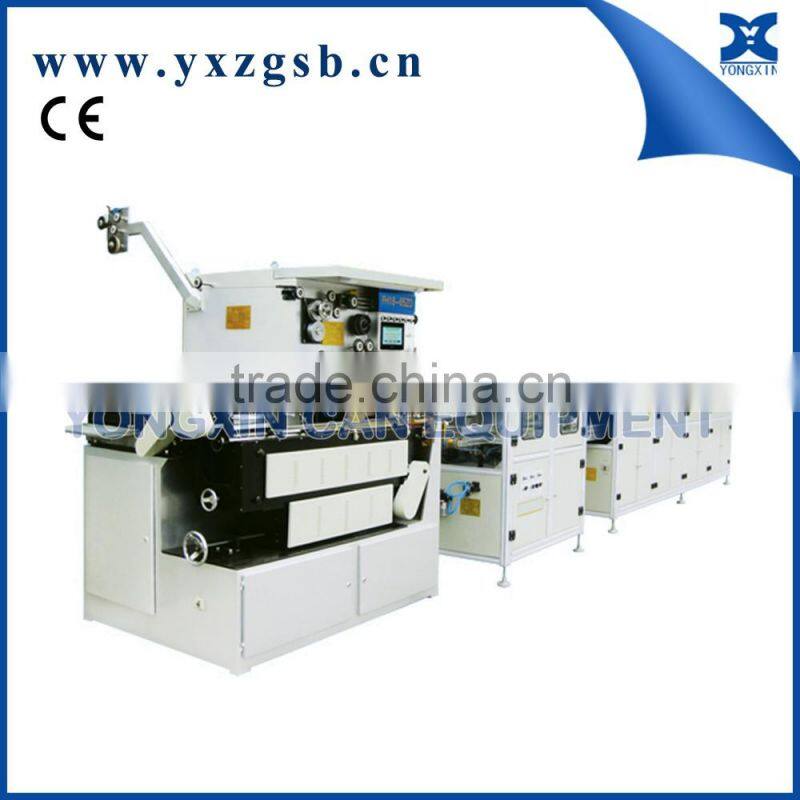

Semi Automatic Seam Welding Machine/Tin Can Machine

FOB Price

US$ 50,000 - 53,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage, Chemical, Food
Packaging Type	Case	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380v	Power	40kw
Place of Origin	Jiangxi, China	Brand Name	yongxin
Model Number	GT-FH18-90ZD	Dimension(LWH)	175011001800mm
Weight	1800kg	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Specification

Mode	FH18-90ZD
Linear rate of welding	6-21m/min
Production capability	15~38Cans/min
Applicable can diameter	Φ220~Φ300mm
Applicable can height	250~450mm
Applicable material	Tinplate steel-based
Applicable material thickness	0.25~0.42mm
Seam welding landing	0.8mm 1.0mm 1.2mm
Seam point distance	0.5-0.8mm
Applicable copper wire diameter	1.5mm 1.7mm
Cooling water	Temperature 12~18°C Pressure:0.4-0.5Mpa Discharge 12L/min
Compressed air consumption	400 L/min
Pressure of compressed air	0.5Mpa-0.7Mpa
Power	380V±5% 50HZ
Total power	63KVA
Packed Dimension	2300x1800x2000mm
Packed Weight	2500Kg

Features

1. PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

2. Low voltage apparatus are produced by SCHNEIDER.

3. IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

4. OMRON is our sensor supplier.

5. HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.

Can making technology process

Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling

Applicable types of cans

aerosol can ,food cans,beverage can ,round can,quadrate bucket etc.
