Home Semi-automatic Machine to Make Soap
US$ 1 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solid Bath Soap Production MachineUS$ 1 - 30,000MOQ: 1 Set -
Daily Use Bath Soap Production LineUS$ 1 - 30,000MOQ: 1 Set
-
Toilet Soap Making ExperimentUS$ 1 - 30,000MOQ: 1 Set
-
Home and Hotel Soap Line MachineUS$ 7,500 - 8,500MOQ: 1 Set
-
Home and Hotel Soap Line MachineUS$ 7,500 - 8,500MOQ: 1 Set
Condition
New
Application
Chemical
Packaging Type
Case
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
1.1
Place of Origin
Jiangxi, China
Brand Name
YONGXIN
Model Number
XD-20
Dimension(L*W*H)
600*400*1220m
Weight
500KG
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

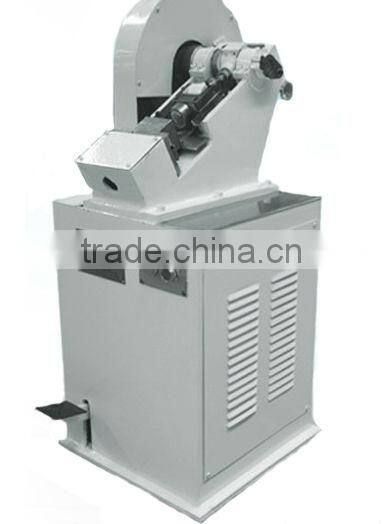

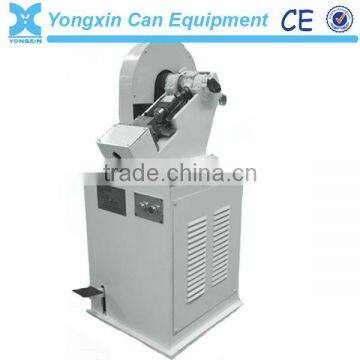

XD-20 Soap Stamping machine is designed to press strip soap into cakes in the process of manufacturing small sized toilet soaps
Product Description
The new soap making machinery
Major Technical References:
| Punch Frequency | 120 times per minute |
| Size of Soap | 20g-60g |
| Capacity | 20 times per minute |
| Punch Stroke | 52mm |
| Power of motor | 1.1kw |
| Size | 600*400*1220m |
soap noodles ( the soap raw material)
Production Flow Chart(capacity:350Kgs/Hour)
Equipments For Soap Making Production Line

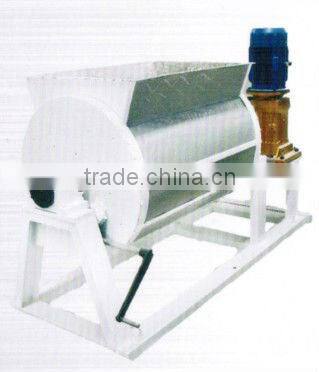

1. Soap mixing machine
| Model | S-125 | |||
| Mixing time: | 4-6 minutes | |||
| Mixing capacity: | 150kgs/time | |||
| Mixing Speed: | 32r/min | |||
| Pressure: | 0.4-0.8Mpa | |||
| Motor power: | 7.5kw | |||
| Dimension: | 2300×800×1400mm | |||
2. Soap grinding machine
| Model | S260 | |||
| Diameter of roller: | 260mm | |||
| Length of roller: | 675mm | |||
| Power: | 7.5kw | |||
| Rate of roller speed: | 1:03:09 | |||
| Motor power: | 7.5kw | |||
| Dimension: | 1650×1350×1100mm | |||
| Weight: | 2318kgs | |||

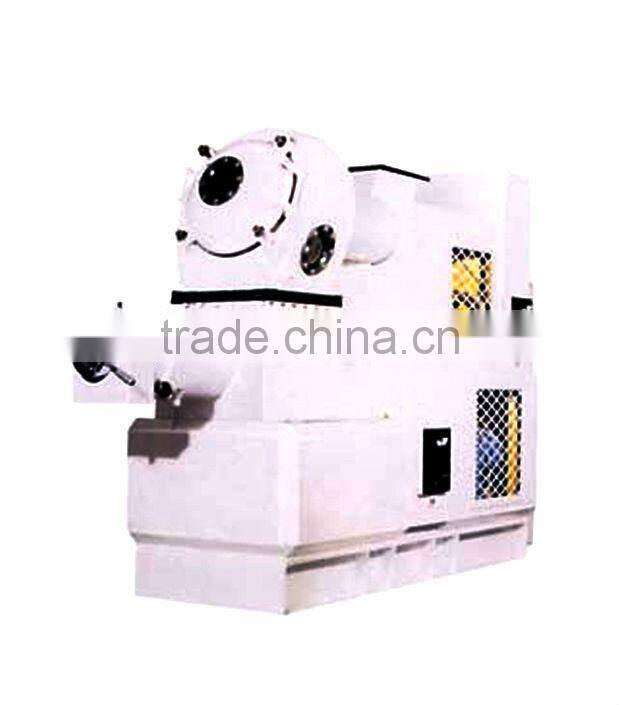

3.Soap vacuum plodder machine
| Model: | XT-500 | |||
| Capacity: | 500kgs/hour | |||
| Diameter of screw: | 200mm | |||
| First speed&Power: | 15rpm, 11kw | |||
| Second speed&Power: | 8-16rpm,7.5kw | |||
| Vacuum pump power: | 2.2kw | |||
| Dimension: | 3200×1400×2500mm | |||
| Weight: | 4000kgs | |||
4.Conveyor
| Model: | XD-P04 | |||
| Capacity: | 500-1000kgs/h | |||
| Gradient: | ≤40° | |||
| Motor power: | 1.5kw x 4 = 6kw | |||
5.Soap stamper
| Model: | XD-120 | |||
| Capacity: | 80-120pcs/min | |||
| soap's weight | 80g-100g | |||
| Motor power: | 3kw | |||
| Dimension: | 1500×950×1300mm | |||
| Weight: | 1750kgs | |||
6.plastic Packing machine(with date marked)
| Model: | SZ320D | |||
| Capacity: | 50-120pcs/min | |||
| Max Packing width: | 330mm | |||
| Packing Dimension: | L 150-330mm/ W 50-160mm | |||
| Motor power: | 220V 50/60hz 2.6kw | |||
| Weight: | 700kgs | |||
| Remarks : | optional date labeling device | |||
Company Information
Our Team
If you need more information about our machine,Please contact us!
