Low Price Soap Machine for Toliet Soap
small solid soap making machine process
soap noodles ( the soap raw material)
Production Flow Chart(capacity:350Kgs/Hour)
Equipments For Soap Making Production Line
1. Soap mixing machine
| Model | S-125 | |||
| Mixing time: | 4-6 minutes | |||
| Mixing capacity: | 150kgs/time | |||
| Mixing Speed: | 32r/min | |||
| Pressure: | 0.4-0.8Mpa | |||
| Motor power: | 7.5kw | |||
| Dimension: | 2300*800*1400mm | |||

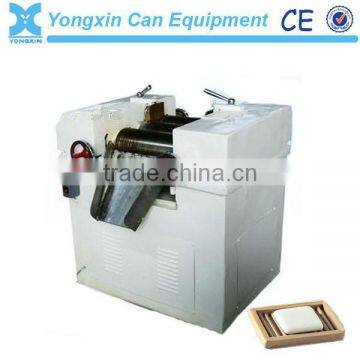

2. Soap grinding machine
| Model | S260 | |||
| Diameter of roller: | 260mm | |||
| Length of roller: | 675mm | |||
| Power: | 7.5kw | |||
| Rate of roller speed: | 1:03:09 | |||
| Motor power: | 7.5kw | |||
| Dimension: | 1650×1350×1100mm | |||
| Weight: | 2318kgs | |||
3.Soap vacuum plodder machine
| Model: | XT-500 | |||
| Capacity: | 500kgs/hour | |||
| Diameter of screw: | 200mm | |||
| First speed&Power: | 15rpm, 11kw | |||
| Second speed&Power: | 8-16rpm,7.5kw | |||
| Vacuum pump power: | 2.2kw | |||
| Dimension: | 3200*1400*2500mm | |||
| Weight: | 4000kgs | |||
4.Conveyor
| Model: | XD-P04 | |||
| Capacity: | 500-1000kgs/h | |||
| Gradient: | ≤40° | |||
| Motor power: | 1.5kw x 4 = 6kw | |||
5.Soap stamper
| Model: | XD-120 | |||
| Capacity: | 80-120pcs/min | |||
| soap's weight | 80g-100g | |||
| Motor power: | 3kw | |||
| Dimension: | 1500×950×1300mm | |||
| Weight: | 1750kgs | |||
6.plastic Packing machine(with date marked)
| Model: | SZ320D | |||
| Capacity: | 50-120pcs/min | |||
| Max Packing width: | 330mm | |||
| Packing Dimension: | L 150-330mm/ W 50-160mm | |||
| Motor power: | 220V 50/60hz 2.6kw | |||
| Weight: | 700kgs | |||
| Remarks : | optional date labeling device | |||




Deliver time:25 days.
Warranty:One year! If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
After-sale Service:
a.Technical support online service provided.
b.Technical files service provided.
c.On-site training service provided.
d.Spare parts replacement and repair service provided
