| Specification |
| Product Name | Tinplate Slitter |
| Model | GT1B5 |
| Item Condition | Brand-New |
| Operation Mode | Semi-Automatic |
| Main Color | Silver |
| Main Frame Material | High Strength Steel for Tinplate Slitter |
| Slitting Method | Circular Knife |
| No. of Knifes (Slitting Die) | 8-Group |
| Knife Material (Slitting Die) | High-grade Alloy Tool Steel (Cr12MoV) |
| Knife Adjustable | Horizontal Sliding |
| Max. Sheet Thickness: | 0.4mm |
| Max. Sheet Width: | 1050 - 1300 (mm) |
| Min. Sheet Width: | 55mm |
| Standard | IEC60947, IEC34-1(Electrical), IEC72-1(Mechanical) |
| Construction Size | 1500 x 1600 x 1105 (mm) |
| Feeding Table Size | 720 x 1300 (mm) |
| Safety | Machine Fully Guarded |
| Usage | Tinplate Slitting for Canmaking |
| Motor Power: | 1.1kw = 1.5HP |
| Motor Rotation Speed | 900 RPM |
| Power Supply Required | 400V-50/60Hz 230V 60Hz Three-Phase |
| Frequency | 50/60Hz |
| Net Weight: | 1100kg |
| No. of Phase | 3-Phase power supply |
| Capacity: | Depends on speed of artificial Feeding |
| Lead time: | 2 weeks |
| Warranty: | One Year for parts from shipping date |
| Motor | SIEMENS |
| Electrical System | Schneider |
| Material of Knife | High-alloy steel (Cr12MoV) |
| Packaging | Plywood Case (Standard Export Packaging) |
| Optional Extra | Grinding Machine |
| Operator Manual & Instruction | DVD supplied |
| Features |
1. Operation:
For slitting of tinplates into strips by rotary action of knives (cutters). Feeding is manual. Sheet one by one is to be placed on the feed table and to be pushed into the cutters with one side of the sheet all the time touching the side ledge which is preset at right angles to the cutter shafts.
2. Change over and Setting:
Cutters are mounted on specially designed holders which can slide on the cutter shaft to desired position. For firmly gripping to the cutter shafts, the holders are provided with gripper rings which can be tighted with screws provided for the purpose. The provision of gripper rings eliminates the screws coming in contact with the cutter shafts and thereby chances of damage to cutters is avoided. Precisely manufactured cutter shafts, holders and cutters permit quick change over for different strip widths.
3. Main body: Fabricated in one piece construction. All bores and other machining carried out on precision horizontal boring machine.
Feed table: made of cast iron is machined to have smooth finish firmly fitted to the main body.

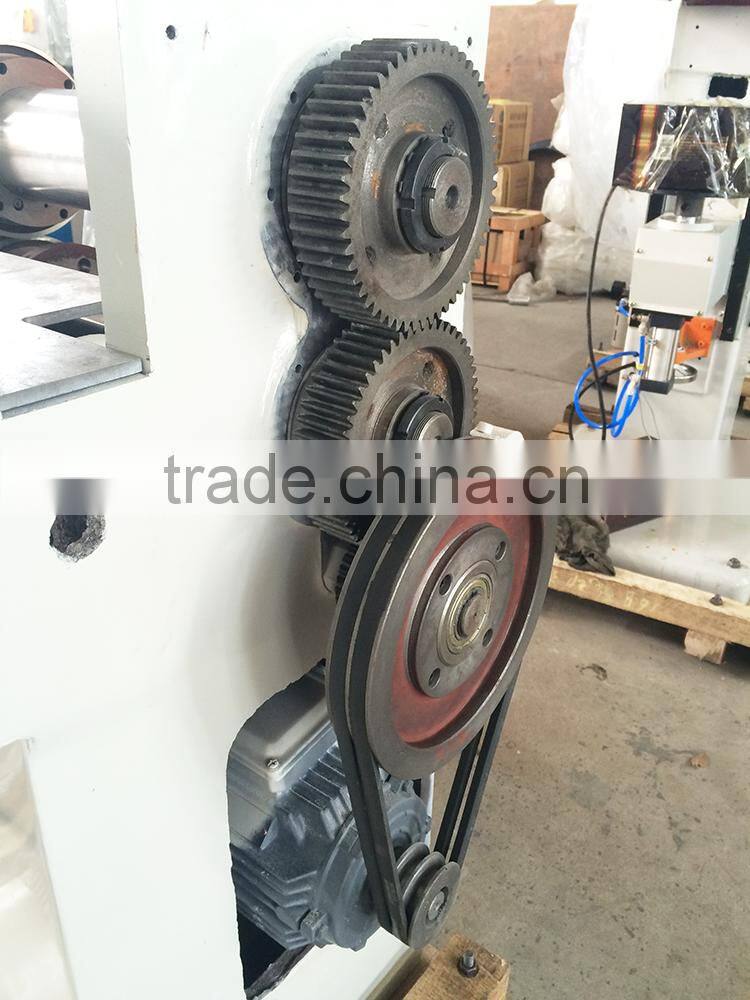

Drive: All drive shafts mounted on taper roller bearings Gears are helical of strong design and manufactured by hobbing process.
Cutter Shafts: For long life cutter shafts are hard chrome plated and precisely groud to very close tolerances.
Cutters: Cutters are made of High-grade Alloy Tool Steel (Cr12MoV) hardened and groud to close tolerances and concentricity.
Grinding Attachment: Machine is provided with grinding attachment at extra cost. With this attachment it is possible to grind the cutter faces on the machine itself for periodical sharpening.

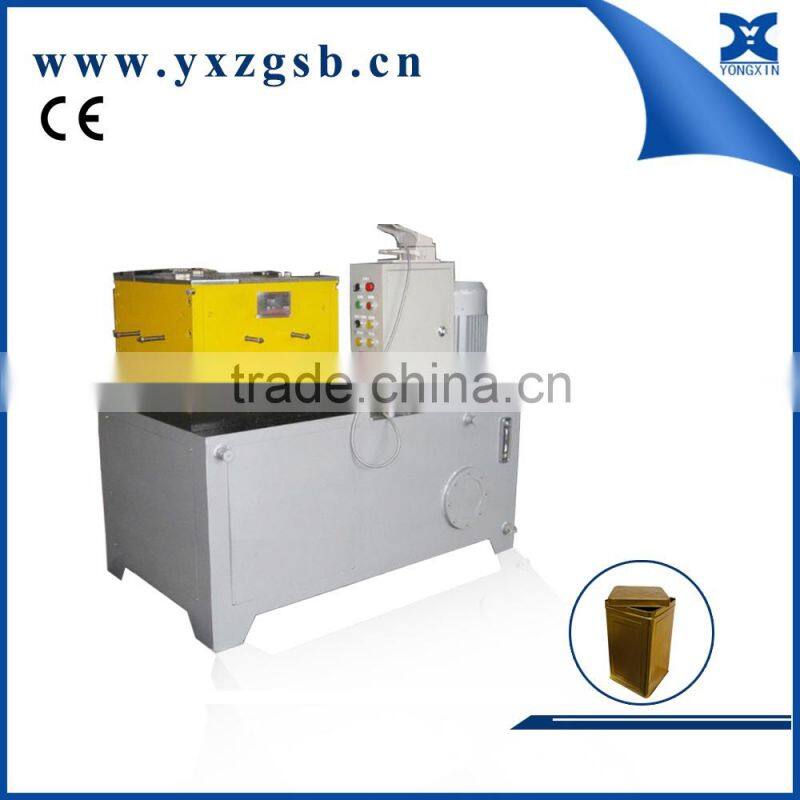

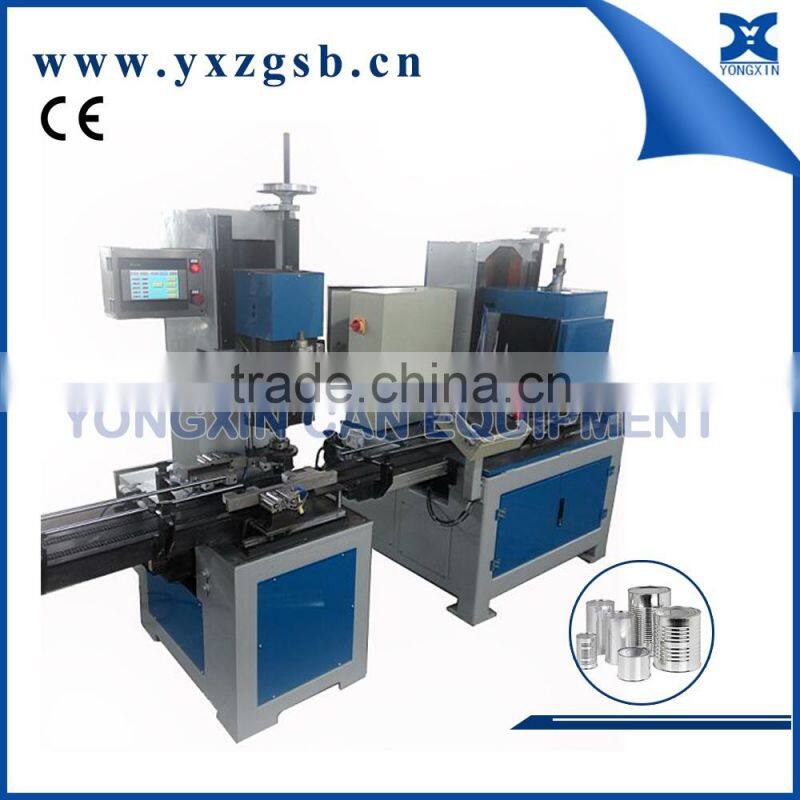

| Related Machines |
| Sample Cans |
| Why Us? |

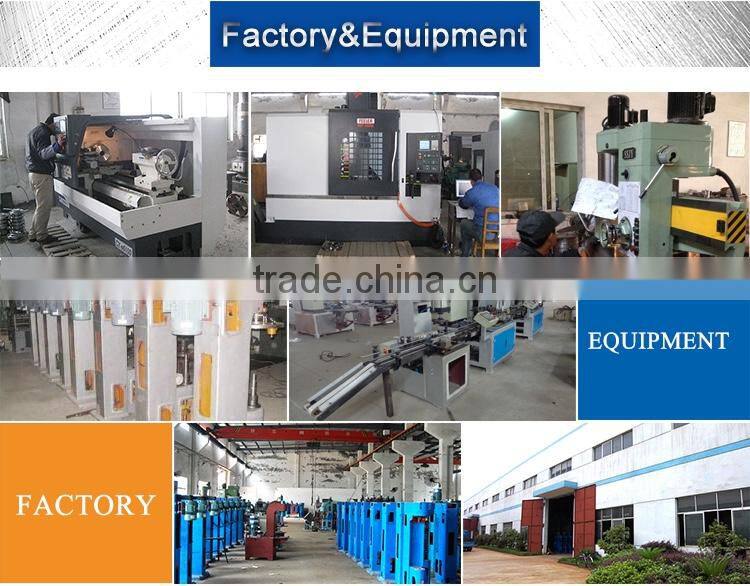

Established in 2005, over 10years experienced in designing and tooling Canmaking Machines for automatic/semi-automatic series. Products range from complete automatic and semi-automatic production line for food can, aerosol can, chemical can, locking can etc, Up to 60 experienced and well-trained engineering staffs working on mechanical section, pneumatic drive section, hydraulic drive section, motor drive section, electrical switchgear section, die component section, CNC section.
Professional advice and Turn-Key solution
Providing our professional advice and Turn-key solution with strict attitude and spirit, each command will proceed once upon confirmation between customers and the supplier side,and progress updates posted in real time for you to ensure every progress is under supervise and control.
Tailor-made by design and tooling
Upon receiving customer’s specific requests (You would need offer Tin can samples or engineering drawings)
Less time-consuming
1. The most efficient and reliable communications via phone calls or emails and WhatsApp messages, few language barriers, I (Mr. Dingo ZHA) represent as a salesman, will play a significative role in bridge man between buyer side and supplier side, jet lag would be considered when making communication above, I hope my performance will bring you pleasant and fruitful experience, all come to take care of your time and fully support the demand of your projects.
2. All necessary and relevant documents will be skilled translated and presenting in English version via both PDF. format files and paper printings, including Operation Manuals and Trouble shootings, etc.
Product Warranty
All of our products' warranty is One year for parts from the shipping date.
Timely delivery: (Normally speaking)
Lead time of around 10 weeks at time of order for entire sets of can tin machinery;
Lead time of around 1week at time of order for Consumable parts for replacements;
After-sales service
Our professional staffs ON-SITE (overseas) services are available for machines installation, commissioning and training.
