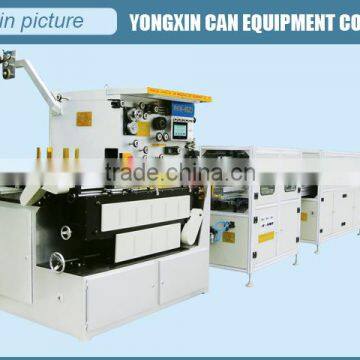

Name: Aerosol Welding/Inner&External Coating /Dryer Machine Line
Automatic bucket/food/beverage tin can/case making machinery/tin can welding/ tin packaging machine
1.The main parameters of Automatic round tin can welding machine/food can welding machine
Linear rate of welding |
6-26m/min |
Production capability |
40~100Cans/min |
Applicable can diameter |
Φ65~Φ180mm |
Applicable can height |
60~280mm |
Applicable material |
Tinplate steel-based |
Applicable material thickness |
0.2~0.35mm |
Seam welding landing |
0.4mm 0.6mm |
Seam point distance |
0.5-0.8mm |
Applicable copper wire diameter |
Φ 1.38mm Φ 1.5mm |
Cooling water |
Temperature:15-20°CPressure:0.4~0.5Mpa Discharge:10L/min |
Compressed air consumption |
600 L/min |
Pressure of compressed air |
0.5Mpa-0.7Mpa |
Power |
380V±5% 50HZ |
Total power |
40KVA |
Dimension |
1750×1100×1800mm |
Weight |
1800Kg |
Our major component suppliers
1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2, Low voltage apparatus are produced by SCHNEIDER.
3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4,OMRON is our sensor supplier.
5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
Can making technology process
Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling
Applicable types of cans

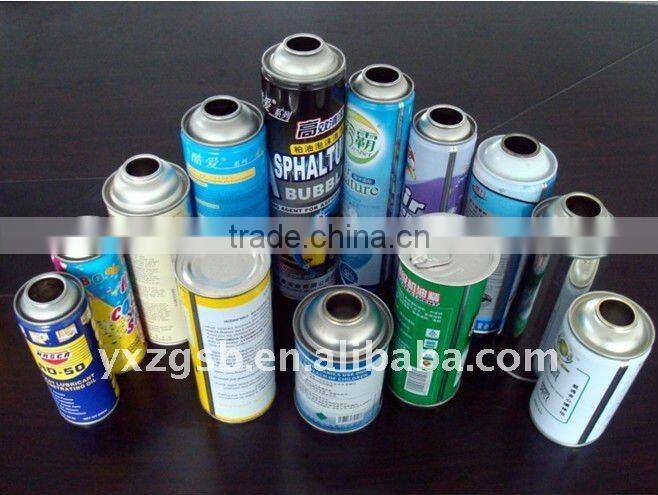

aerosol can ,food cans,beverage can ,round can,quadrate bucket etc.
FAQ
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:Is there any spare parts for free?
A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are
very durable.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
If you want to know more information about this machine,Please contact us!
