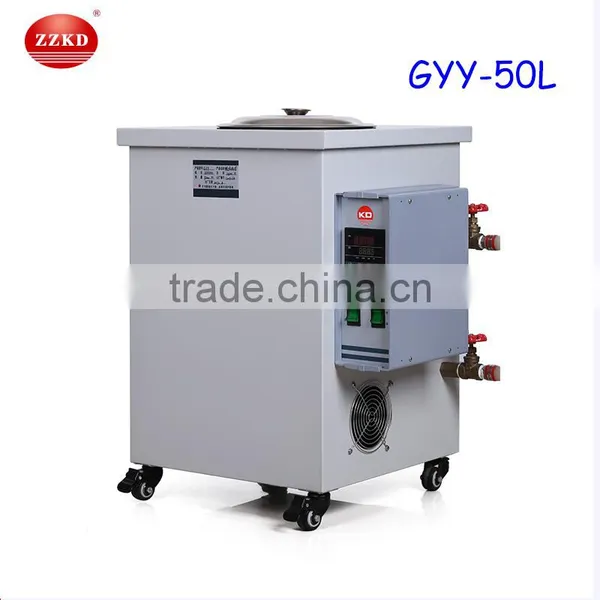

2017 GYY Circulating Heating Thermostatic Electric Lab Water Bath
Technical data:
Model |
GYY-5L |
GYY-10L |
GYY-20L |
GYY-30L |
GYY-50L |
GYY-80L |
GYY-100L |
|
Function |
Liquid storage volume (L) |
5 |
10 |
20 |
30 |
50 |
80 |
100 |
|
No-load maximum temperature(℃) |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
Heating power (KW) |
2.6 |
2.8 |
3.5 |
4.5 |
9 |
9 |
10 |
Cycling performance |
Power |
220V/50HZ 380V/50HZ |
||||||
|
Pressure |
1.45Mpa |
||||||
|
Cycle way |
Sealed magnetic pump cycles |
||||||
|
Cycling power |
|
||||||
|
Flow rate |
15-20L/min |
30-50L/min |
|||||
Tempe control performance |
Temp control range (℃) |
Water bath :RT~99 Oil bath :RT~250 |
||||||
|
Temperature error |
≤2.50% |
||||||
Working condition |
Power |
380/220V 50Hz |
||||||
|
Humidity |
60% |
||||||
|
HTF viscosity |
Below 500C℃·S·t |
||||||
Currents(A) |
10 |
|||||||
Optional Configuration |
Explosion-proof motors and electrical |
|||||||
Liner Size (cm) |
25*22 |
25*25 |
30*30 |
35*30 |
45*35 |
45*45 |
50*50 |
|
Overall dimensions (cm) |
60*40*68 |
60*45*70 |
63*48*70 |
70*54*85 |
75*58*85 |
86*68*90 |
90*70*95 |
|
Weight (kg) |
35 |
45 |
60 |
60 |
75 |
90 |
105 |
|
Brief introduction:
Intelligent high temperature circulating water / oil bath is made of electrostatic spray shell, all stainless steel liner. There has a compact structure, safe and convenient, precise temperature control, the output flow control and energy-saving features. This device is designed and manufactured for supporting double layer glass reactor to provide thermostatic circulation heat sources , and also can be used in any occasions which need thermostatic circulation heat sources.
Features:

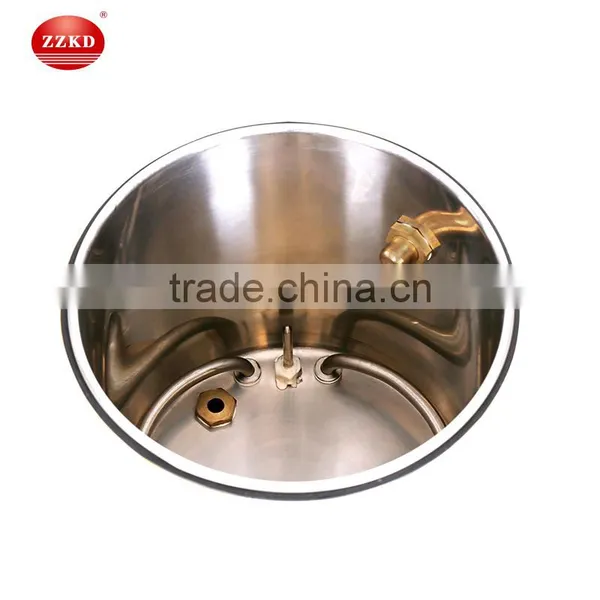

1. This product adopts imported stainless steel plate materials for the tank. Choose high quality plate electrostatic spraying plastics for shell.
2. Electric heating tube will be immersed in the oil, quick heating, high thermal efficiency, power saving, and electronic constant temperature.
3. There are insulating the cotton between shell and liner, excellent heat preservation effect. Available for all kinds of the same high temperature bath pot.
4.High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.

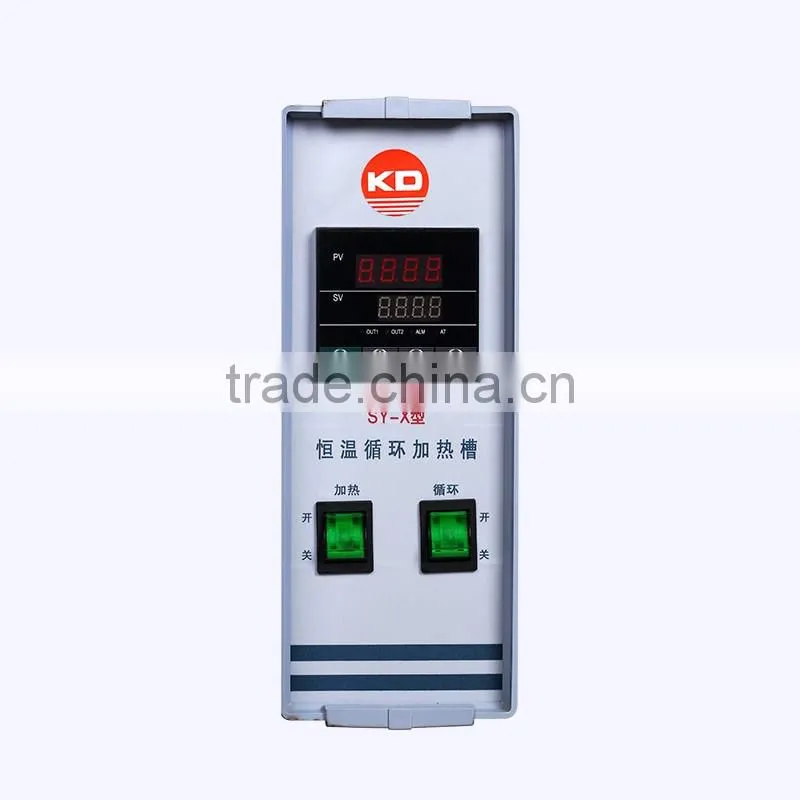

5.Digital display temperature control, simple operation, eye-catching.
6.The PID control, there have advantage temperature control accuracy and small temperature stamping.
7.The circulatory system is made by stainless steel, copper; anti-rust, anti-corrosion, etc.
8.The solid state relay control circuit, contact-less,halogen-light,increase longevity.
9.Vertical structure, with trundle, mobile convenience.
10.The high-performance circulating pump of circulating water/oil bath can provide external loop, constant temperature heat source to the reaction kettle.
Notice:
In order to improve the quality of your use, please use (320 high temperature heat transfer oil).
Use regulations to keep the oil level, regular change the oil. When you want to change it , you need put all the old oil out and wash the interior with new oil, then
add the new oil, but also to prevent debris from entering use, so as not to affect the quality of the oil.
Product Show:
We also supply other types of heating bath:
Our products are very popular:
1.What's the minimum order quantity?
One set at present
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood case.
5.Can you accept OEM terms?
Sure.
We have the confidence in providing the professional products that you want.
For more details, welcome to contact us! Click "Send" now!
