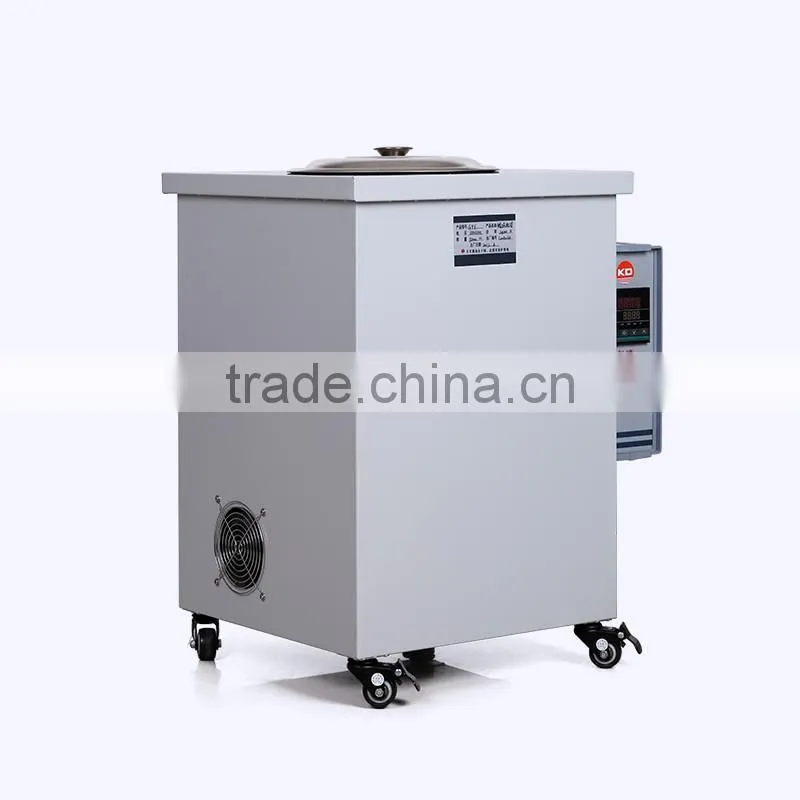

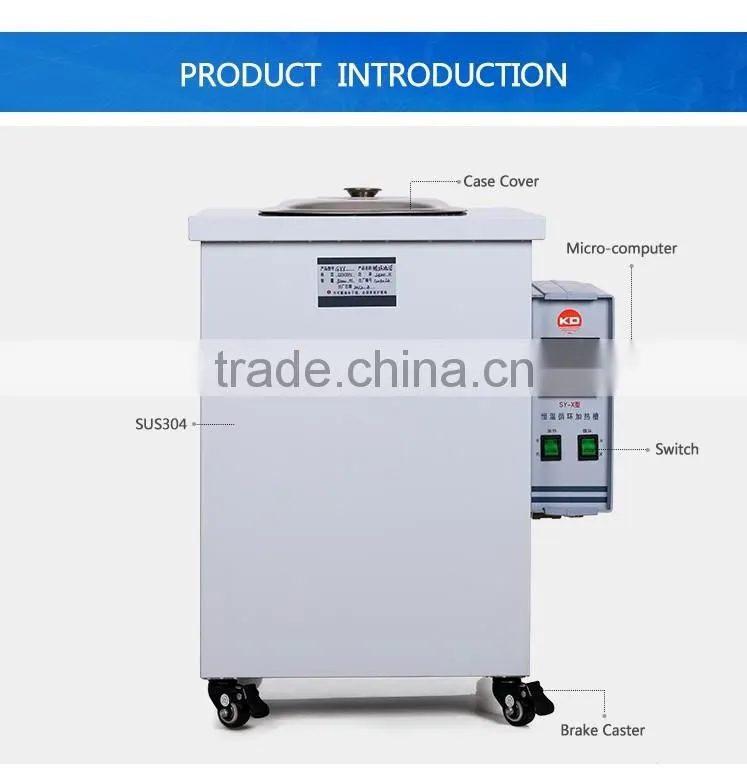

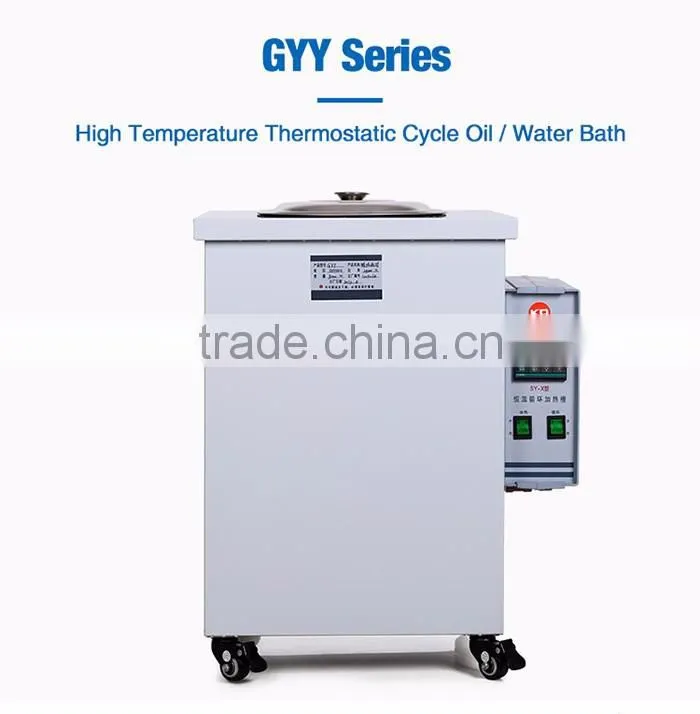

KD Cycle Constant High Temperature Circulating Water Oil Bath
Brief introduction
High temperature circulating water oil bath is widely used for drying, concentration, distillation,
dipping in chemical reagents, dipping medicines and biological products.
It can also be used to water bath temperature heating and temperature test, is necessary device for biology, genetics, viruses, aquatic products, environmental protection, medicine, health, biochemical laboratory, analysisroom, education scientific research.
Features
1. This product adopts imported stainless steel plate materials for the tank. Choose high quality plate electrostatic spraying plastics for shell.
2. Electric heating tube will be immersed in the oil, quick heating, high thermal efficiency, power saving, and electronic constant temperature.
3. There are insulating the cotton between shell and liner, excellent heat preservation effect. Available for all kinds of the same high temperature bath pot.
4. High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.
5. Digital display temperature control, simple operation, eye-catching.
Technical parameters
Model | GYY-5L | GYY-10L | GYY-20L | GYY-30L | GYY-50L | GYY-80L | GYY- 100L | |
Function | Liquid storage volume (L) | 5 | 10 | 20 | 30 | 50 | 80 | 100 |
No-load maximum temperature (℃) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
Heating power (kW) | 2.8 | 1.5 | 2 | 2.8 | 2.8 | 3 | ||
Cycling performance | Power | 220V/50HZ 380V/50HZ(50L/80L) | ||||||
Pressure | 1.45Mpa | |||||||
Cycle way | Sealed magnetic pump cycles | |||||||
Flow rate (L/min) | 15-20 | 20-25 | ||||||
Tempe control performance | Temp control range (℃) | Water bath: RT~99; Oil bath: RT~250 | ||||||
Temperature error | ≤2.50% | |||||||
Working condition | Power | 380/220V 50Hz | ||||||
Humidity | 60% | |||||||
HTF viscosity | Below 500C℃·S·t | |||||||
Currents(A) | 10 | |||||||
Optional Configuration | Explosion-proof motors and electrical | |||||||
The number of heating tube | 1 | 2 | 3 | |||||
Liner Size (cm) | 25*22 | 25*25 | 30*30 | 35*30 | 45*35 | 50*45 | 55*50 | |
Overall dimensions (cm) | 60*40*68 | 60*45*70 | 63*48*70 | 70*54*85 | 75*58*85 | 86*68*90 | 90*70*95 | |
Weight (kg) | 35 | 45 | 60 | 60 | 75 | 90 | 105 | |
Please take note | In order to improve the quality of your use, please use 320 high temperature heat transfer oil. | |||||||
Product details
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.
Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of china's scientific research.
The company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath,
magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company;
Location: Henan, China (Mainland);
Year Established: 2009;
Total Revenue : US$1 Million - US$2.5 Million;
Registration No: 410105000067362;
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
1. Can I use oil bath instead of water bath ?
Yes.
2. Which heat transfer oil you recommend ?
320 high temperature heat transfer oil, or according your requirement .
3. Are you equipped with heat transfer oil free ?
Sorry, we can not provide heat transfer oil, because oil is prohibited to delivery.
