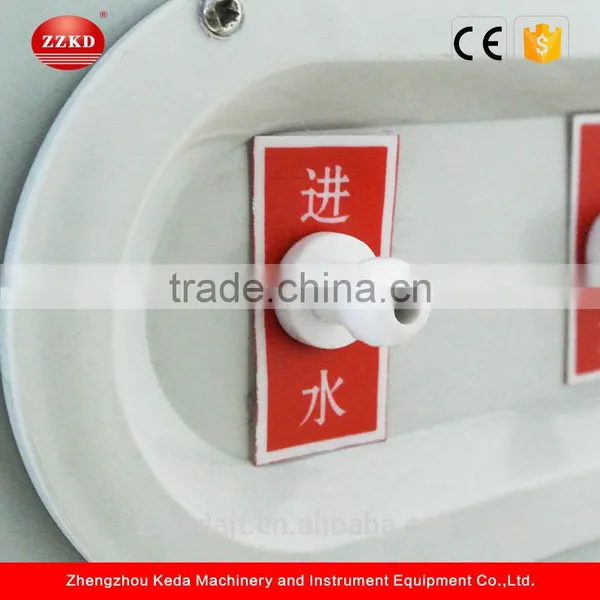

SHZ-C Circulating Water Multipurpose Vacuum Pump
Function
This product is a new type vacuum suction pump design based on recycled water as the working fluid, the principle of negative pressure produced by jet. It is provide vacuum for chemical experiments and also can provide circulating cooling water to the reaction set.
The pumps are widely used in evaporation, distillation, crystallization, filtration, decompression, sublimation and so on. It is the ideal equipment in universities pharmaceutical, chemical, food processing and other areas in laboratory.
Application
It provides vacuum condition for evaporation, distillation, crystallization, drying, distillation, filtration pressure, vacuum degassing experiments. Especially suitable for colleges and universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticides, agricultural engineering, biological engineering etc industries’ scientific research, pilot and production.
Technical parameter
Model |
SHZ-C |
SHZ-C |
SHZ-95B |
Remark |
Power(W) |
370 |
Equipped with 10L, 20L, 50L glass reactor or rotary evaporator. The vacuum degree is better when the water temperature is between 4℃ and 10℃ |
||
Voltage(V/Hz) |
220/50 |
|||
Flow(L/min) |
80 |
|||
Body Material |
1cr18 |
polypropylene |
Anti-corrosive |
|
Lift (m) |
12 |
|||
Max. Vacuum (Mpa) |
0.098 |
|||
Sucking rate for single tap (L/min) |
10 |
|||
Quantity of tap(Pcs) |
5 |
3 |
5 |
|
Tank capacity(L) |
50 |
|||
Dimension(mm) |
450*340*870 |
450*340*840 |
||
Weight(kg) |
37 |
|||
Security performance |
check-valve |
|||
Packaging:
-Wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,TNT,EMS,FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.
Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of china's scientific research.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, short path distillation, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller, vacuum drying oven, blast drying oven, high-pressure reaction kettle, microwave chemical reactor, freeze dryer, water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company.
Location: Henan, China (Mainland).
Year Established: 2009.
Total Revenue : US$1 Million - US$2.5 Million.
Registration No: 410105000067362.
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
CE certification
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case
5. Can you accept OEM terms?
Sure.
