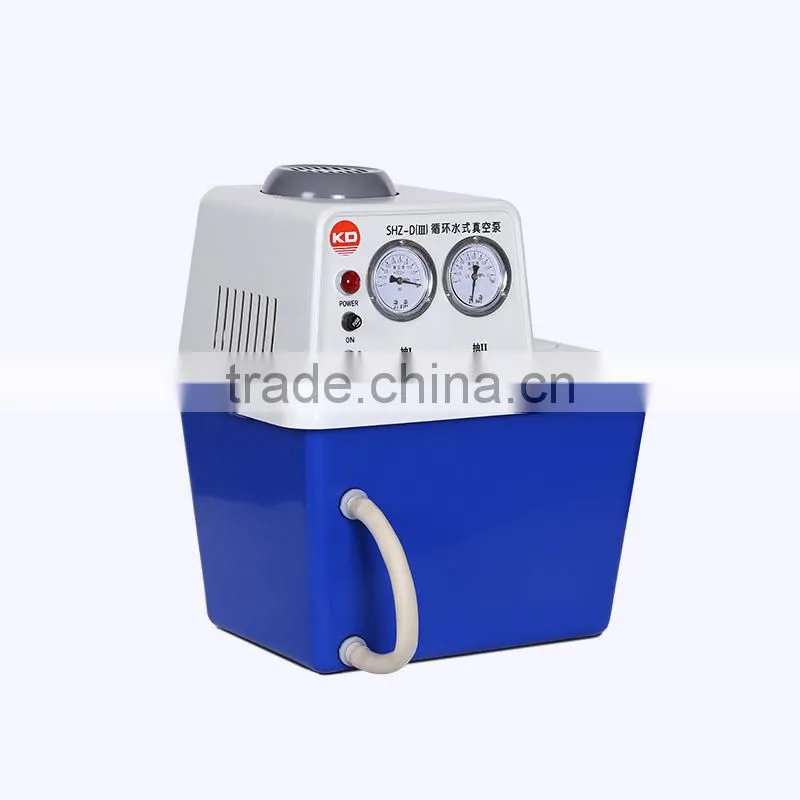

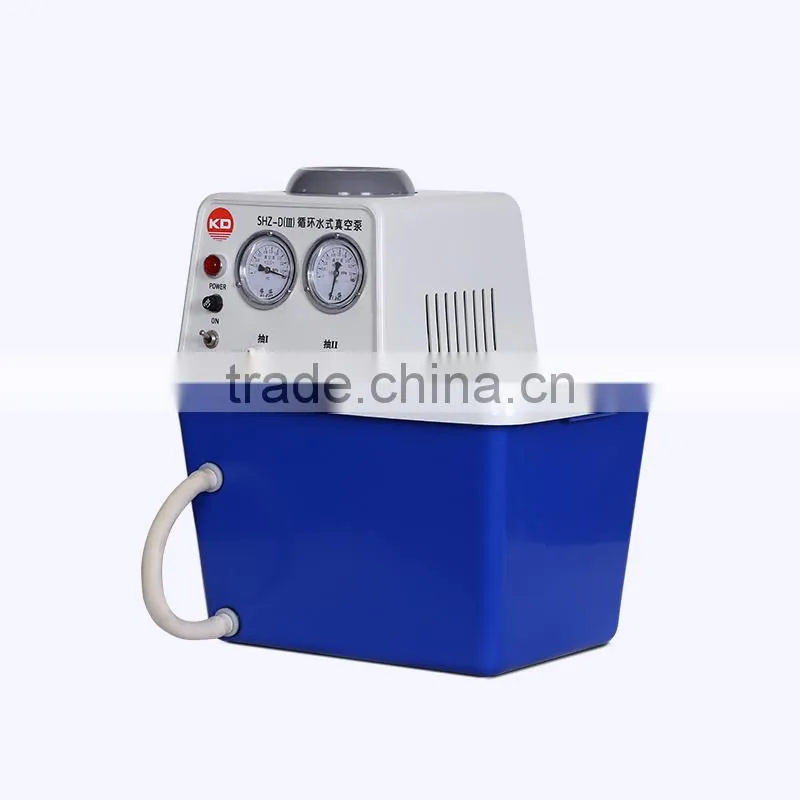

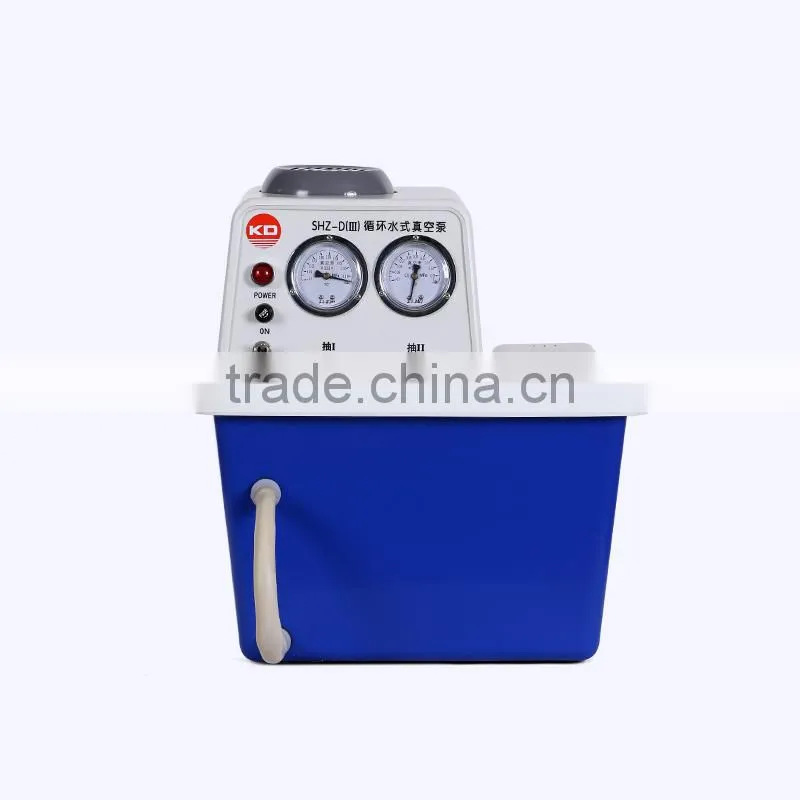

KD Lab Small Electric Centrifugal Water Vacuum Pump
Detailed description
Vacuum water pump is the device with circulating water as working fluid, and it adopts jet technology to create negative pressure. According to the appearance is divided into desktop type and vertical type ( vertical type has larger capacity relatively). Desktop type also is divided into anti-corrosion type and stainless steel type, according to motor material. Transparent tank vacuum pump is available.

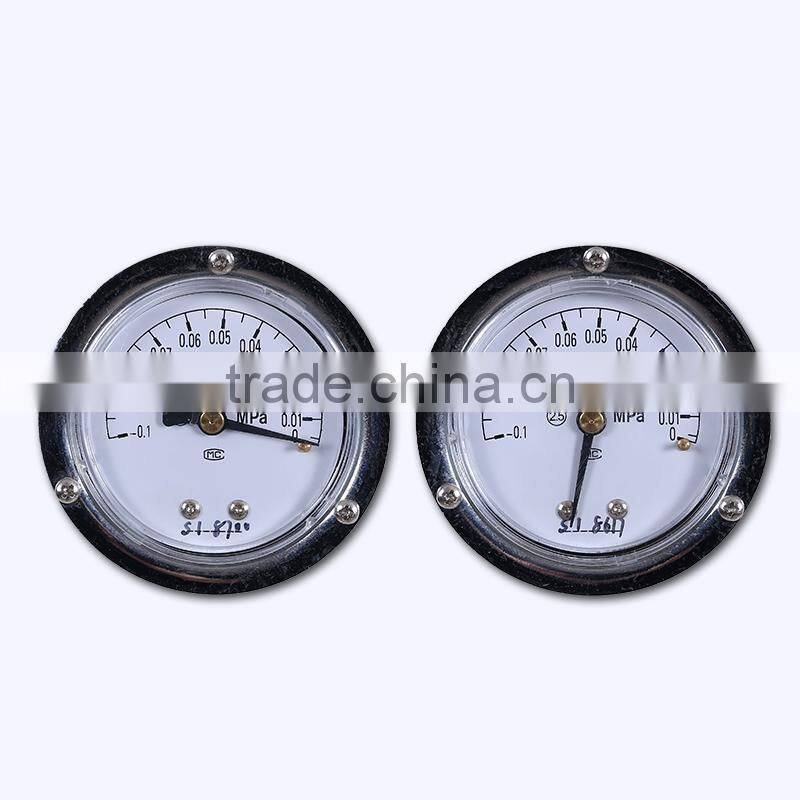

The pump adopts one modeling shell, small size on the basis of multi-purpose vacuum pump. It has small volume, light weight, beautiful appearance etc characters. Double-meter, double-tap pump and four-meter four-tap, double-side multi-purpose pumps is easy to do visual experiment for teachers as well as to turn off and on for students at any side.
Features
♦ Reduced size and improvement made for laboratory use.
♦ The double table, double headed pumping air, may alone or the parallel use, and are equipped with add the add the ice hole.
♦ The moter is made of stainless steel or anti-corrosion material
♦ The maximum vacuum reach 0.098Mpa
♦ Low cost.
Technical data
Model |
SHZ-D(Ⅲ) |
SHZ-D(Ⅲ) four-meter, four tap |
Remark |
|
The machine Performance |
Power (W) |
180 |
370 |
Can equipped with 2L, 5L glass reactor or rotary evaporator. The vacuum is better when the water temperature is between 4℃ and 10℃. |
Voltage (V/Hz) |
220/50 |
|||
Flow (L/min) |
60 |
|||
Lift (m) |
8 |
|||
Body material |
Anti-corrosion/1Cr18 |
Anti-corrosion |
||
The machine performance |
Max. pressure (Mpa) |
0.098 |
||
Sucking rate for single tap(L/min) |
10 |
|||
|
Quantity of tap (Pcs) |
2 |
4 |
||
|
Tank capacity (L) |
15 |
|||
Dimension(mm) |
400*280*420 |
|||
Weight(kg) |
15 |
|||
Ultimate vacuum (kpa) |
26 |
|||
Security performance |
Anti~corrosion, counter~current prevent valve |
|||

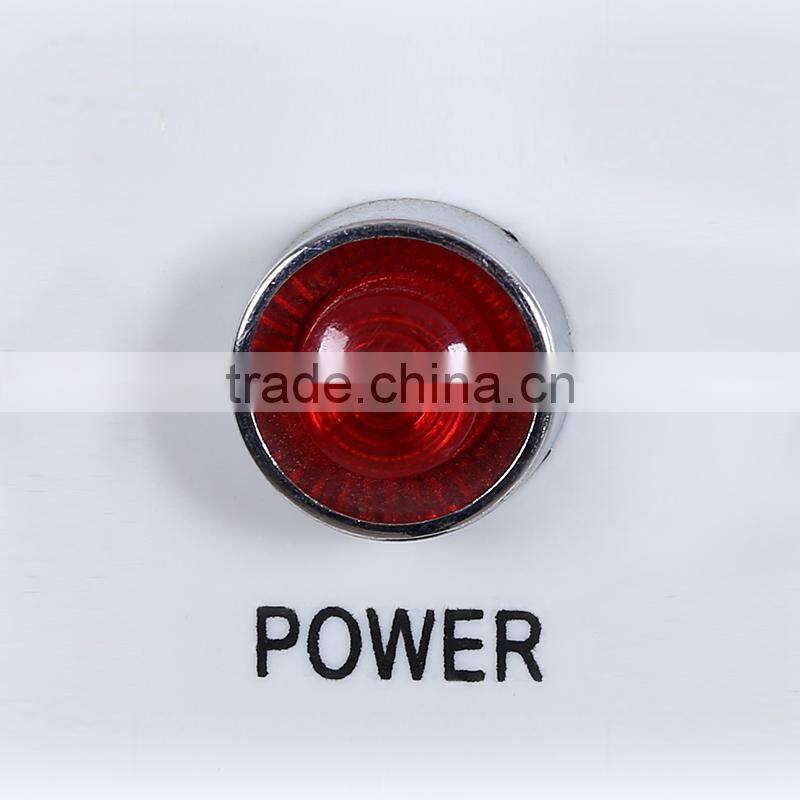

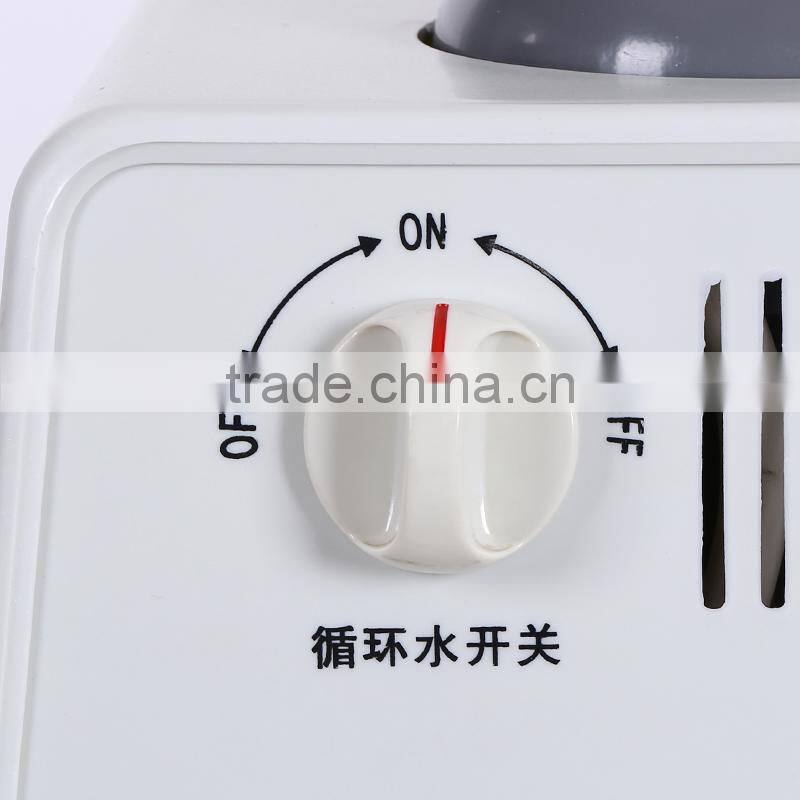

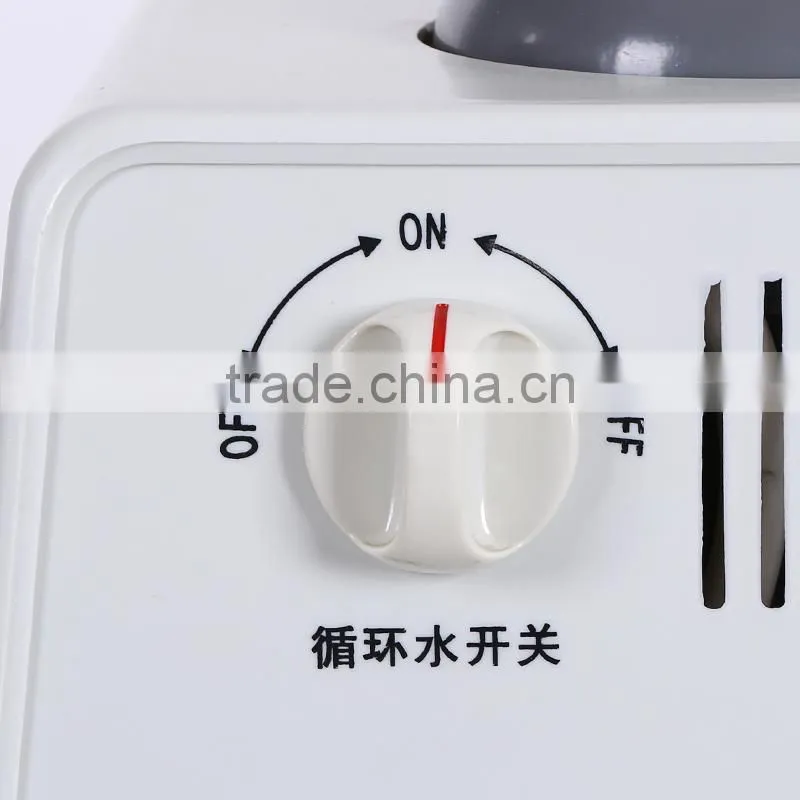

Pictures
Packaging
-Carton packing;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in China for many years.
2. Users encounter problems when using our products , please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
FAQ
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5. Can you accept OEM terms?
Sure.
