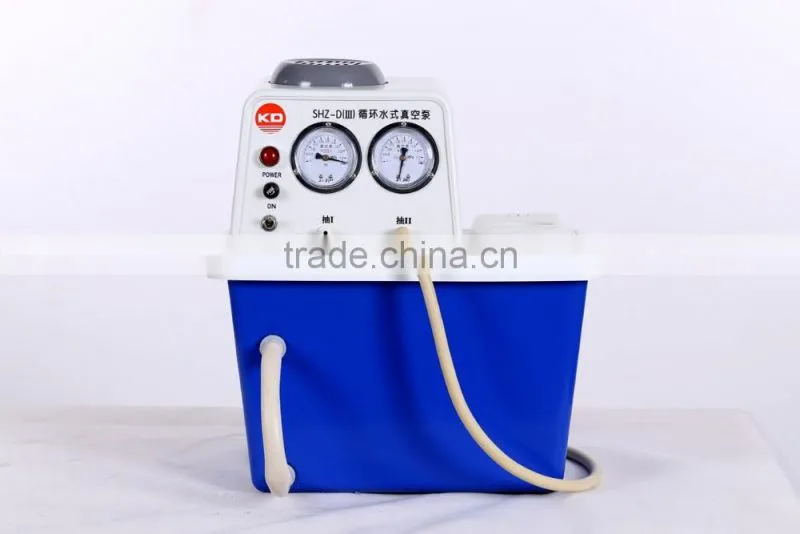

Multipurpose Water Recycle Vacuum Pump
Detailed description
The multipurpose water recycle vacuum pump is widely used in medium and large institution,
environmental protection, biochemical, medical, chemical, research and other fields. It has reasonable structure, easy operation, stable performance.
Specifications
(1) Reduced size and improvement made for laboratory use.

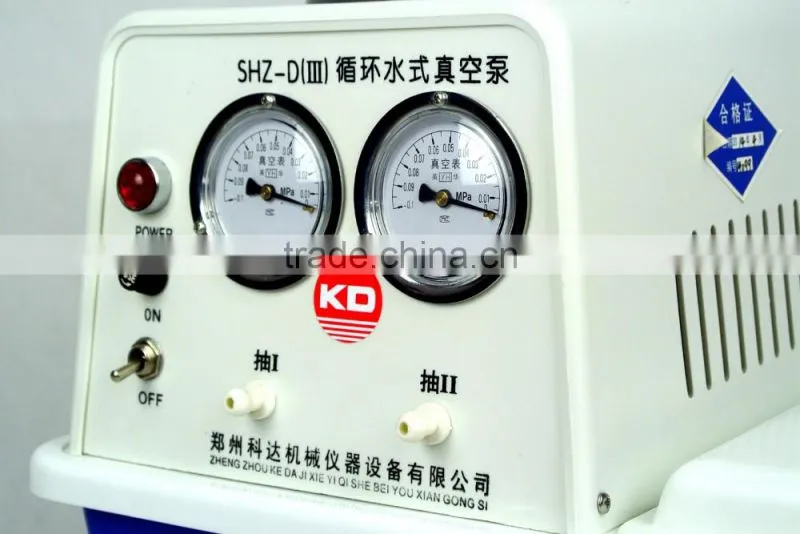

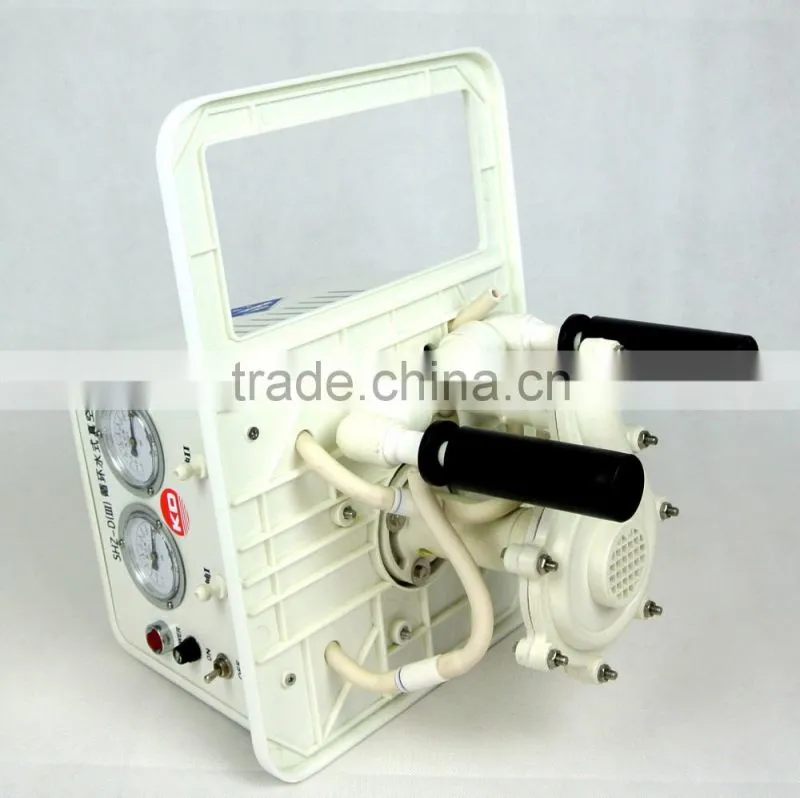

(2) The water vacuum pump is equipped with double table, double headed pumping air, may alone or the parallel use, and are equipped with add the add the ice hole.

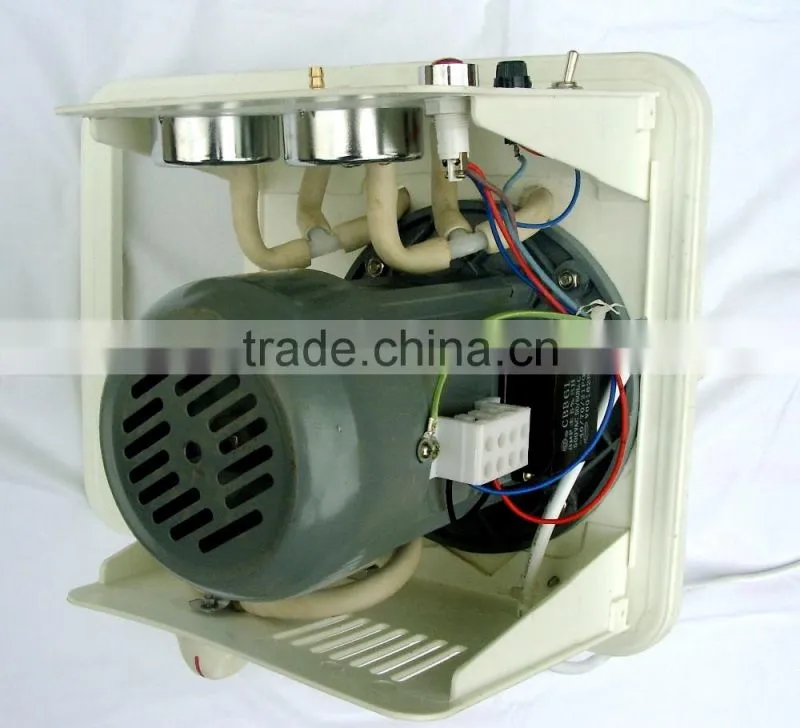

(3) The moter is made of stainless steel or anti-corrosion material
(4) The maximum vacuum reach 0.098Mpa
(5) Low cost
Technical Data
Model | SHZ-D(Ⅲ) | SHZ-D(Ⅲ) four-meter, four tap | Remark | |
The machine Performance | Power (W) | 180 | 370 | Can equipped with 2L, 5L glass reactor or rotary evaporator. The vacuum is better when the water temperature is between 4℃ and 10℃. |
Voltage (V/Hz) | 220/50 | |||
Flow (L/min) | 60 | |||
Lift (m) | 8 | |||
Body material | Anti-corrosion/1Cr18 | Anti-corrosion | ||
The machine performance | Max. pressure (Mpa) | 0.098 | ||
Sucking rate for single tap(L/min) | 10 | |||
Quantity of tap (Pcs) | 2 | 4 | ||
Tank capacity (L) | 15 | |||
Dimension(mm) | 400*280*420 | |||
Weight(kg) | 15 | |||
Ultimate vacuum (kpa) | 26 | |||
Security performance | Anti~corrosion, counter~current prevent valve | |||
