Specifications
1) Anticorrosive material
2) Rotary speed 0~120 rpm
3) Can keep above -0.096Mpa vacuum degree

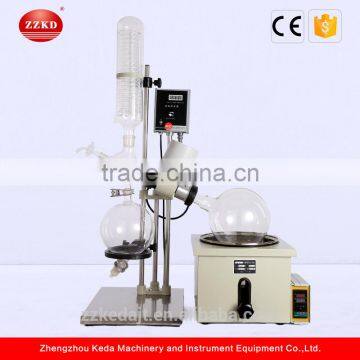

Alcohol distillation equipment
Features of Alcohol distillation equipment :
1, Quick and easy lifting mechanism:
RE201D, RE301 and RE501 rotary evaporators are water tank lifting. Turning the hand-wheel on the oil/water bath drives the bath to lift and go down. RE52 series is the motor thread lifting, that is, turning the hand-wheel on the screw stem will drive the rotating flask, rotating motor, condenser and collecting flask to lift or go down at the same time.
2, The evaporators can incline willfully along the horizontal direction within 0-45°

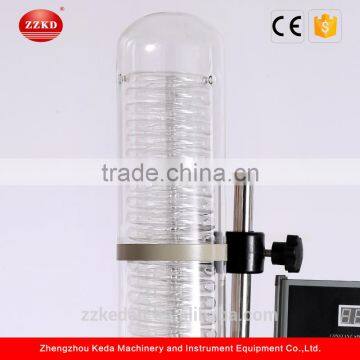

3, High evaporation rate vertical condensation system

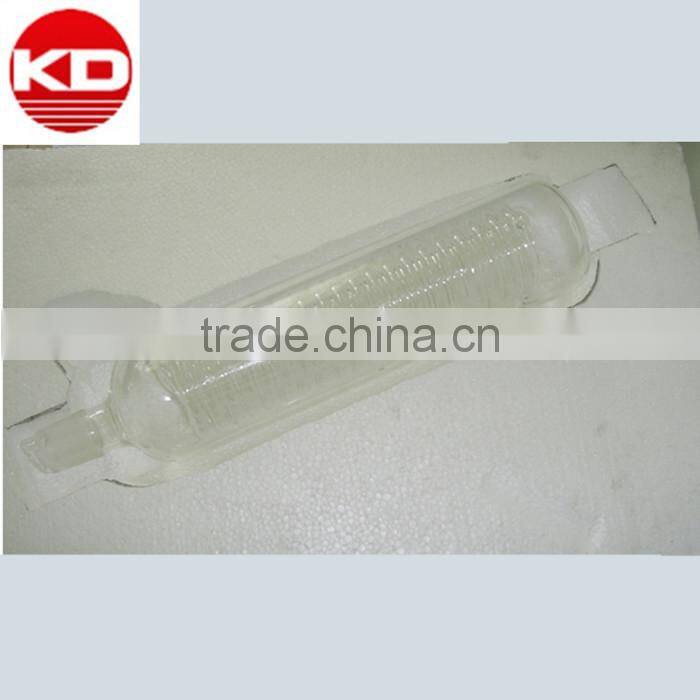

The condenser adopts two structures. One is the dual pipeline convection principle and is used for evaporating organic solvents. The other is single pipe container with interlayer that could hold cooling water, ice and Didrikson. It is vertical type to decrease volume and is used for evaporating organic solvents.
4, Heating Tank
Stainless steel heating tube provides heat source. The temperature range will be RT~99 ℃ with water. The water tank is cylindrical and made of high quality stainless steel. So it is corrosion resistance and durable. The tanks are available for 2-20liter rotating flask heated. Moreover, the tank can be moved according the rotating flask size.

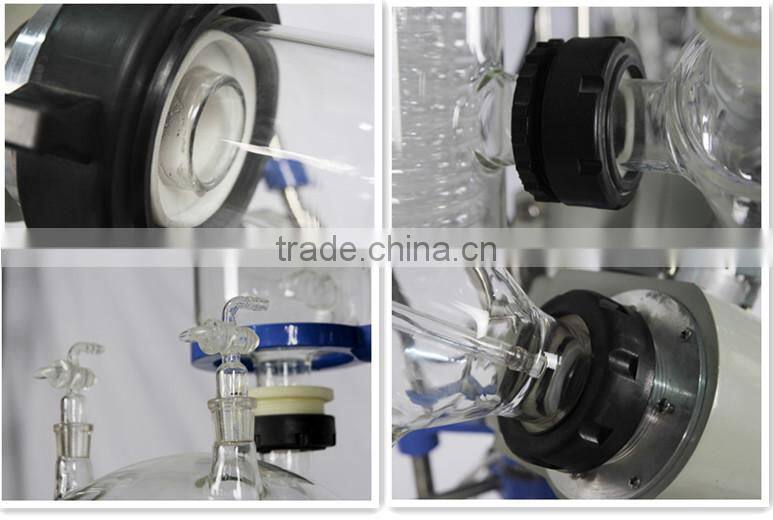

5, Vacuum Sealing
PTFE evaporating pipe, good sealing and heat-resisting. Joint part is sealed Fluorine rubber mat which brings good performance.
6, Automatic Temperature Control Digital Display
Temperature digital display and control by pt100 sensor. when the pre-selected temperature is reached the temperature you setted, the controller automatically will turn off the heater supply, When it is lower than the pre-selected temperature, controller will switch on automatically to realize constant temperature.

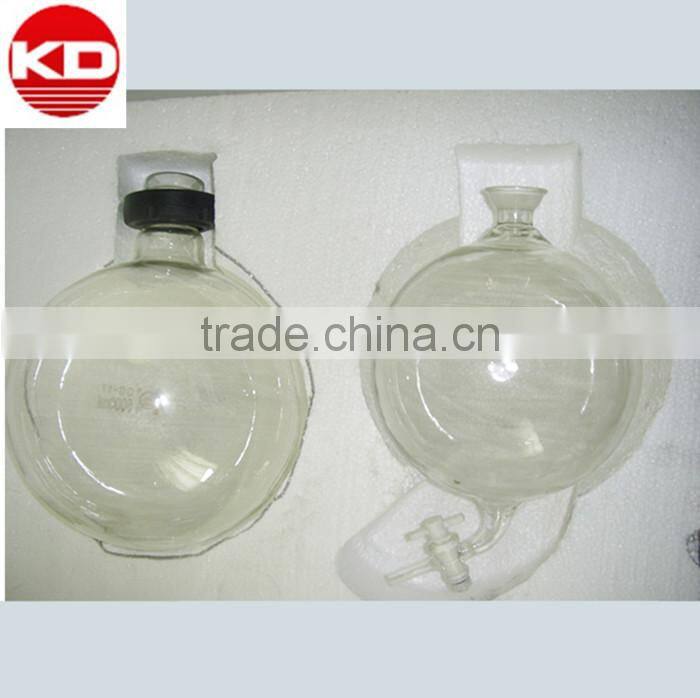

7, Rotating flask and Collection flask
The flasks are made of GG-17 high borosilicate glass which is blowed by hand. Their intensity, concentricity, glossiness, and surface finish are better than rough flasks.
Technical Data of Alcohol distillation equipment :
Model | RE-201D | RE-301 | RE-501 | RE-5299 | |||||
Rotating Flask(L) | 1 | 3 | 5 | 1/24#(0.25-2L) | |||||
Collection Flask(L) | 1 | 2 | 3 | 0.5/24# | |||||
Rotating Motor(W) | 40(Stepless speed regulation) | 25(Stepless speed regulation) | |||||||
Rotating Speed(R/min) | 0-120 | ||||||||
Water(Oil)Bath Power(W) | 1500 | 1000 | |||||||
Temp Control Mode/Range | Intelligent digital/RT-399℃ | Intelligent digital/RT-99℃ | |||||||
Temp Resolution | ±2℃ | ±1℃ | |||||||
Evaporation Rate(L/H2O) | ≥1 | ≥1.5 | ≥1.5 | ≥1 | |||||

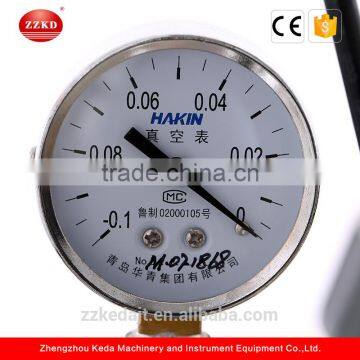

Max Vacuum Degree | <133pa(1.33mbar,1Torr,0.098Mpa) | ||||||||
Lifting Height(mm) | 0-150 | 0-120 | 0-120 | 0-150 | |||||
Water Bath Size | Φ24*15 | Φ26*15 | Φ28*17 | Φ24*15 | |||||
Condenser | Vertical with charge pipe,Large Condenser,evaporating pipe | ||||||||
Lifting Mode | Oil bath Manual Lifting | Screw rod Manual Lifting | Automatic lifting | ||||||
Voltage | ~220V 50 HZ | ||||||||
Sealing Mode | PTFE,fluoro rubber sealing | ||||||||

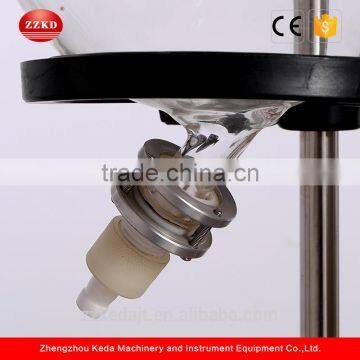

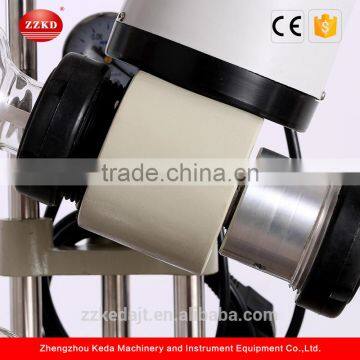

Photos of Alcohol distillation equipment :
1. What's the max temperature?
Temp range:RT-399 degree centigrade oil bath
Temp range:RT-99 degree centigrade water bath
2. What's the size do you have?
We can offer you 0.25L,0.5L, 1L,2L,3L, 5L, 10L, 20L, 50L.
3. What can do with the rotary evaporator?
Mainly Vacuum distillation
4. Can you offer the supporting facilities?
Yes, we can offer you the vacuum pump, heating and cooling system as you demand.
5. What's the minimum order quantity?
No limited at present
If you have any questions , please contact me , we will reply you within 24hours !!
