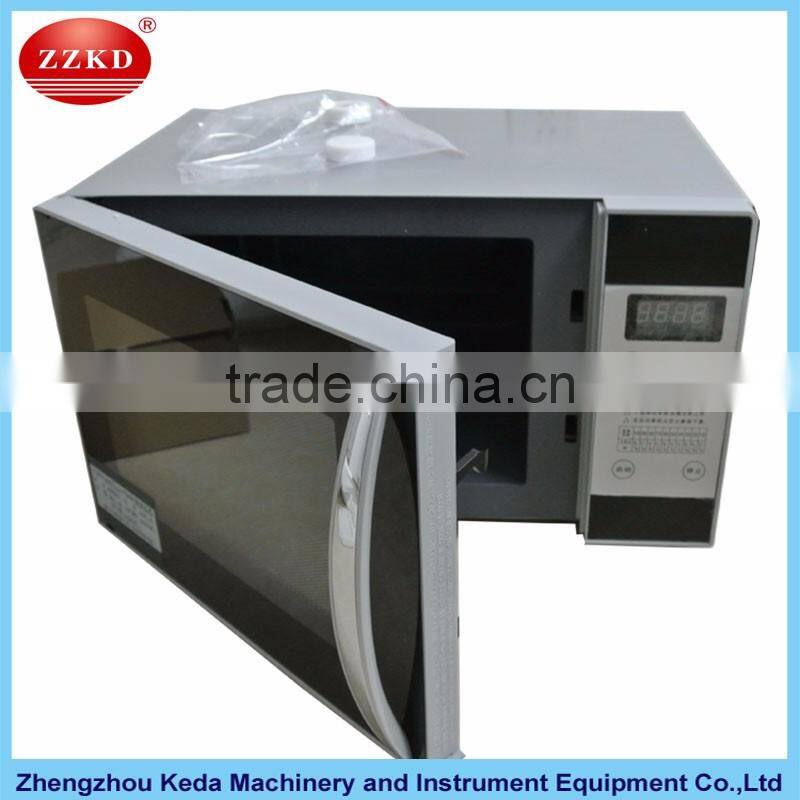

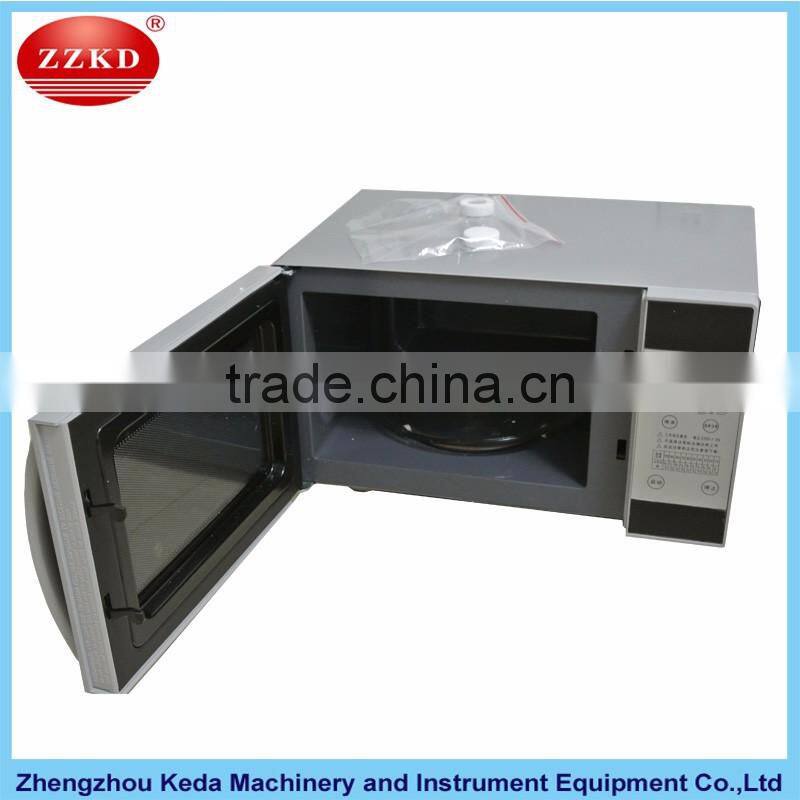

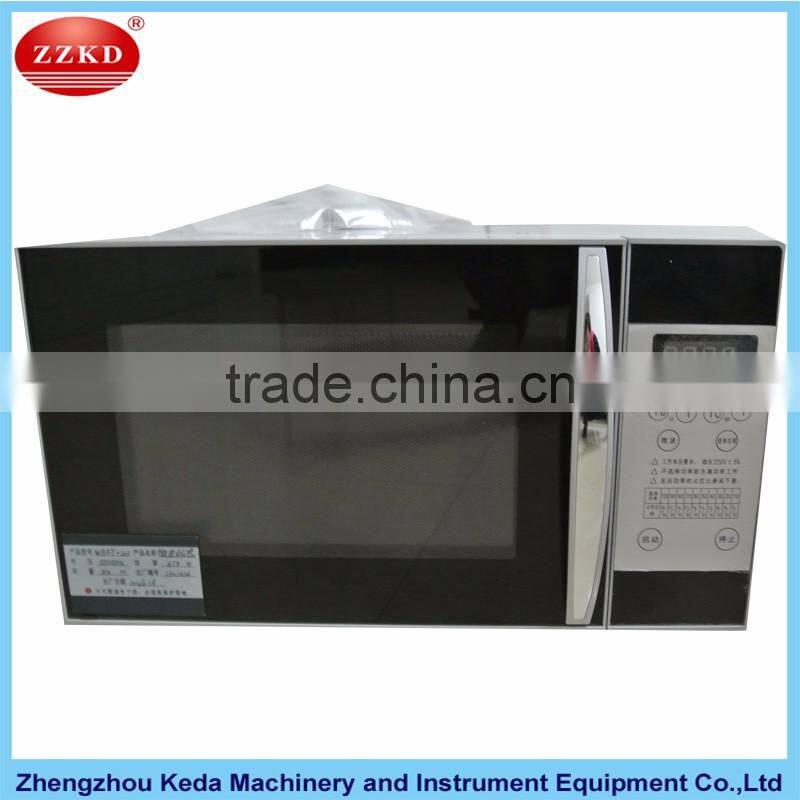

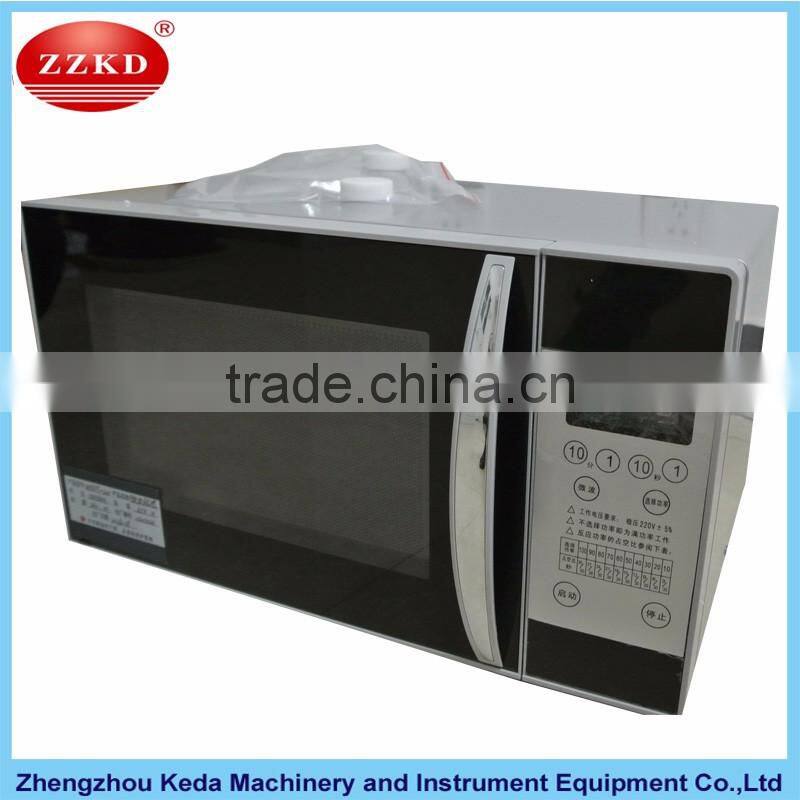

Industrial Microwave Chemical Reactor Manufacturer
Characteristics
1. The full power output of the device can be 650W.
2. This device can be set to 10 power levels. The microwave reactor obtain 10% -100% power through different on-off time (duty cycle).
3. Selecting the same power and working time, you can get the same reaction conditions. The experiment has satisfactory repeatability.

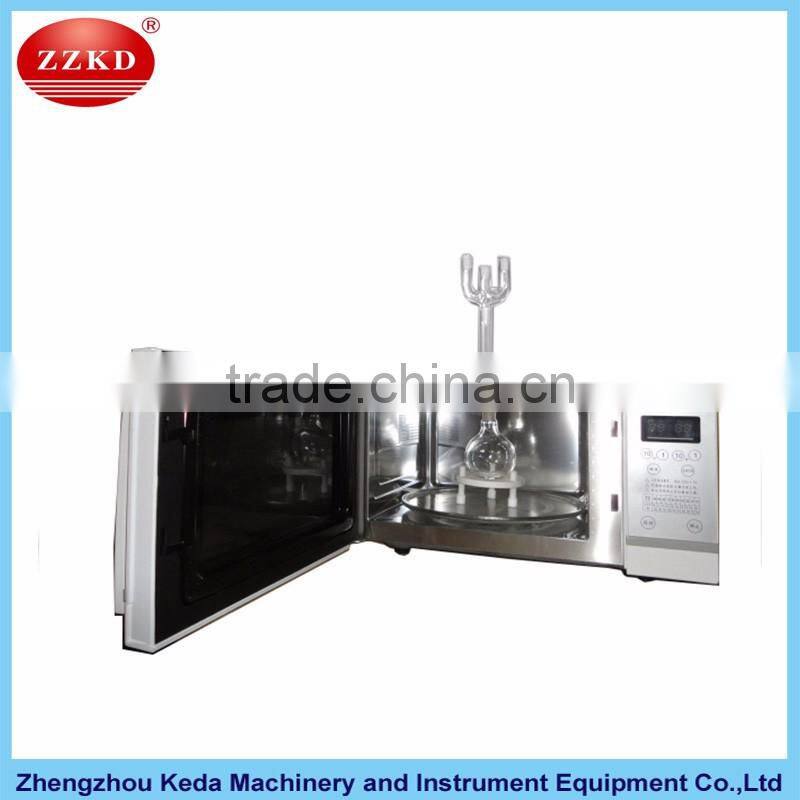

4. Applicable to install a reflux apparatus, while ensuring no leakage of microwave’s ended waveguide.
Technical parameter
Model | Rated power consumption (W) | Rated maximum output power(W) | Maximum input current(A) | Operating voltage(V) | Operating voltage (M/Hz) | Cavity size(mm) | Packing size (mm) | G.W. (Kg) |
WBFY-201 | 1100 | 750 | 7.8 | 220 | 2450±50 | 330*365*235 | 480*540*540 | 20 |
WBFY-205 | 650 | Adjustable size | 290*295*190 | 610*480*550 | 35 |
Working principle
♦ Microwave is a kind of high-frequency electromagnetic wave which does not generate heat. Because the microwave in nature is dispersed and not focused, it can not be used as an energy source. While using magnetron can turn electric energy to microwave.
♦ Microwave generated by the magnetron in this device can penetrate medium via oscillation frequency of DPS 2450MHz. When the medium has a suitable dielectric constant and dielectric dissipation, it will vibrate at high-frequency speed in the microwave field. Thus energy is accumulated in the medium. In terms of chemical reaction, it can produce thermal effects and non-thermal effects at the same time.
♦ Microwave can be absorbed by polar medium and metal powder. It can penetrate the non-polar materials such as glass, ceramics, PTFE material etc. But it will be reflected on the metal surface. Typically, the output power of the magnetron is basically the same. Adjusting power can be achieved by changing the current on / off time (duty cycle). Microcomputer control, easier and more accurate operation. The repeated chemical reaction condition can be obtained if you choose the same working state.
Microwave chemical reactor
Other models

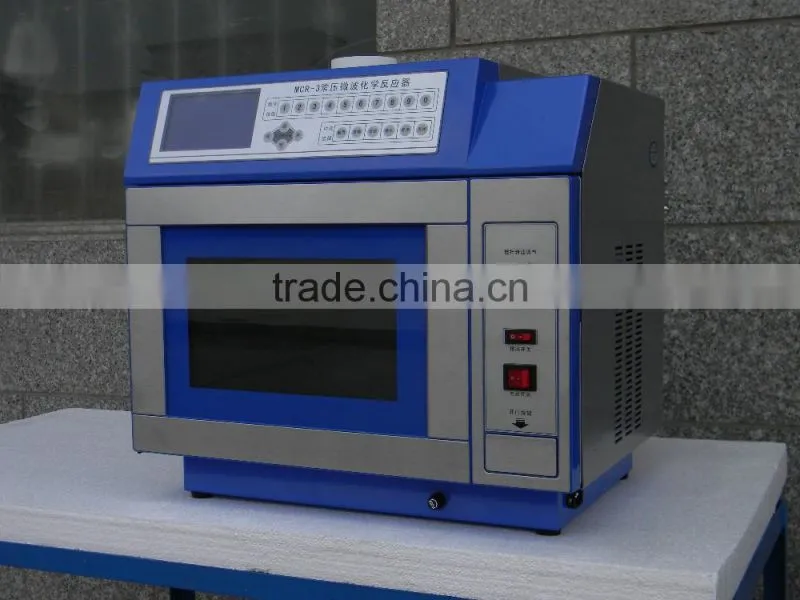

MCR-3
WBFY-201
Packaging
-Wooden case or cartons packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, microwave chemical reactor, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5. Can you accept OEM terms?
Sure.
