< KD> Newly Design Microwave Chemical Reactor
- 660 Set / Sets per Month
- Qingdao Shanghai Shenzhen Guangzhou Ningbo etc.
- T/T L/C D/P D/A Credit Card PayPal
- Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
- 1-5L Single Layer Pyrex Borosilicate Tank Stirred Heated Glass Reactor
- 10L Digital Extraction Synthesis Laboratory Single Glass Reactor
Product Details
Condition: | New | Automatic Grade: | Semi-Automatic | Type: | Other, microwave chemical reactor |
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | WBFY-201 |
Voltage: | 220v | Power(W): | 1100w | Dimension(L*W*H): | 480*540*540 mm |
Weight: | 20KG | Certification: | ISO | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

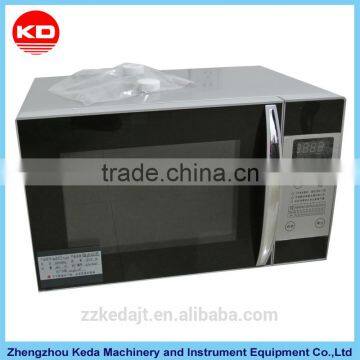

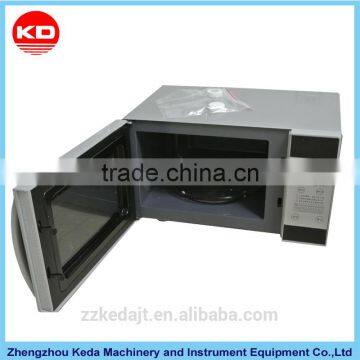

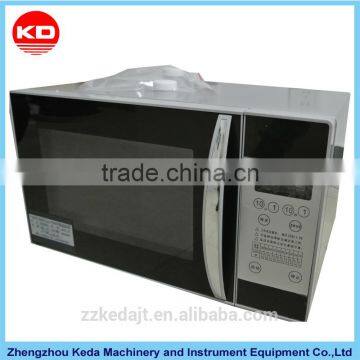

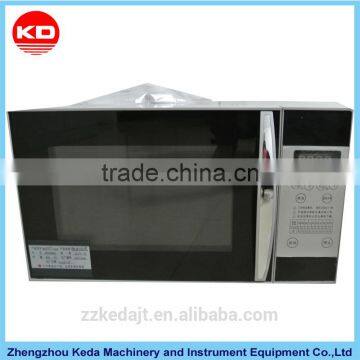

<KD> Newly Design Microwave Chemical Reactor
Brief introduction
Microwave chemical reactor adopts microcomputer technology and unique technology of microwave adjustment, making microwave power continuous and adjustable, easy to operate and good repeatability. It plays a scientific and practical role in experiments that require microwave-assisted catalytic reaction conditions, especially in those who require a smaller microwave power and who wish to maintain continuous microwave radiation.
Characteristics
1. The full power output of the device can be 650W.
2. This device can be set to 10 power levels. The microwave reactor obtain 10% -100% power through different on-off time (duty cycle).
3. Selecting the same power and working time, you can get the same reaction conditions. The experiment has satisfactory repeatability.

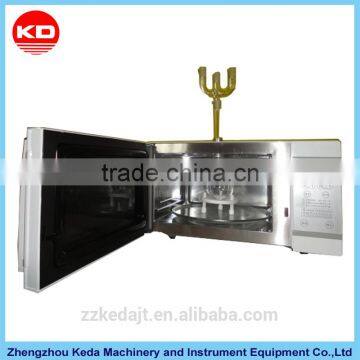

4. Applicable to install a reflux apparatus, while ensuring no leakage of microwave’s ended waveguide.
Technical parameter
Model | Rated power consumption(W) | Rated maximum output power(W) | Maximum input current(A) | Operating voltage(V) | Operating voltage(M/Hz) | Cavity size(mm) |
WBFY201 | 1100 | 750 | 7.8 | 220 | 2450±50 | 330*365*235 |
WBFY205 | 650 | Adjustable size | 290*295*190 |
Working principle
<1> Microwave is a kind of high-frequency electromagnetic wave which does not generate heat. Because the microwave in nature is dispersed and not focused, it can not be used as an energy source. While using magnetron can turn electric energy to microwave.
<2> Microwave generated by the magnetron in this device can penetrate medium via oscillation frequency of DPS 2450MHz. When the medium has a suitable dielectric constant and dielectric dissipation, it will vibrate at high-frequency speed in the microwave field. Thus energy is accumulated in the medium. In terms of chemical reaction, it can produce thermal effects and non-thermal effects at the same time.
<3> Microwave can be absorbed by polar medium and metal powder. It can penetrate the non-polar materials such as glass, ceramics, PTFE material etc. But it will be reflected on the metal surface. Typically, the output power of the magnetron is basically the same. Adjusting power can be achieved by changing the current on / off time (duty cycle). Microcomputer control, easier and more accurate operation. The repeated chemical reaction condition can be obtained if you choose the same working state.

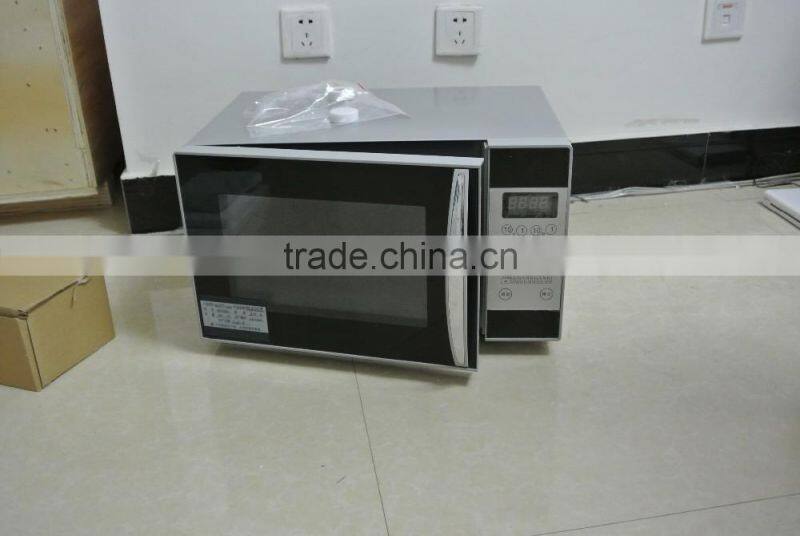

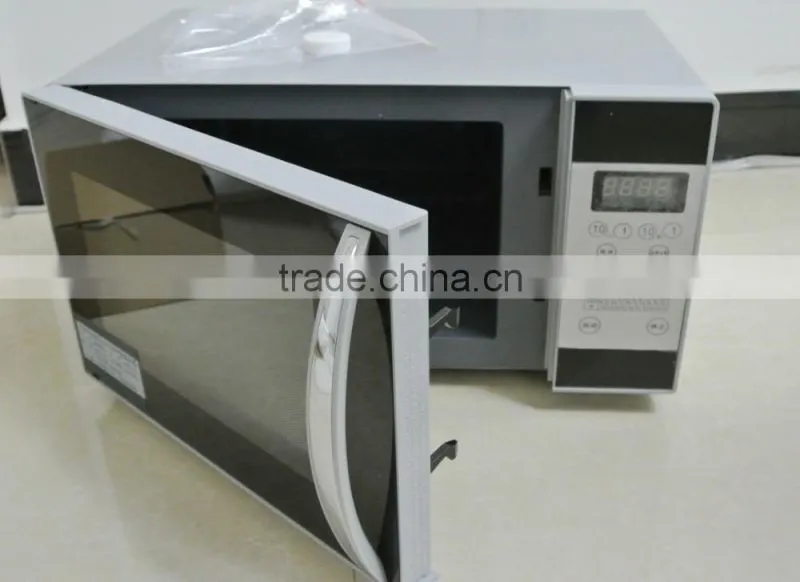

Microwave chemical reactor
Other models
Packaging
-Wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company;
Location: Henan, China (Mainland);
Year Established: 2009;
Total Revenue : US$1 Million - US$2.5 Million;
Registration No: 410105000067362;
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
CE certification
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard wooden case
5. Can you accept OEM terms?
Sure.
