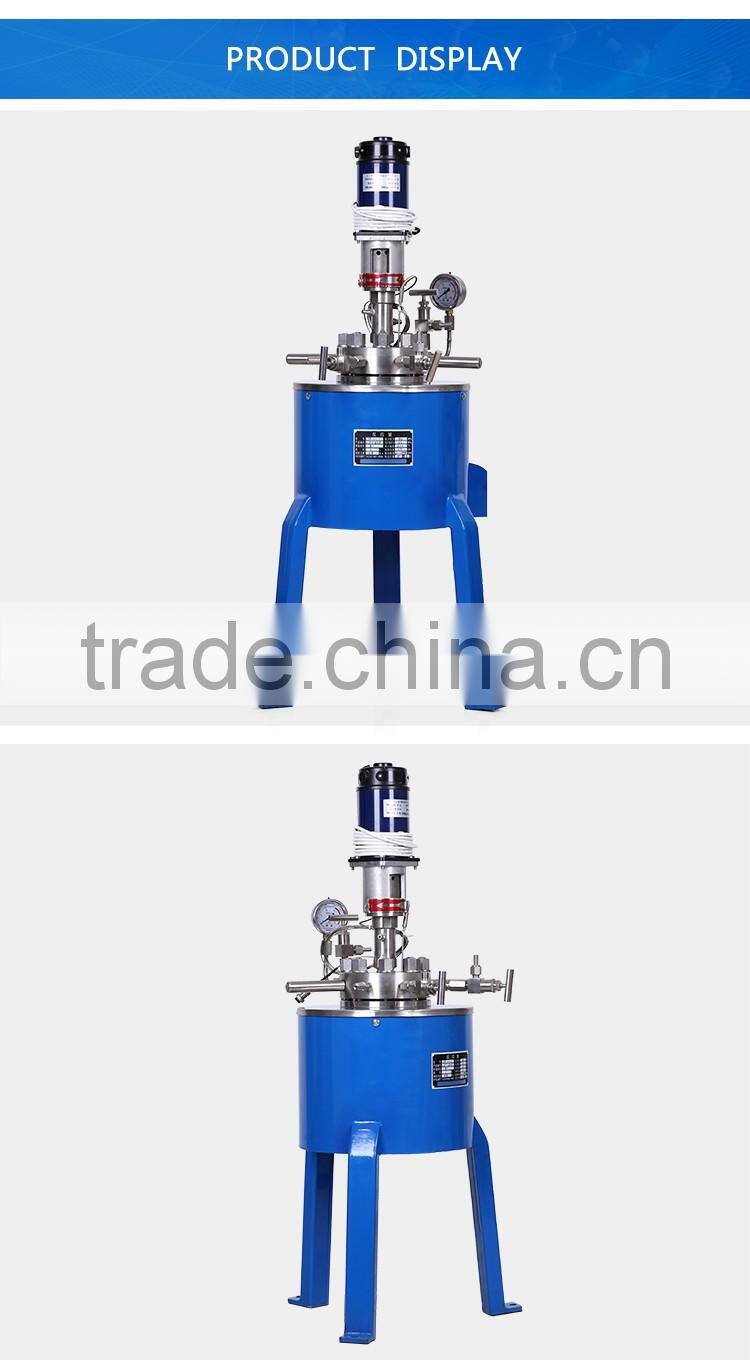

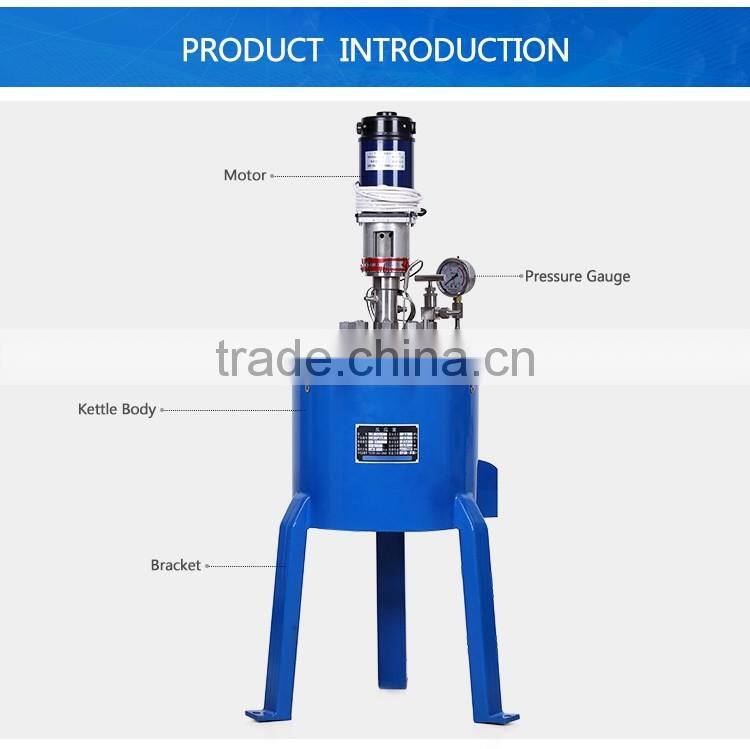

KD Autoclavable Instrument Container High Pressure Reactor for Lab
Brief introduction
We design and manufacture high pressure stirred autoclave, pressure upto 35Mpa and temperatures up to 450°C in various material of constructions like SS-304/304L, SS-316/316L, hastelloy B/C, monel, inconel, nickel, titanium, zirconium etc. from laboratory to pilot-plant scale for various applications. With the evolving needs of the industry for enhanced productivity and lower cost of production; This equipment is used for various applications such as chemical reactions like alkylation, amination, bromination, carboxylation, catalytic redution, chlorination, dehydrogenation etc., also for production of chemical in small quantity, soaking of diamonds
or precious stones, corrosion testing, reaction calorimetry etc.
Technical parameter
Model | CJF- 0.05 | CJF-0.1 | CJF-0.25 | CJF- 0.5 | CJF- 1 | CJF- 2 | CJF- 3 | CJF- 5 | CJF- 10 | CJF- 20 | CJF- 30 |
Capacity (L) | 0.05 | 0.1 | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
Setting pressure (Mpa) | 22 | ||||||||||
Setting temperature (℃) | 350 | ||||||||||
Accuracy of temperature control (℃) | ±1 | ||||||||||
Heating method | General electric heating, the others are far-infrared, thermal oil, steam, circulating water, etc | ||||||||||
Stirring torque (N.cm) | 120 | ||||||||||
Heating power (kW) | 0.6 | 0.8 | 1.5 | 2 | 2.5 | 4 | 7 | 10 | 10 | ||

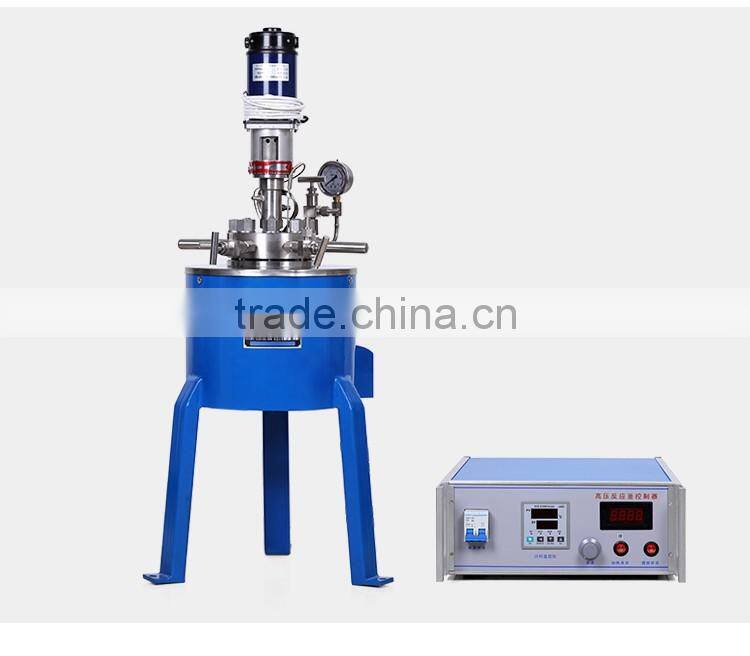

Temperature controller | Real~time display and adjust the speed, temperature, time, heating voltage, with standard PID automatic temperature adjustment meter. | ||||||||||
Temperature controller working environment | Ambient temperature 0-50℃, relative humidity 30-80% | ||||||||||
Lifting mode | CJF-no lift, FCF-manual lift or electric lift | ||||||||||
Material | 304/316 Stainless steel, Titanium, also can plus PTFE liner | ||||||||||
Other models
FCF and CF
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shippment
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
1. ZZKD Instruments provides ONE YEAR WARRANTY for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. ZZKD Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of lab equipment located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller, vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack and so on.
1. Can the capacity be customized?
Yes.
2. What’s the largest volume you can manufacture?
3000L.
3. What kinds of reactors do you have?
Lifting-FCF series; Non lifting-CJF series, CF series.
4. Can you match liner?
Yes, we can supply suitable PTFE and ceramic liners for your models.
5. The maximum pressure and temperature can reach?
Usually 22Mpa, 350 degree C.
6. What’s reactor made from?
Usually SS304 and SS316.
7. What’s your delivery time?
Common model: 2-7 working days, customized model: 7-15 working days.
8. Can you supplycooling function?
Yes.
9. What’s your sealing mode?

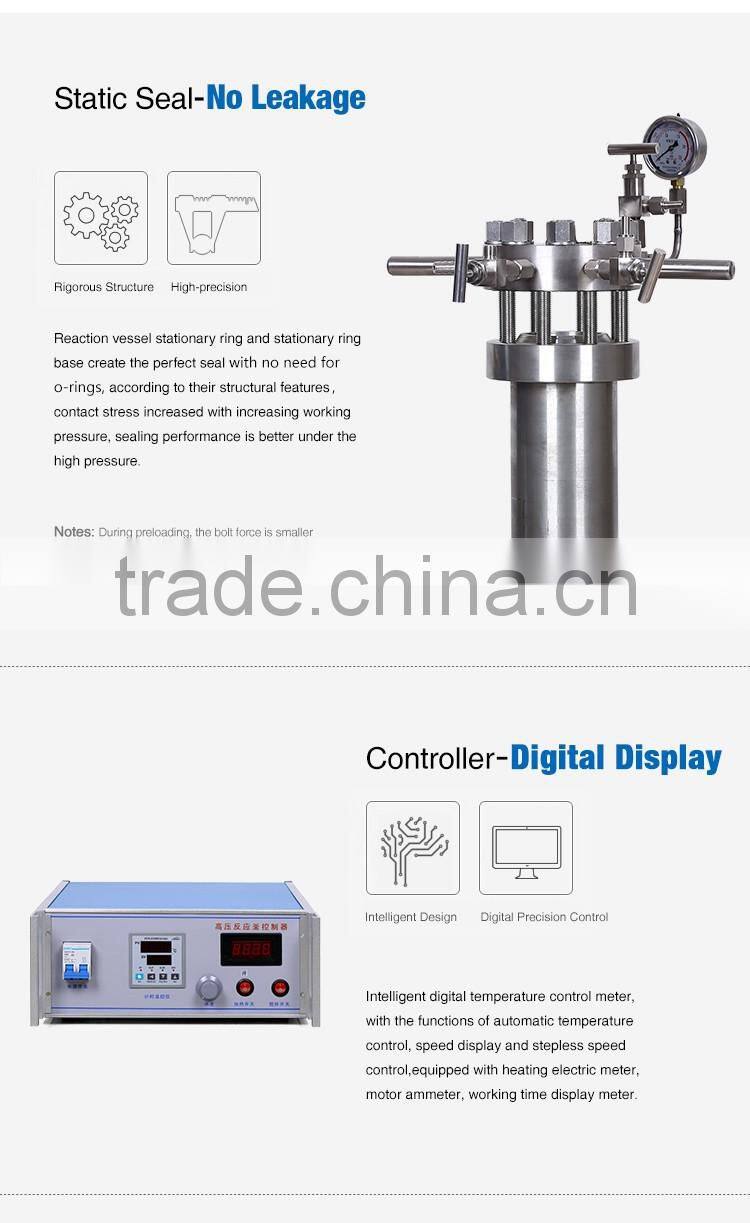

Static sealing, no “O” ring.
10. Is there safety valve on your device?
Yes.
