Hot Sale 0.5-10L High Pressure Reaction Vessels

Features and application

CJF series 0.5-10L high pressure reaction vessels is gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid three-phase chemical material for chemical reaction stirring device. It can make all kinds of chemical material sufficiency stirred at high pressure, vacuum, temperature to strengthen the mass transfer and heat transfer processes.

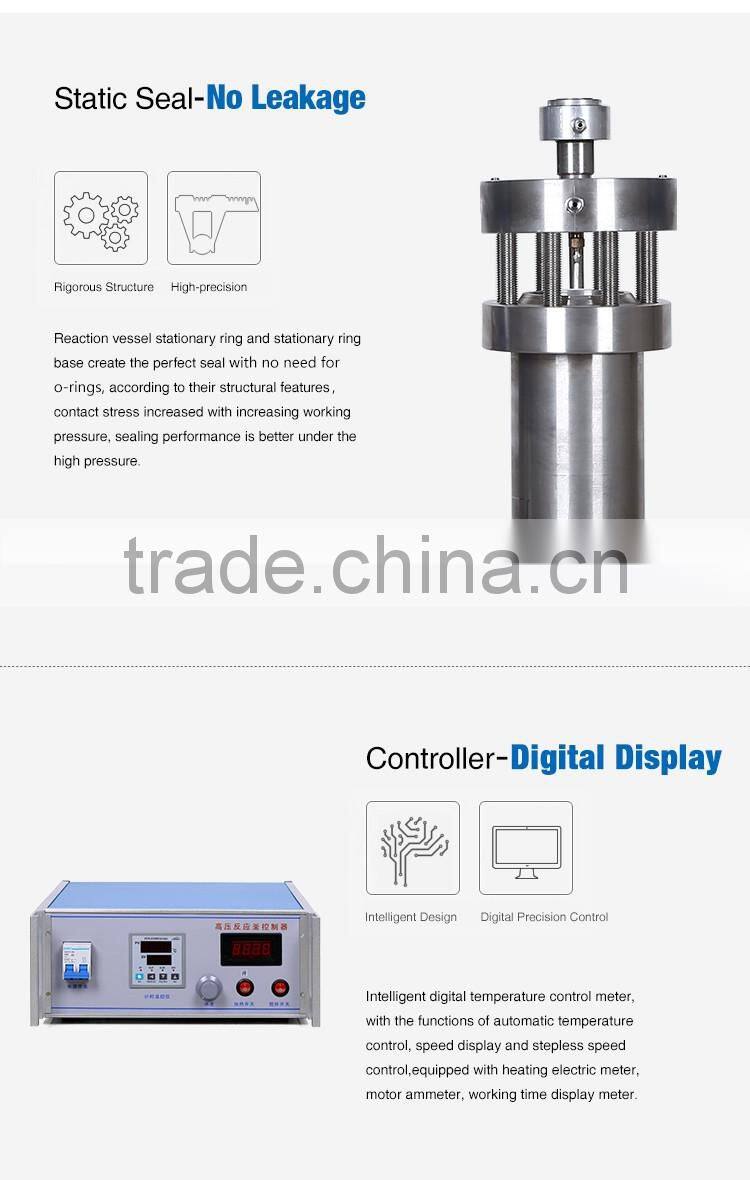

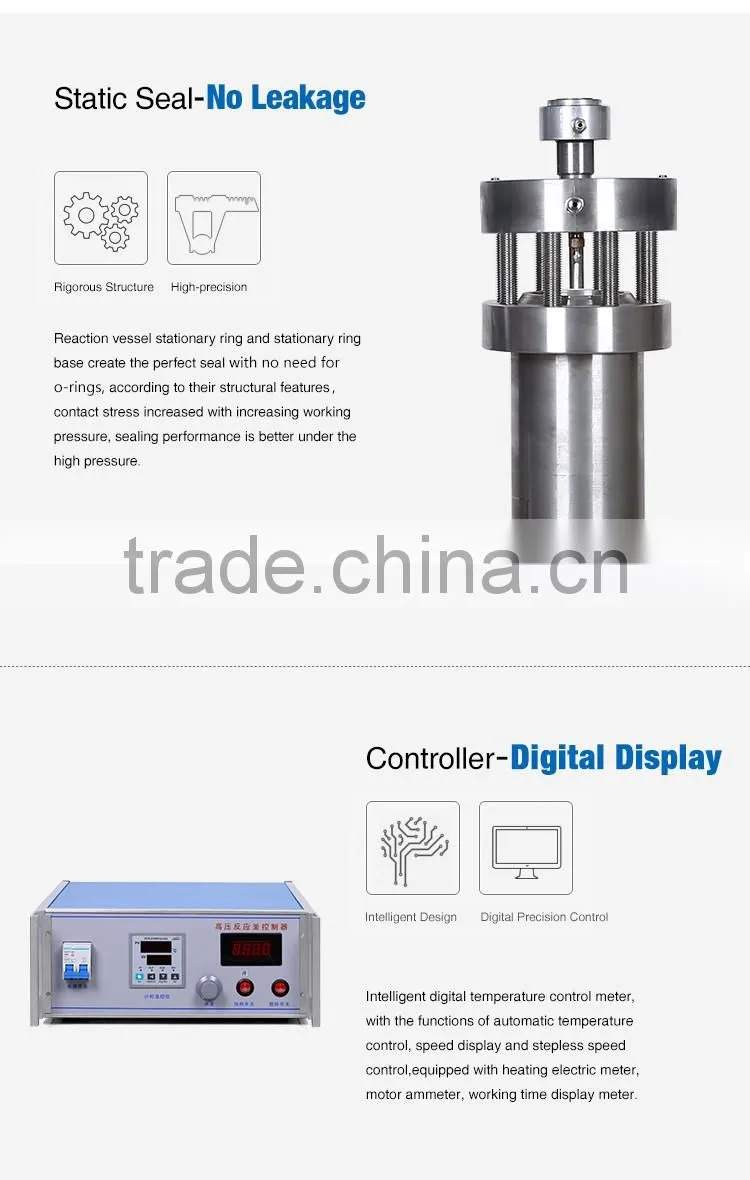

This device mainly adopts static sealing structure, there is a magnetic coupling connected the agitator and motor. Due to its non-contact transmission torque, with static seal replaced dynamic seal, can completely solve the leakage problem in stirring, makes whole media and mixing parts completely in absolute sealed state in working. Therefore, our small autoclave is more suitable for all kinds of stirring reaction such as inflammable, explosive, toxic, precious media and other chemical medium of strong penetration which is the ideal non-leak reaction equipment to vulcanization, fluorination, oxidation in petroleum, chemical, organic synthesis, polymerization of polymer materials, food and other technology.

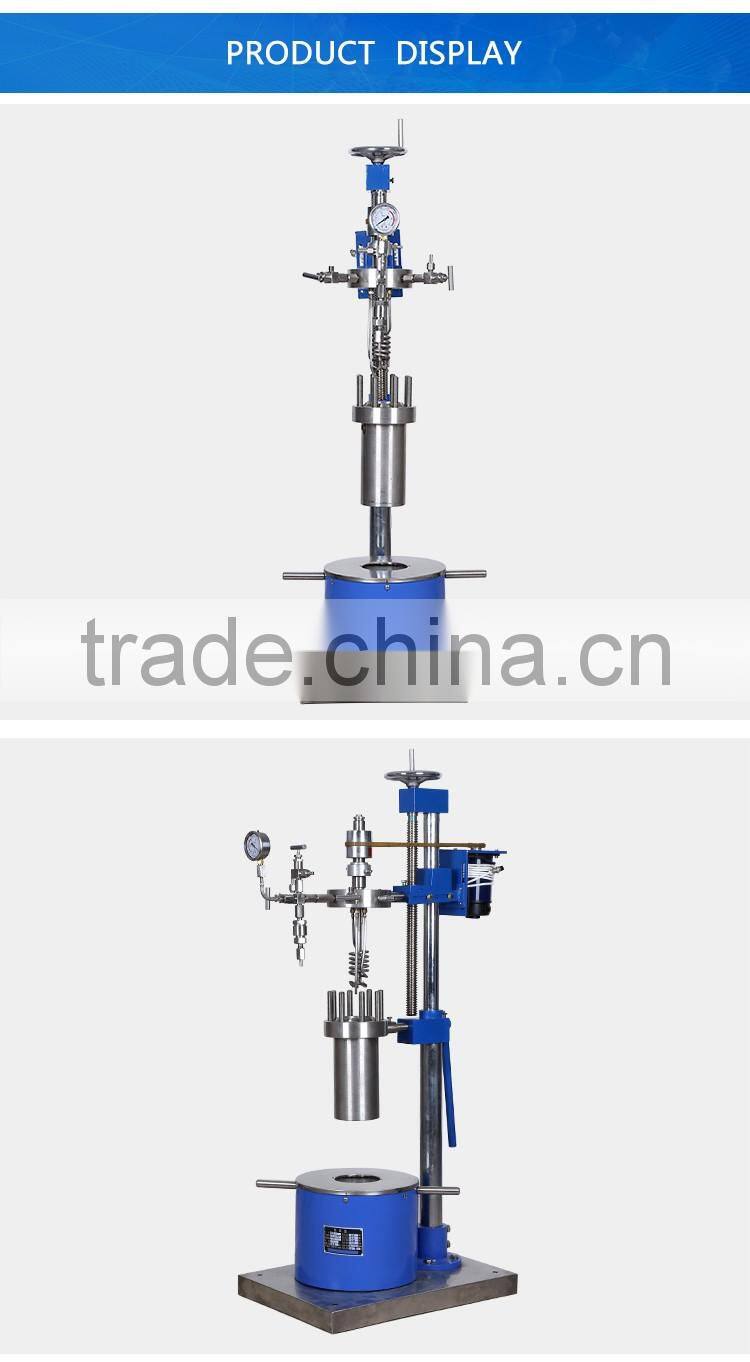

CJF pictures

CJF technical parameter

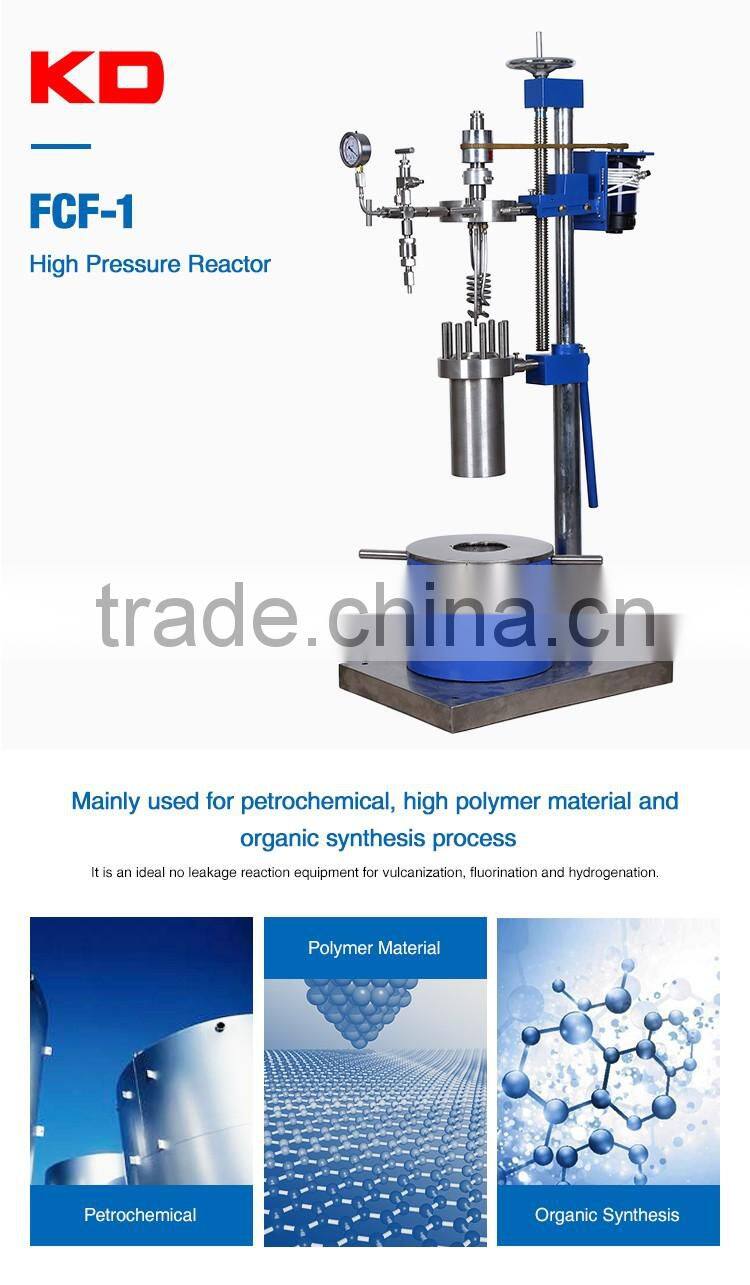

FCF product details

zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central China. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift table and so on.

1. Can the capacity be customized?

Yes.

2. What’s the largest volume you can manufacture?

3000L.

3. What kinds of reactors do you have?

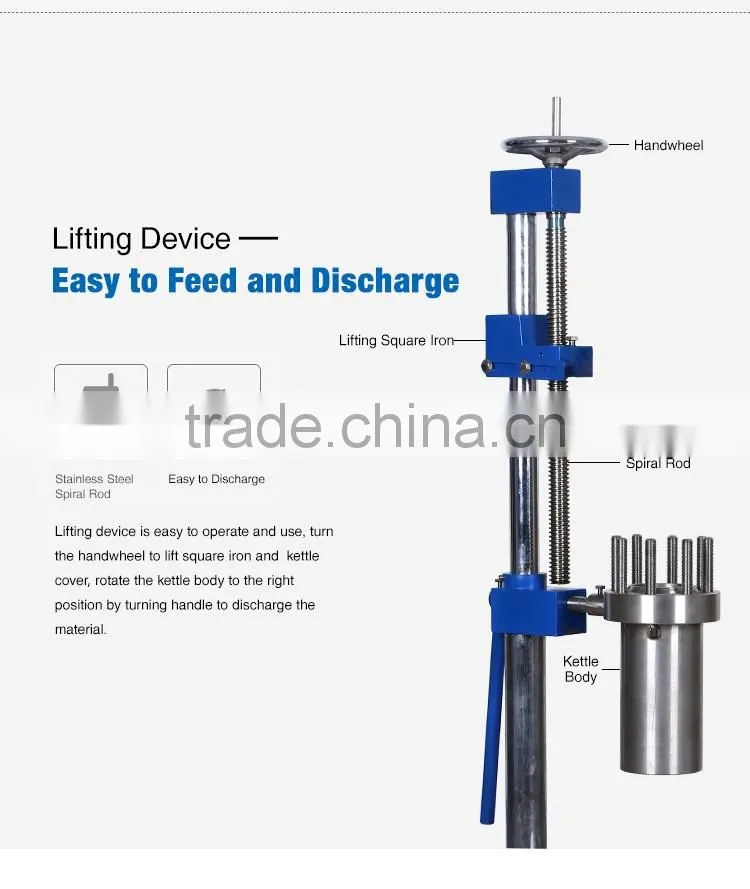

Lifting-FCF series; Non lifting-CJF series

4. Can you match liner?

Yes,we can supply suitable PTFE and ceramic liners for your models.

5. The maximum pressure and temperature can reach?

Usually 22Mpa, 350 degree C.

6. What’s reactor made from?

Usually SS304 and SS316.

7. What’s your delivery time?

Common model: 2-5 working days

Customized model: 7-15 working days

8. Can you supplycooling function?

Yes.

9. What’s your sealing mode?

Static sealing, no “O” ring.

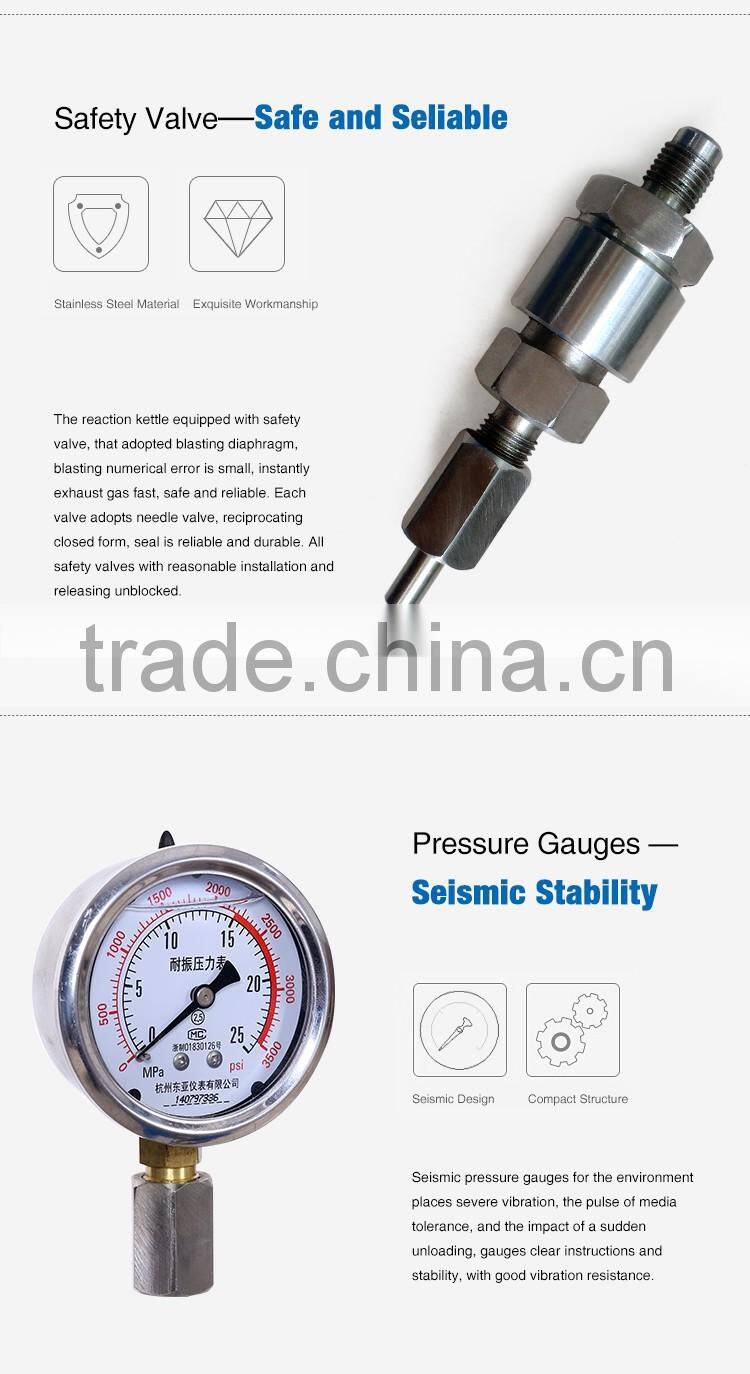

10. Is there safety valve on your device?

Yes.
