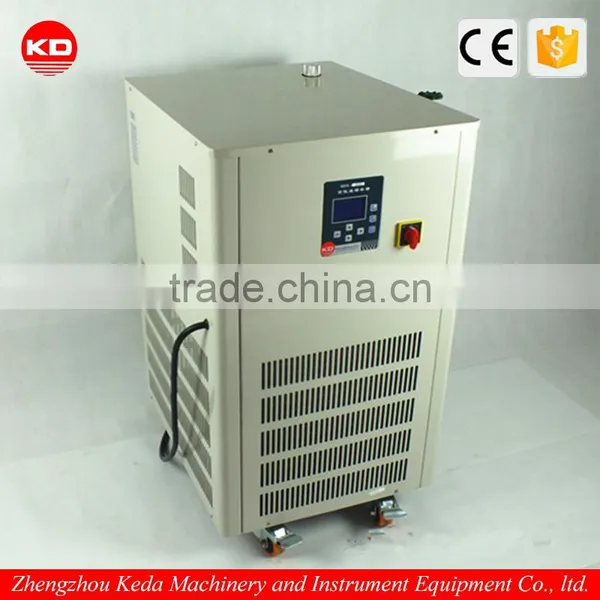

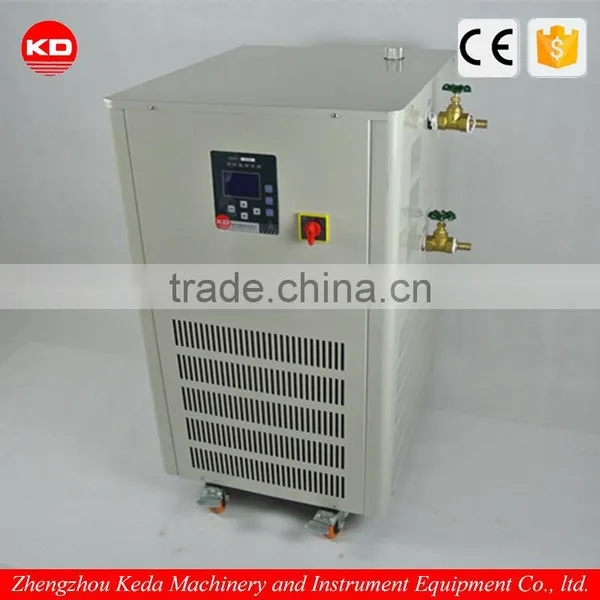

Energy Saving Digital Display Temperature Control System
Specifications:
1.Cycling Device
2.Environmental protection
3.Digital display
4.Manufacturer
5.Heating and cooling in one
6.Safe
Functions:
1. An innovate design on the base of low temp cooling liquid circulating pump and high pressure oil bath.
2. Widely used Colleges and universities, environmental protection, biochemical, medical, chemical industry, scientific research, etc.
Features:
1. New device owning Low temp instrument and high temp device to itself.
Under the market research and careful development, our company finishes the products.
2. Adopt international original famous sealing compressor, reliable quality, and advanced performance.
3. Refrigeration compressors and other key parts take advantage of products with high quality machines and have high reliability and efficiency.
4. Heating device is anti-pressure stainless steel capacity ,can be anti-corrosion, rust, protect low & high temp liquid pollution.
5. Digital display, clearly, operate easily.
6. Multi-function(cooling,heating,circulating),reasonable power ,save lab space.
7. High temp control use air switch press, solid relay, efficient and intelligent instrument, so start and operate is no sparkle, safely. Also it has Delay, overheating,
overvoltage etc many protection function.
Technical Datas:
Model | 20/-30/200°C | 30/-30/200°C | 50/-30/200°C | ||
Liquid Tank Capacity (L) | 20 | 30 | 50 | ||
Heating Volume (L) | 3 | 3 | 10 | ||
Working Conditions | Temp. Range(°C) | -30/200 | |||
The best environment temp(°C) | ≤25 | ||||
Environment Relative Humidity | ≤60 | ||||
Voltage | 380V±10% /50HZ | ||||
Input Power (KW) | 9.2 | 10 | 12 | ||
Media Viscosity | 500C·S·≤t | ||||
The main property and components | Temp Display | Digital Display | |||
Temp Control Accuracy | ±2 | ||||
Sensor Dividing | p1 100 | ||||
Temp Set Way | set freely at temp arrangement | ||||
Instrument Adjusting Range(°C) | -100 to 400 | ||||
Protection | Delay,leakage,overcurrent, overheat | ||||
Refrigeration System | Power | 2.2KW | 3KW | 4.4KW | |
Cooling Media | R22 | ||||
Circulating Pump | Power | 370W | |||
Flow(L/min) | 50 | ||||
Pressure(kpa) | 1.2 | ||||
Shipment Safe and Efficient
Packaging detail: In WOODEN CASE or as your requirements.
Delivery detail: In 3-7 working days after payment.
Warranty & Service
1. One year warranty service after the product was sold.
2. In the warranty period, users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. Please read the product manual carefully before using this product. Operating the product strictly according to the operation method.
5. Users encounter problems when using our products , pls contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
