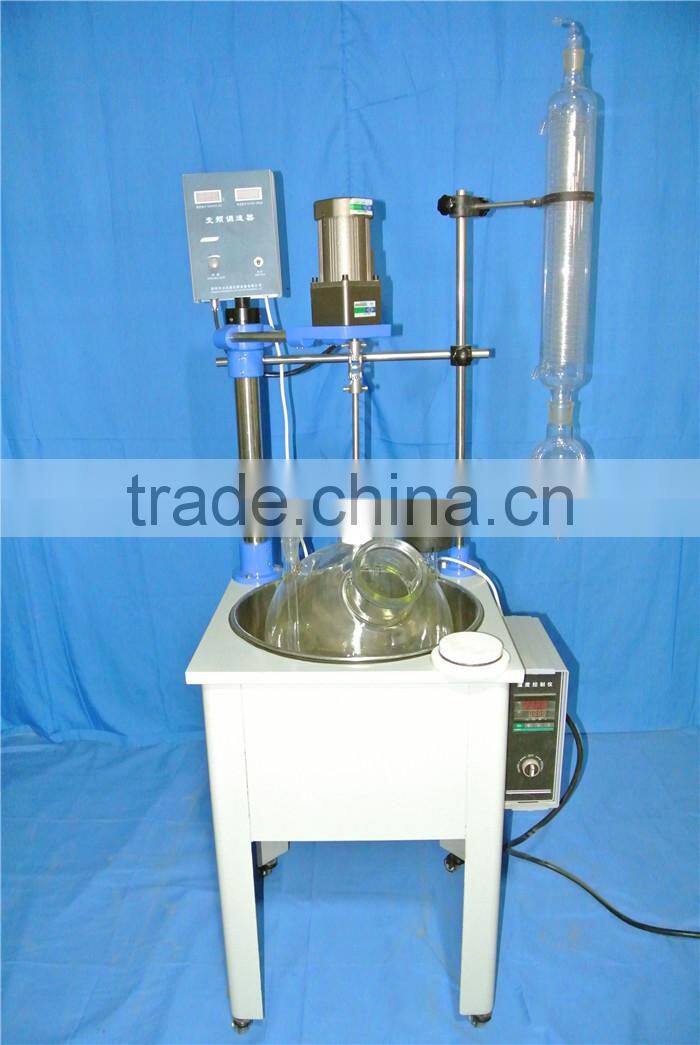

Factory Price Stirred Tank Reactor
Function introduction of stirred tank reactor
Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a closed system on the whole.
Circulating water vacuum pump can pump into the reactor sorts of liquids and gases. The reflux or distillation is possible under different temperature state.
The single layer glass reactor has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state,fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.
Features of stirred tank reactor
1. GG17 high~borosilicate glass with nice physical~chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.
2. Precision Mechanical seal stirring to keep high vacuum degree.
3. Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.
4. Frequency control speed gear motor, smooth running,high torque, automatic booster , no spark, noise free, long life.
5. SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure
6. Circulating water/oil bath, heating mantle can supply the heating origin; Cooling mode machine: cool chiller, convenient and practical
7. Scientific & innovative structure, practical, strong,
Heating principle of stirred tank reactor
The heating coil in the tank heat the transfer medium-water or oil directly,(heating mantle heat the body kettle). Then the hot water or oil pass its hot energy to material in the kettle and stirring at the same time.
Ancillary equipment of stirred tank reactor
Circulating water vacuum pump: Used to provide a vacuum source
Cool chiller: Reflux, condensation and cool the material
Technical Parameters of stirred tank reactor
Model | F-1L | F-2L | F-3L | F-5L | F-10L | F-20L | F-30L | F-50L | F-100L |
Voltage(V) | 220V/50HZ | ||||||||
Stirring Power(W) | 40 | 60 | 120 | 250 | |||||
Stirring Speed(rmp) | 0-1000 | 60~600 | |||||||
Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
Heating Power(KW) | 0.4 | 0.8 | 1.3 | 2 | 3 | 4 | 5 | 5 | 7.5 |
Temperature Using Range | -80℃-250℃ | ||||||||
Motor Torque |
|
|
|
| 1000g/cm | 1200g/cm | 1200g/cm | 1500g/cm | 3000g/cm |
Voltage 110V or 380V is available
Mixing power, torgue can be customized according to customers’ demands.
Refrigeration components are optional.
Notes of stirred tank reactor
1. Please check whether the glass kettle intact or not,whether each interface is consistent or not. Please handle with care.
2. Wipe each interface with a soft cloth (napkin available),then apply a little vacuum grease.( Vacuum grease must be covered to prevent gray sand from entering after using.)
3. Each interface can not be over-tightened,loosening them periodically, avoid long-term furrowed causing connector tightened deadly.
4.First turn on the power switch, and then let the machine run from slow to fast speed. When the reaction is over, let the machine into static state , then off the switch.
5.Every PTFE switch can not be over-tightened, which is easy to damage the glass.
6.Please wipe the various traces of oil, stains, solvents left on surface to stay with a soft cloth after you completing the experiment.
7.After the shutdown, loosen each PTFE switch. Long time keeping still in working condition causes PTFE piston deformation.
8.Clean seals regularly.Method: Remove the seal ring, check the shaft plot dirt or not, wipe it with a soft cloth,then coat with a little vacuum grease, and re-install it to keep the shaft and seal smooth.
9.Keep the electrical parts dry, non-moisture!!
10.It’d better purchase the original authentic parts,use other machine parts may cause fatal damage.
11.Any repair or inspection be sure to cut off power and water.
Packaging
-Export wooden or carton packing
-Both neutral and customized packaging can be available
Shipping
-We can ship the goods to you per the below shipping methods and you can choose the appropriate one
based on your timeline and budget. Also you can definitely choose to use your own shipping agent.
Keda Machinery and Instrument Equipment Co.,Ltd.Our company sells recycled water vacuum pumps, rotary evaporators,thermostatic magnetic stirrers, glass reactors, low temperature cooling circulating pumps, oil baths, electric mixers, ovens, water baths, freeze-drying machines, electronic energy-saving temperature control devices, smart thermostats and electric experimental equipment sets.
With solid strength, reasonable prices and excellent services, our company has established long-term cooperative relationships with a number of enterprises.
1,What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade.
2,What's the size do you have?
We can offer you 1L,2L,5L, 10L, 20L, 30L, 50L, 100L,150L.
3,How many kinds of your glass reactor?
Two types: jacketed glass reactor and single layer glass reactor.
Explosion proof is avaliable.
4,What’s the heating mode of single layer glass reactor?
Oil/water bath heating, and heating mantle.
5,Can you offer the supporting facilities?
Yes, we can offer you the vacuum, heating and cooling system as you demand.
6,What's the minimum order quantity?
One set at present.
7,What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
8, How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.For small orders, we will send the goods by International Express like Fedex, DHL,TNT or UPS. Usually it takes 3-7work days to arrive. If big quantities we will ship by Ocean transportation, it takes one month to arrive.
If urgent, you can select shipping by Air, but freight charge will be more expensive.
9, How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
