Performance principle

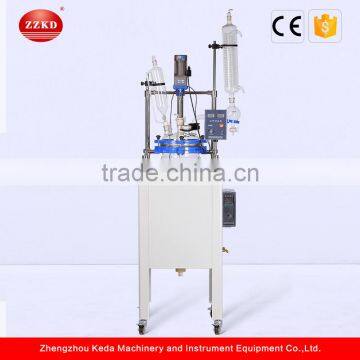

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperaturecondition. It is also a colsed system on the whole.
Circulating water vacuum pump can pump into the reactor sorts of liquids and gases. The reflux or distillation is possible under different temperature state.
The single layer glass reactor has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state,fast temp. rising, accurate controllers.1~50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.
Features
1.GG17 high~borosilicate glass with nice physical~chemical properties; experiment temperature -100 to 400 degree; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.
2.Precision Mechanical seal stirring to keep high vacuum degree.
3.Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.
4.Frequency control speed gear motor, smooth running,high torque, automatic booster , no spark, noise free, long life.
5.SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure
6.Circulating water/oil bath, heating mantle can supply the heating origin; Cooling mode machine:cool chiller, convenient and practical
8.Scientific & innovative structure, practical, strong.
9.Explosion proof is optional.
Technical Data:
Model | F-1L | F-2L | F-3L | F-5L | F-10L | F-20L | F-30L | F-50L | F-100L |
Voltage(V) | 220V/50HZ | ||||||||
Stirring Power(W) | 60 | 120 | 250 | ||||||
Stirring Speed(rpm) | 0-1000 | 60~600 | |||||||
Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
Heating Power(kW) | 0.4 | 0.8 | 1.3 | 2 | 3 | 4 | 5 | 5 | 7.5 |
Temperature Using Range | -80℃-250℃ | ||||||||
Voltage 110V or 380V is available
Mixing power, torgue can be customized according to customers’ demands.
Refrigeration components are optional.
Details
Ancillary equipment
Low temperature cooling liquid circulating pump

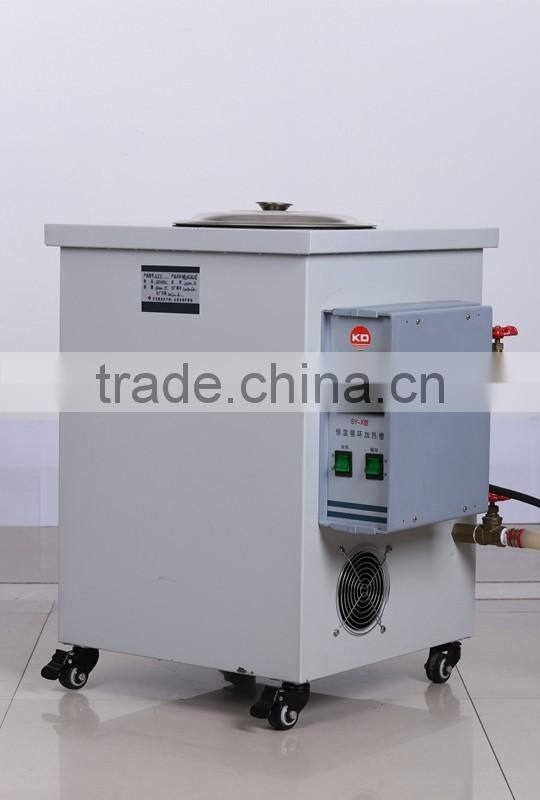

High temperature thermostatic circulating oil/water bath
We have the most convenient and efficient transport partners, to ensure that your goods sent to your hands in the shortest time.
zhengzhou Keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central China.The main products include glass reactor, water circulating vacuum pump, freeze drying machine, rotary evaporator, low temp., cooling liquid circulating pump and soon.
Our company has become a pacesetter of the lab instrument in China.Our products have been exported to the countries such as the UK, Greece, Poland, theUS, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India,Singapore, Malaysia and so on earning wide recognition among the users.
Though our foreign trade is not for long, we do have a history of more than 30 years ofour domestic trade. To assure the good quality & good service is our consistent aim.
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in China for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
CE Certification
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
