Specifications
Condition:New
Capacity(t/h):1-1000TPH
Warranty:12 months
Certification:ISO9001:2008,CE
Application:Mining,Quarry
Weight:According to the model

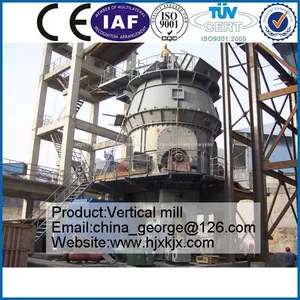

professional raymond vertical mill
raymond vertical mill is a kind of new-typed moderating-speed stone powder manufacturing machine, which is developed on the basis of RP. It is getting perfect by low consumption, low investment, environment friendly, small occupation area, and more efficient than the traditional mill.
Raymond Mill parts
Raymond mill consists of motor, reducer, case, milling device, separator, outlet, coal feeding pipe, loading device, control box and sealing apparatus. The fittings are all of superior performance in the world at present.
raymond vertical mill application
Raymond mill for mineral ore grinding plant
Raymond mill is mainly applied to the powder processing in mine ore mining plant. It can produce powder from more than 280 kinds of non-flammable and non-explosive mineral materials with Mohs hardness below 7 and humidity below 6%. The final size is between 0.613mm—0.044mm(100 mesh to 325 mesh). In south africa, raymond mill is also used for gold processing plant. Raymond grinder mill is the optimal milling equipment in electric power, kaolin, coal and cement industries.
Raymond mill for calcium carbonate powder production line
In the calcium carbonate grinding plant, raymond mill is mainly used for grinding stones into powder. For example, in the feldspar grinding plant, it is used to grind crushed feldspar into powder whose fineness meet the requirement. In this grinding process, it can also achieve drying effect.
Raymond mill for dolomite powder manufacturing
In the dolomite powder production line, it is used as stone powder grinding machine for crushing stones into powder with 100 mesh and 300 mesh. In India, raymond mill is used with crushing machine for grinding dolomite stones into powder.
raymond vertical mill main features
The whole raymond mill plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
Compared with other milling plants, passing ratio achieves 99%, which other mill can not reach.
Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
Main parts of the whole plant are made from cast and steel of high quality. Such strict techniques insure the durability of whole plant.
raymond vertical mill technical data
Roller Diameter(mm):Φ270×140-Φ410×210
Ring Diameter(mm):Φ830×140-Φ1280×210
Rev:103-130
Max.Feed Size:20-30
Discharging Size:0.045-1.6
Capacity:1.2-11
Machine Size:5300*4100*5200-9200*7250*9700
For More Details Please do not hesitate to contact us via the following method
Email:china_george@126.com
