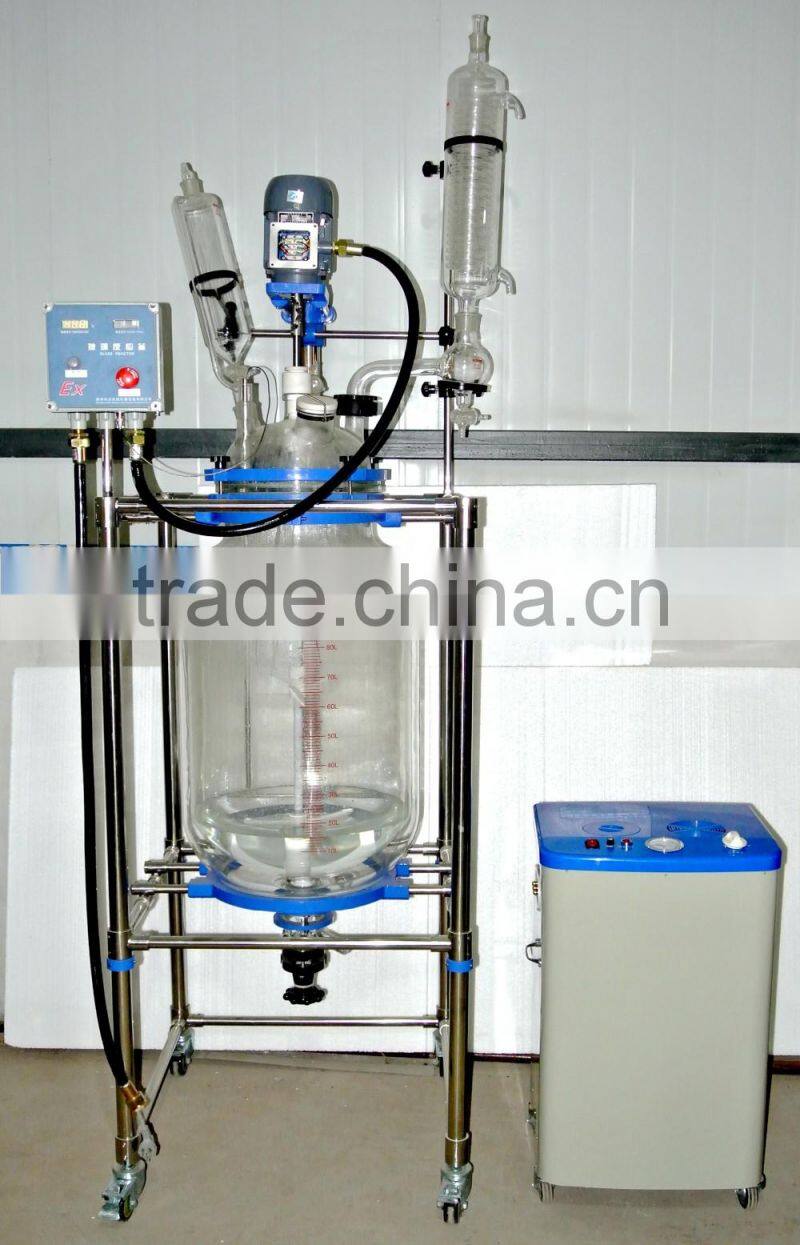

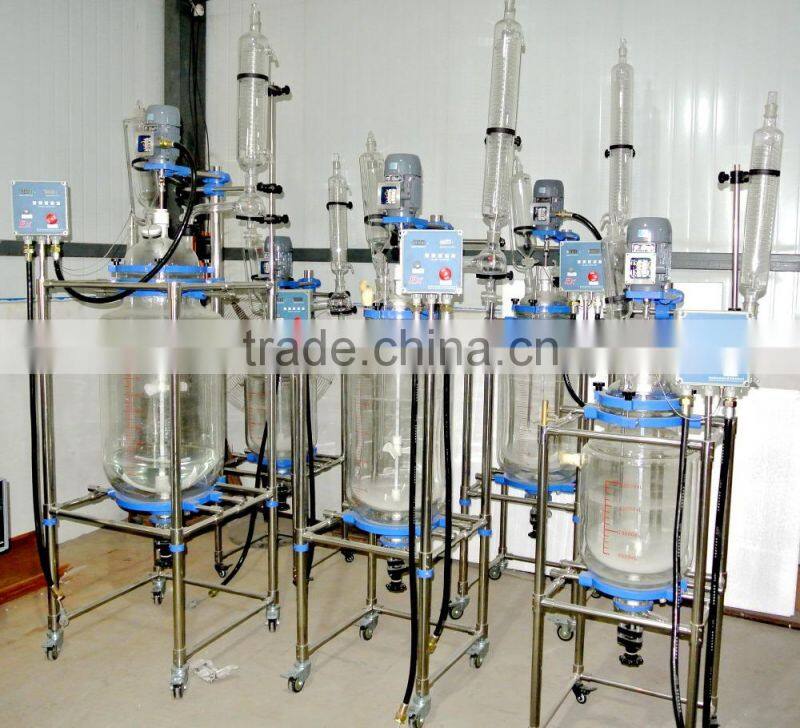

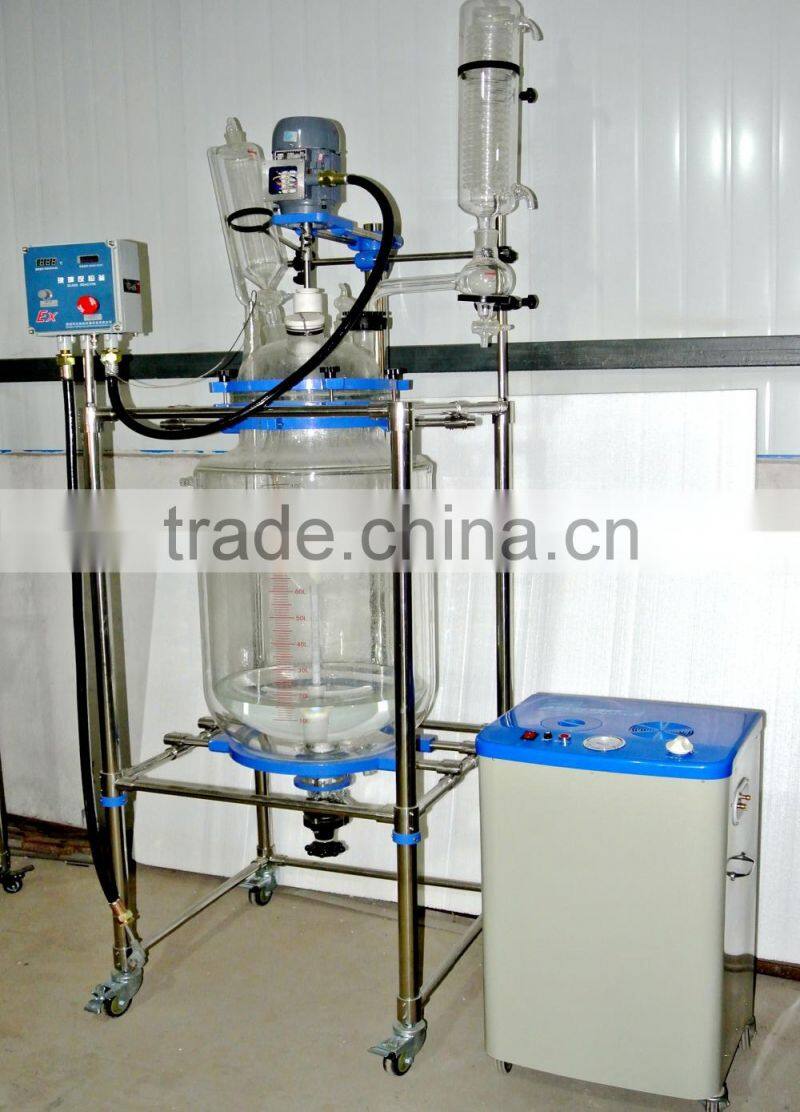

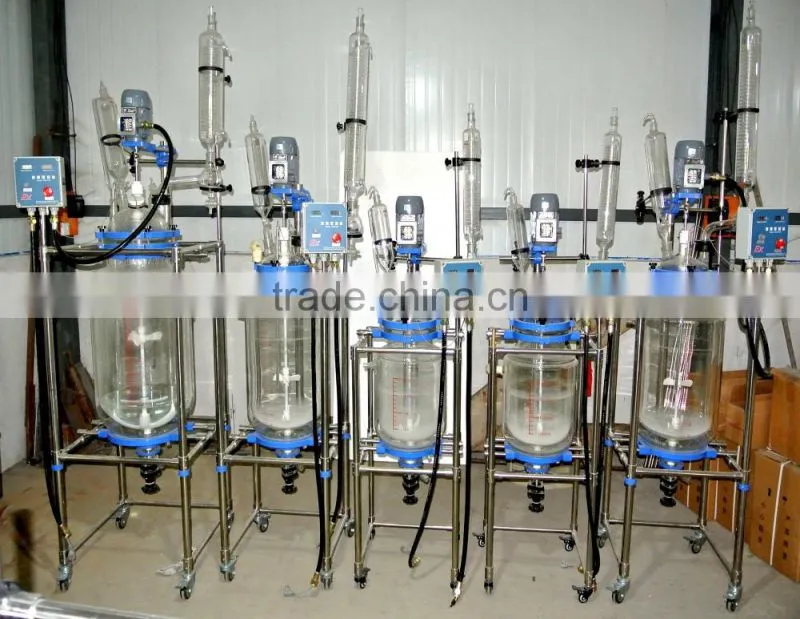

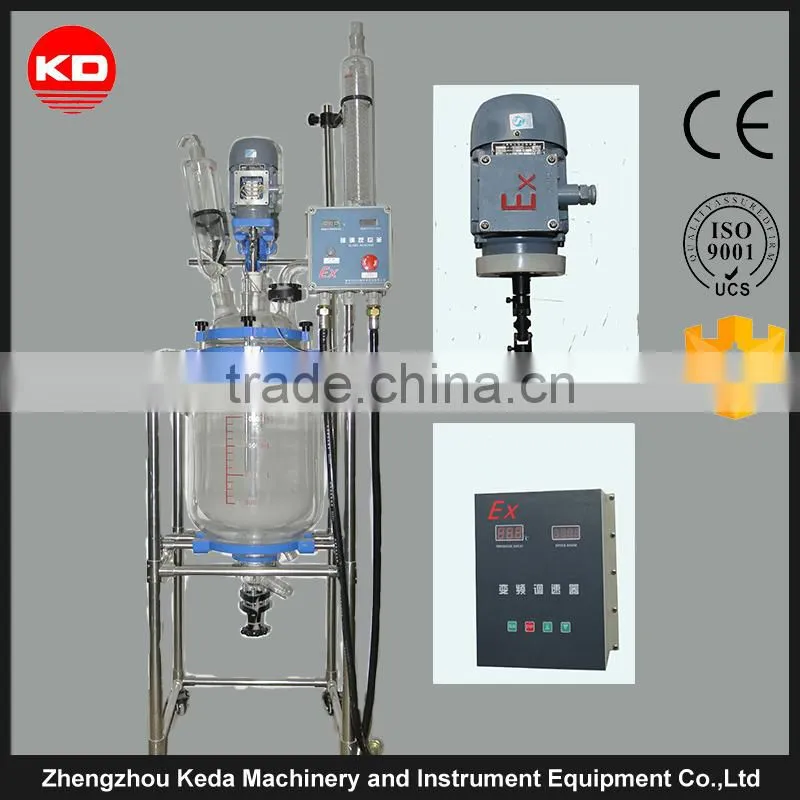

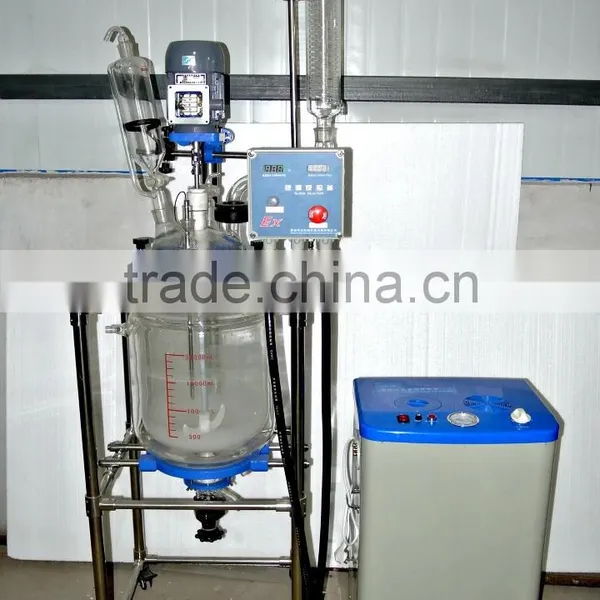

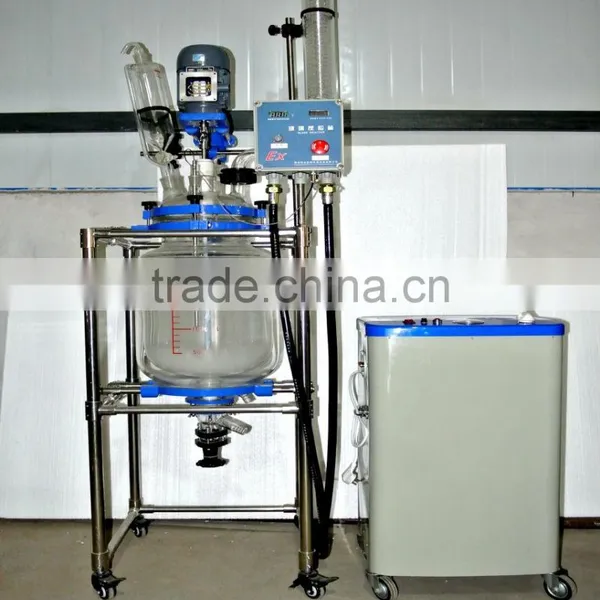

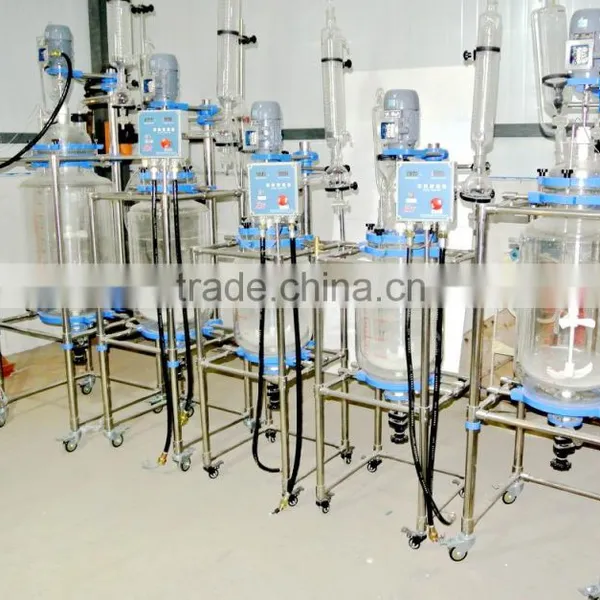

Explosion-proof Chemical Process Batch Glass Reactor
- 600 Set / Sets per Month
- Tianjin Dalian Qingdao Lianyungang Ningbo Guangzhou etc.
- T/T L/C D/P D/A Credit Card PayPal
- Side Entry Mixing Equipment
- Small Jacketed Glass Reactor Double Layer Reaction Systems for Laboratory
- Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
Product Details
Condition: | New | Automatic Grade: | Automatic | Type: | Tubular Reactor |
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | S-10L |
Voltage: | 220V/50HZ | Power(W): | 180-250W | Dimension(L*W*H): | 700*650*2450 mm |
Weight: | Gross weight: 91kg | Certification: | CE ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction
ZZKD jacketed glass reactor is made according to customers actual requirements and new standards. It absorbs the advantages of similar products at home and broad. Reagents are set in the inner layer of double-layer glass reaction kettle, at the same time, vacuum can be taken out and mixing speed be adjusted. Interlayer can lead in refrigerating fluid, water and high temperature liquid to heat and cool the materials. It can be used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials.
Features
1. High borosilicate glass has good physical and chemical properties.
2. It can be used in wide temperature range from high temperature (300℃) to low temperature (-80℃).
3. It can work in constant pressure and vacuum, vacuum degree is below 0.098MPa in quiet situation.
4. Digital display of mixing speed, frequency conversion, and constant speed mixing system, work steadily.
5. The mechanical sealing method and materials between mixer shaft, PTFE mixing paddle; separating kettle cover is convenient to disassemble, clean and install.
6. Corrosion-resistant discharge valve is without dead space design.
7. The cooling or heating solution in the inter-layer can be completely removed after reaction.
8. The whole structure is novelty, practical and beautiful.
9. Explosion proof is optional.
Technical parameter
Model | S-10L | S-20L | S-30L | S-50L | S-100L |
Power supply | AC220V | AC220V | AC220V | AC220V | AC220V |
Stirring power(W ) | 120 1/3 Gear Motor | 120 1/3 Gear Motor | 120 1/3 Gear Motor | 120 1/3 Gear Motor | 180 1/3 Gear Motor |
Rotary speed(rpm) | 0~600 (Max.1400) | ||||
Torque(g/cm) | 1000 | 1200 | 1200 | 1500 | 3000 |
Capacity(L) | 10 | 20 | 30 | 50 | 100 |
Discharge method | Discharge from bottom, glass discharge valve. | ||||
Frame | All 304 stainless steel frame. |
* Voltage can be customized to 110V and 380V.
* Stirring and torque can be customized to customer requirements.
* Temperature can be customized to 200℃.
* Refrigeration components are optional.
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in China for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
CE Certification
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
1. What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade
2. What's the size do you have?
We can offer you 1L, 2L, 5L, 10L, 20L, 30L, 50L, 100L,150L.
3. How many kinds of your glass reactor?
Two types: jacketed glass reactor and single layer glass reactor.
Explosion proof is avaliable.
4. What’s the heating mode of single layer glass reactor?
Oil/water bath heating, and heating mantle
5. Can you offer the supporting facilities?
Yes, we can offer you the vacuum, heating and cooling system as you demand.
6. What's the minimum order quantity?
One set at present.
7. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
8. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.For small orders, we will send the goods by International Express like Fedex, DHL,TNT or UPS. Usually it takes 3-5 working days to arrive. If big quantities we will ship by Ocean transportation, it takes one month to arrive. If urgent, you can select shipping by Air, but freight charge will be more expensive.
9. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
