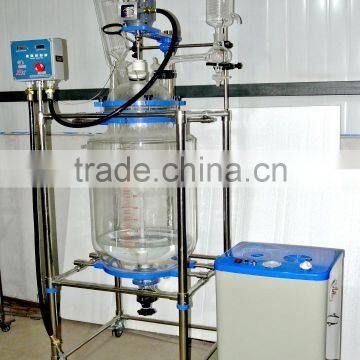

KD Ex Multi Function Jacketed Glass Reactor

Specifications

1.large discharge valve

2.high borosilicate glass reactor

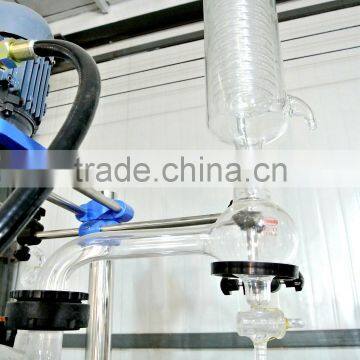

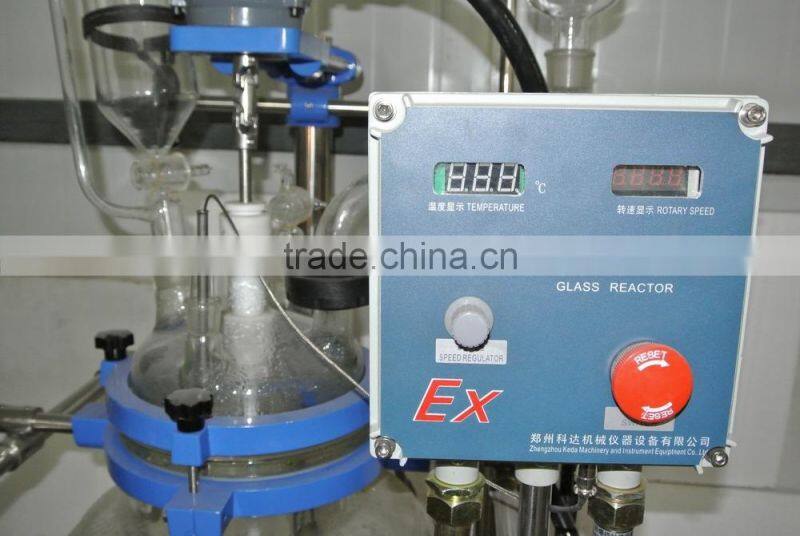

3.distillation and backflow

4.easy to move

5.explosion-proof motor

KD Ex Multi Function Jacketed Glass Reactor

Our company sells recycled water vacuum pumps, rotary evaporators, thermostatic magnetic stirrers,glass reactors, low temperature coolingcirculating pumps,oil baths,electric mixers, ovens, water baths, freezedrying machines,electronic energysaving temperature control devices,smart thermostats and electric experimental equipment.

Product Introduction:

According to the customer's requirements and standard, we manufacture frequency control speed jacketed glass reactor which has many functions to satisfy kinds of experiments. That is, stirring reaction, high temperature reaction, low temperature reaction, constant speed good mixing reaction, distillation, refluction, condensation reaction, vacuum environment operating, dispensing material etc.

Features:

1.Jacketed 10L – 100L Liter Process Glass Vessels

2.Operational Range -60°C up to 200°C, Full Vacuum to 15psig

3.Solid Glass with PTFE Propellers, PFA/Steel, Glass Lined Steel or “High Alloy” Metallic Agitators

4.Dry Running PTFE with Kalrez O-ring shaft seals or Industrial Process Mechanical Seal arrangements

5.Cost Effective Air Operated or Duty Rated Electrical Motors

6.Interconnecting Piping of Process Glass or PFA Flare and Sentinel’s Glass Flare System

7.Jacketed, Coil Heat Exchanger, Process Glass Feed and Receivers

8.Many other options including Phase Separation, Solids Addition, Reflux Control, Automation, Data Acquisition, and Process Control.

Tech data:

Ancillary equipment:

Circulating water vacuum pump: To provide a vacuum source

Cool chiller: low temperature reaction and Reflux, condensation

Circulating water/oil bath: Thermal power

High and low temperature machine: high and low temperature experimentreaction

Reaction kettle for double glass design, within layer put reaction material, while may also pumping vacuum do mixing reaction;.sandwich may connected heat source (frozen liquid, water or electric sets) do  cycle heating or cooling reaction, may according to using requirements in atmospheric or negative pressure conditions, for mixing reaction, and can control reaction solution of evaporation and return.

Packing:

Working principle:

 "Quality casting brand,Professional achieves service"
