Factory Lab Test Use Freeze Drying Equipment
- Qingdao Shanghai Lianyungang Ningbo Guangzhou etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Vacuum Drying Equipment | |
Place of Origin | Henan, China | Brand Name | ZZKD | |
Model Number | 10N | Voltage | 220V 50Hz | |
Power(W) | 800w | Dimension(L*W*H) | 550*550*300 mm | |
Weight | G. W. 85Kg | Certification | CE ISO | |
Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

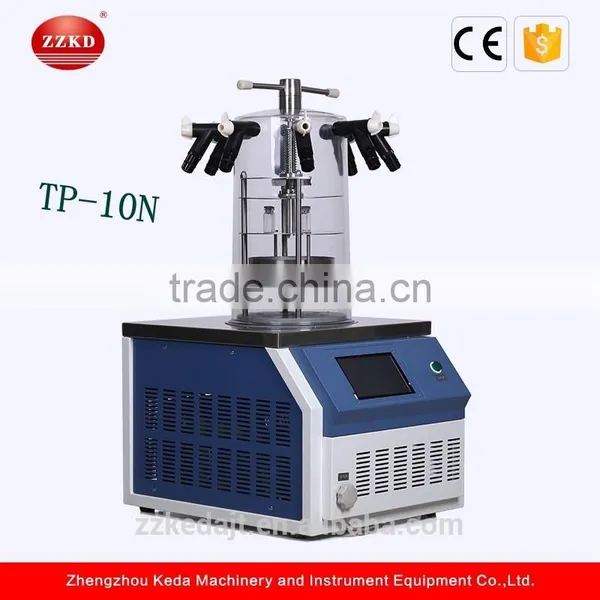

Factory Lab Test use Freeze Drying Equipment
Characteristics
♦ Accord with international standards of Green environmental friendly;
♦ 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
♦ U disk Can storage lyophilized data;
♦ Upload software can print curve;
♦ Embedded circuit design, 128 M FLASH, can save dozen times lyophilized data;
♦ Large opening trap, no coil inside, with samples pre-freeze function;
♦ Imported refrigeration compressor, low noise;
♦ Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean;
♦ Transparent Bell type drying room, secure and ocular;
♦ Stainless steel sample holder, common sample plate spacing adjustable;
♦ Small size and easy to operate;
♦ Nitrogen inflation valve within.
Technical parameter
Factory Lab Test use Freeze Drying Equipment | ||||
10N | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature | <-56℃ | |||
Freeze Area(m2) | 0.12 | 0.08 | 0.12 | 0.08 |
Plate Load Capacity(L) | 1.5 | 1 | 1.5 | 1 |
Ability to Capture Water(Kg) | 3 | |||
Vacuum Degree | <10Pa | |||
Machine Dimension (W*H*D)mm | 450*580*(380+450)
| |||
Sample Tray Size(mm) | 4×Φ200 | Ø 3×180 | 4×Φ200 | Ø 3×180 |
Power(w) | 950 | |||
Power Supply | 110V/60Hz or 220V/50Hz
| |||
Interlayer spacing (mm) | 70
| |||
Cold trap size(mm) | Ø215×160 | |||
The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
| Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 |
| Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 |
N.W./ G.W (kg) | 80/95 | 85/100 | 95/110 | 100/115 |
Packaging
-Wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period ,products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email,we will be ready to provide consulting, maintenance and other services immediately.
zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981,is a famous manufacturer of Lab equipment located in the central China. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift table and so on.
Present, we have become a pacesetter of the lab instrument in China. Our products have been exported to the countries such as the UK, Greece, Poland, US, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India, Singapore, Malaysia and so on.Our products are also earning wide recognition among our users.
Though our foreign trade is not for long, we do have a history of more than 30 years for domestic trade. To assure the good quality & good service is our consistent aim.
