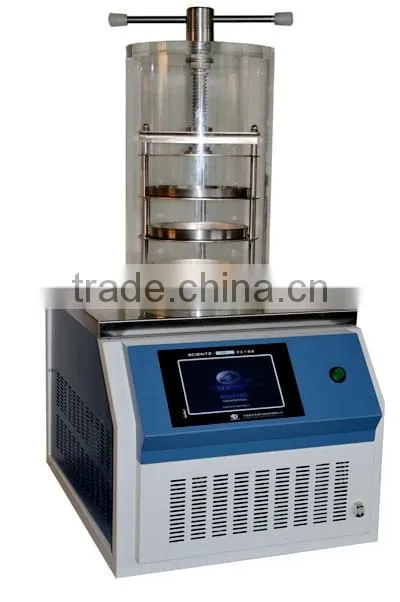

High Efficient Mini Freeze Dryer
- 630 Set / Sets per Month
- Dalian Qingdao Tianjin Ningbo Shanghai Lianyungang etc.
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Freeze Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | ZZKD | Model Number: | 18ND | Voltage: | 220V/50HZ |
Power(W): | 1300W | Dimension(L*W*H): | 700*560*(960+450) mm | Weight: | G.W.150KG |
Certification: | ISO,CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Efficient Mini Ffreeze Dryer
Characteristics
♦ Accord with international standards of Green environmental friendly.
♦ 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve.
♦ U disk Can storage lyophilized data.
♦ Upload software can print curve.
♦ Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data.
♦ Large opening trap, no coil inside, with samples pre-freeze function.
♦ Imported refrigeration compressor, low noise.
♦ Cold trap and control panel were made by stainless steel, corrosion-resistant,
easy to clean.

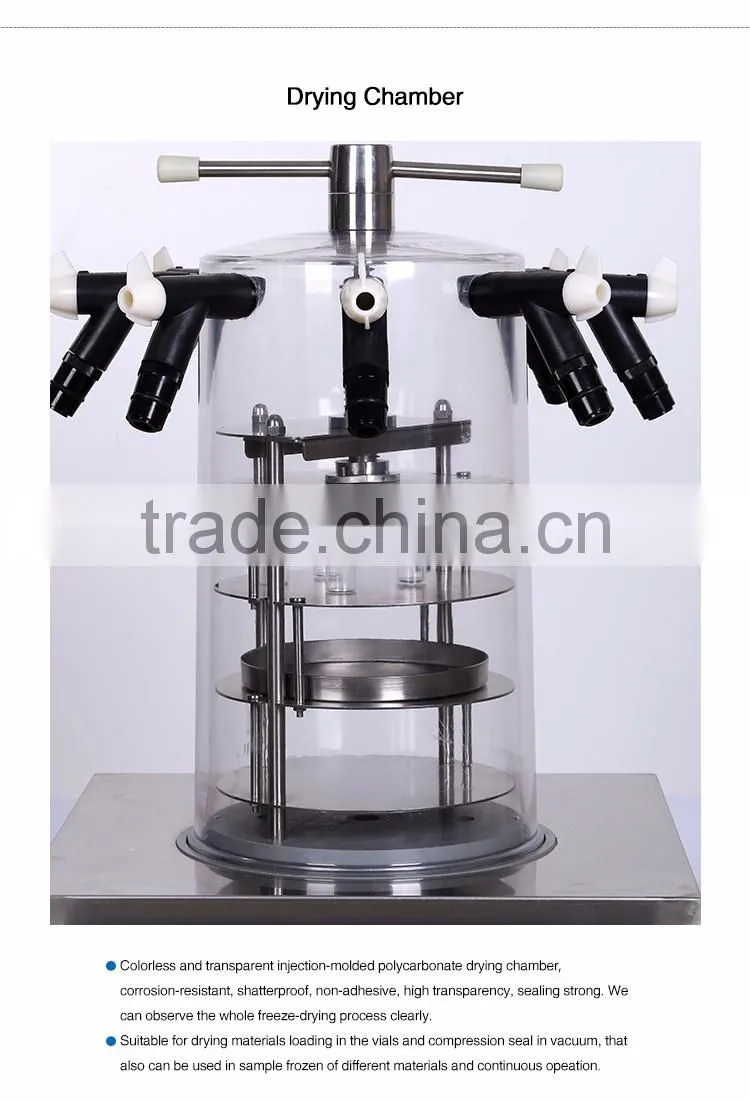

♦ Transparent Bell type drying room, secure and ocular.
♦ Stainless steel sample holder, common sample plate spacing adjustable.
♦ Small size and easy to operate.
♦ Nitrogen inflation valve within.
Application
♦ For fruit
♦ For flower
♦ For chinese medicine
18ND | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature(℃) | <-56 | |||
Freeze Area(m2) | 0.18 | 0.09 | 0.18 | 0.09 |
Plate Load Capacity(L) | 2 | 1 | 2 | 1 |
Ability to Capture Water(Kg) | 6 | |||
Vacuum Degree(Pa) | <10 | |||
Machine Dimension (W*D*H)mm | 700*560*(960+450) | |||
Sample Tray Size(mm) | 4×Φ240 | Ø 3×200 | 4×Φ240 | Ø 3×200 |
Power(W) | 1300 | |||
Power Supply | 110V/60HZ or 220V/50HZ | |||
interlayer spacing(mm) | 70 | |||
Cold trap size(mm) | Ø270×410 | |||
The number of Schering bottles | Ø22: 360 | Ø22: 270 | Ø22: 360 | Ø22: 270 |
Ø16: 740 | Ø16: 560 | Ø16: 740 | Ø16: 560 | |
Ø12: 1320 | Ø12: 990 | Ø12: 1320 | Ø12: 990 | |
N.W./ G.W | 130KG/145KG | 135KG/150KG | 145KG/160KG | 150KG/165KG |
Picture |
|
|
|
Packaging
-Export wooden case or carton packing
-Both neutral and customized packaging can be available
Shipping
-We can ship the goods to you by International Express such as DHL, UPS,TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
The company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven,high-pressure reaction kettle,freeze dryer(lyophilizer), water/oil bath,magnetic heating stirrer,hydrothermal synthesis reactor,heating mantle,lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company;
Location: Henan, China (Mainland);
Year Established: 2009;
Total Revenue : US$1 Million - US$2.5 Million;
Registration No: 410105000067362;
Main Markets: Central America,Mid East,Oceania,Africa,South America and so on.
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in China for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
CE Certification
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5. Can you accept OEM terms?
Sure.
