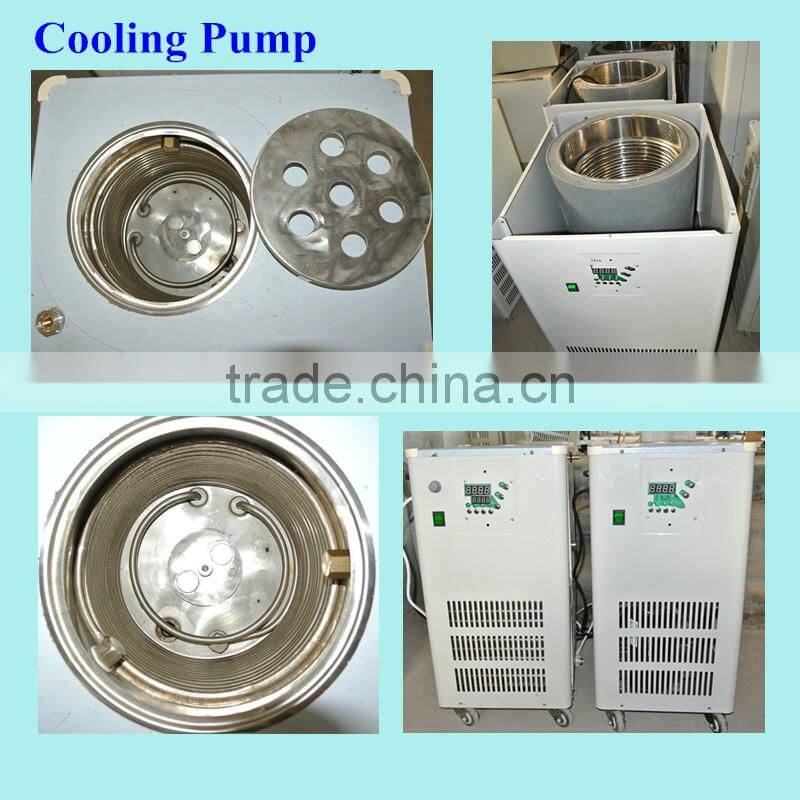

Big Capacity Low Temperature Cooling Liquid Circulation Pump
Function
1. Supporting low temp liquid and low temp bath.
2. It can be combined with Rotary Evaporator, Vacuum Freeze-drying Box, and Multi-purpose Circulating Water Vacuum Pump.
3. Refrigeration compressors and other key parts adopt products with famous brands of the United States, Germany, and France and have high reliability and efficiency.
Features
1. Adoption of low-temperature liquid circulation equipment of compression, reliable quality
2. Refrigeration compressors and other key parts take advantage of products with high quality machines and have high reliability and efficiency

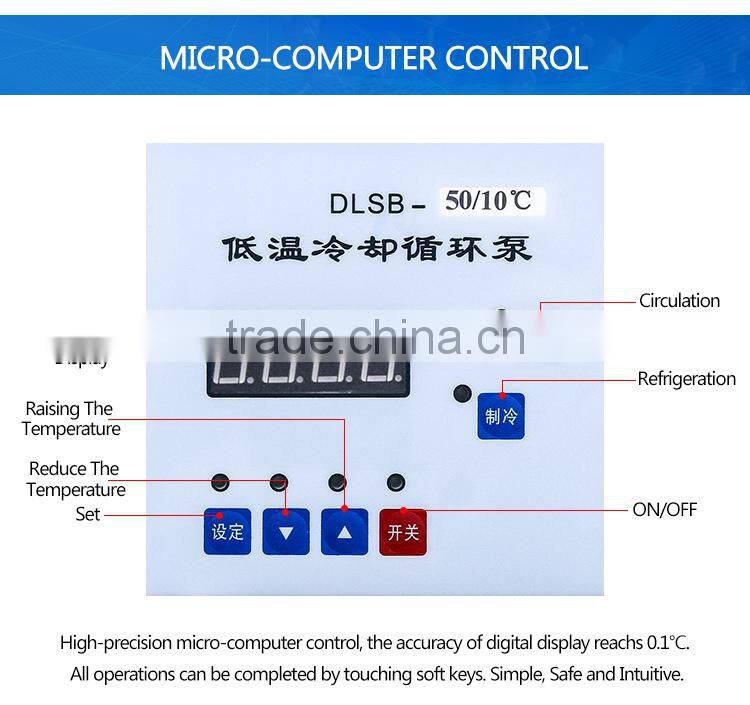

3. Digital setting and display of temperature, clearly
4. Cooling capacity, fast speed, improving work efficiency
5. It can availably protect precision equipments under water shortage, water, water pressure, water temp weak condition.
According to the volume of cryogenic cooling bath circulation pump divided into: 5L,10L,20L,30L,40L,50L,60L,80L,100L.
Each volume according to the lowest temperature can divide into:
-10℃,-20℃,-25℃ ,-30℃,-40℃,-60℃, -80℃,-120℃.
Technical data
Model | DLSB-50/10 | DLSB-50/20 | DLSB-50/30 | DLSB-50/40 | DLSB-50/60 | DLSB-10/80 | DLSB-10/120 | |
Refrigerant Performance | Volume | 50L | ||||||
No Load Min. Temp. (℃) | -15 | -24 | -32 | -42 | -62 | -82 | -122 | |
Cooling Capacity (W) | 9428-4188 | 15786-3694 | 7549-3540 | 10364-2565 | 1442-2780 | 1210-2620 | 1298-2562 | |
Circulating Performance | Flow(L/min) | 40 | ||||||
Lift(m) | 19-22 | |||||||
Temperature Control Performance | Coolant Temp. (℃) | -10 | -20 | -30 | -40 | -60 | -80 | -120 |
Temp. Precision (℃) | ±0.2 | |||||||
Working Condition | Power Supply | 380V/50Hz | ||||||
Environment Temp (℃) | 25 | |||||||
Environment Humidity | (60-80%) Ventilation | |||||||
Machine Dimensions | Length (mm) | 650 | 700 | 900 | 1270 | |||
Width (mm) | 550 | 600 | 700 | 900 | ||||
Height (mm) | 950 | 980 | 1140 | 1140 | ||||
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Packing
