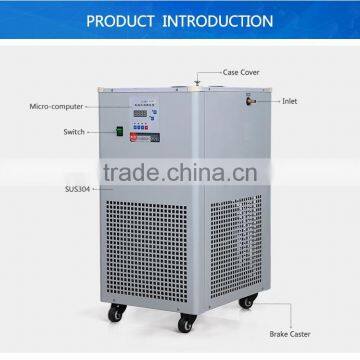

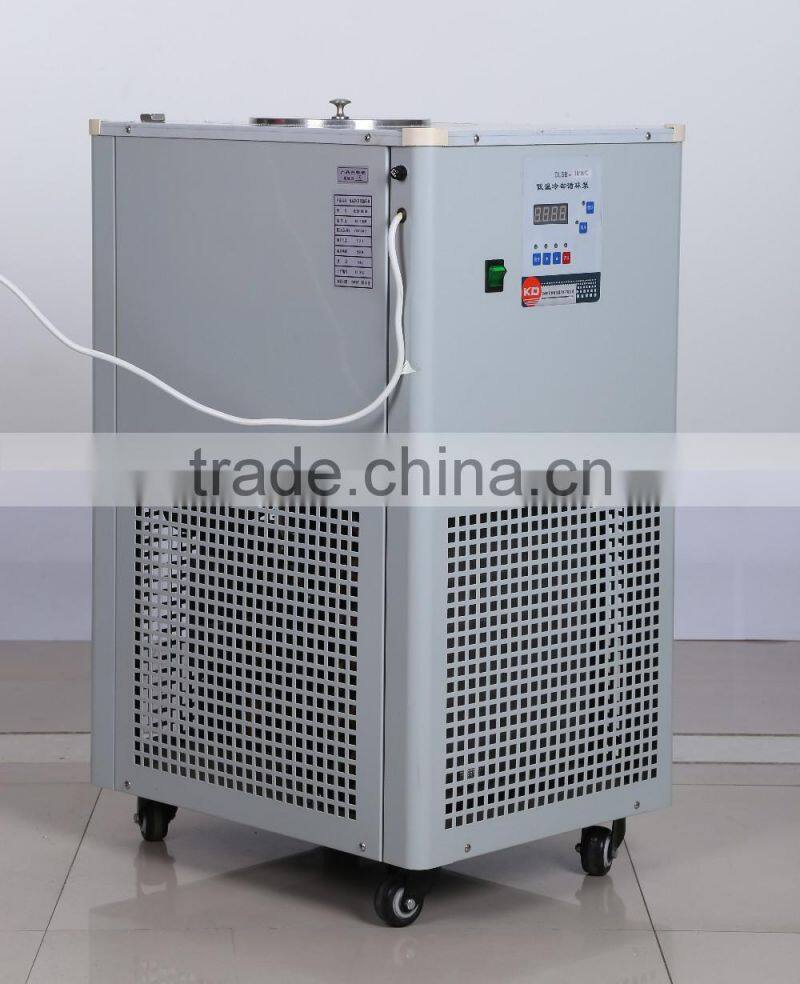

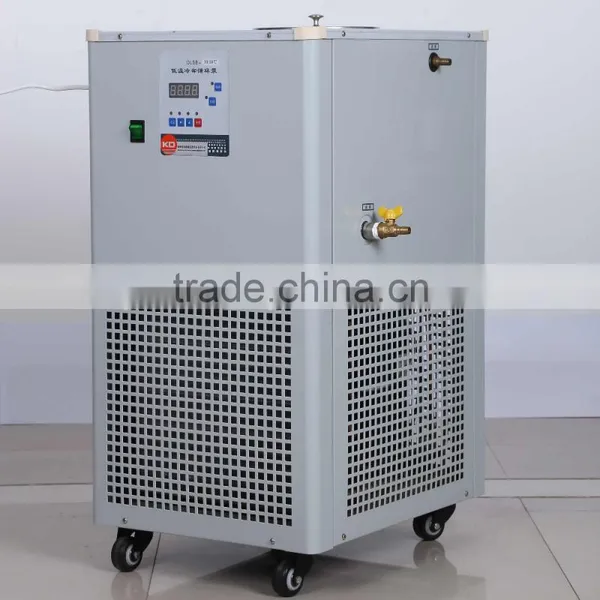

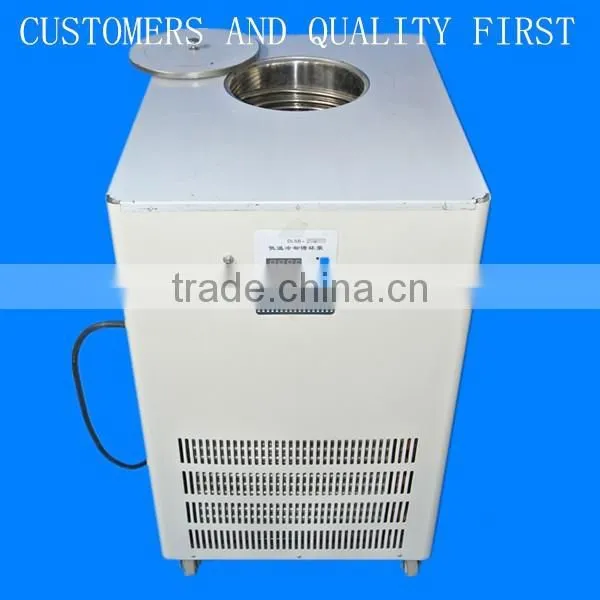

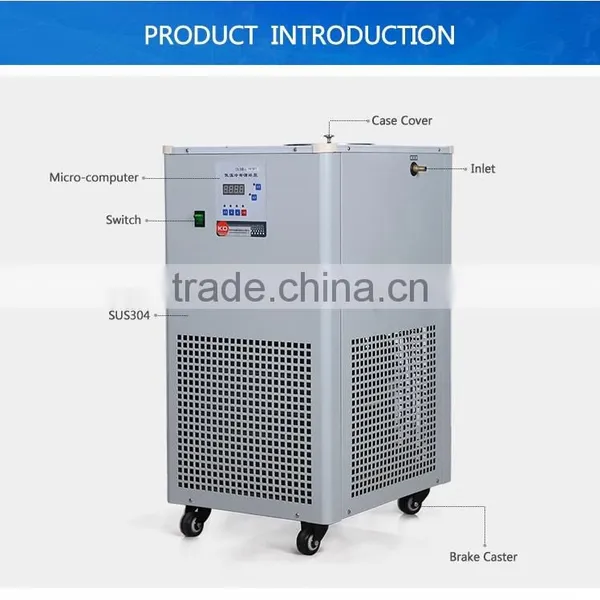

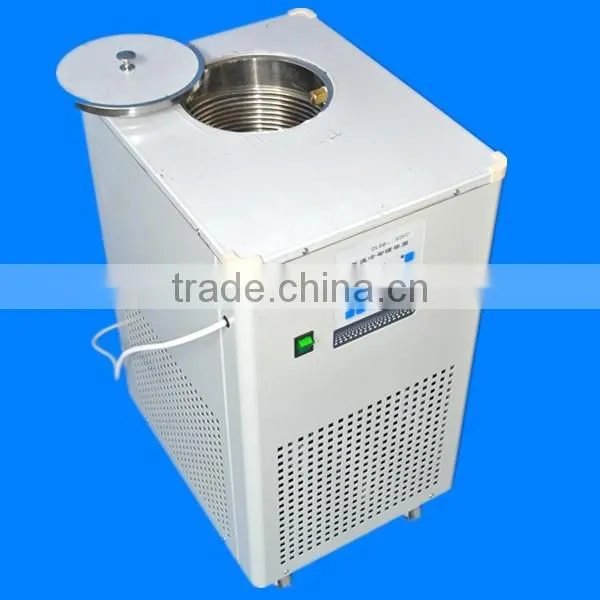

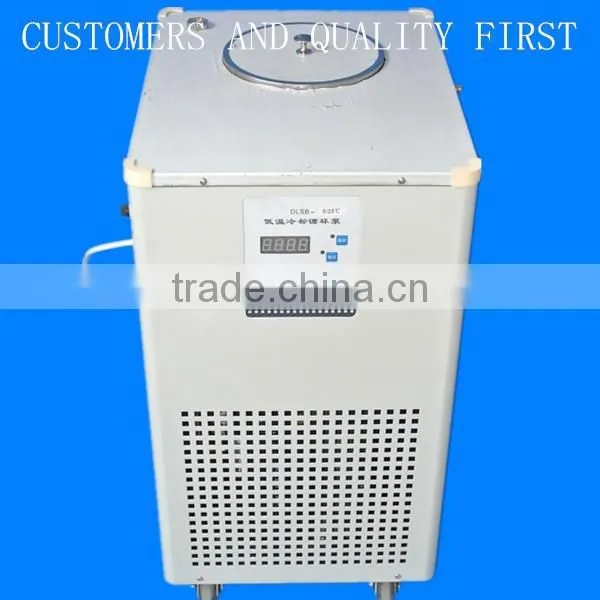

DLSB-10L Laboratory Low Temperature Circulating Chiller
Brief introduction
DLSB-10L laboratory low temperature circulating chiller is also know as low temperature cooling water / liquid circulation pump. This device adopt mechanical refrigeration cryogenic liquid cycle equipment, the main function is provide low temperature liquid, low temperature water bath. It can also connect with rotary evaporator, vacuum freeze drying oven, cycle water vacuum pump, magnetic stirrer and so on, to achieve the chemical reaction or drug store under low temperature condition. We can also be customized large-capacity according to the needs of users.
Features
♦ Air-cooled hermetic imported compressor group, reliable quality.
♦ Exclusive and high quality of relays, protectors, and capacitors.
♦ Microprocessor controller, displays clear, simple operation.
♦ It is a good ancillary equipment of various instruments, such as rotary evaporators, glass reactors, freeze drying equipment, drugs reactors, etc.
♦ Large cooling capacity, cooling speed, and greatly improve working efficiency.
♦ Under the condition of poor water quality, water pressure, water temperatures and high temperature, our machine can effectively protect all kinds of precision equipment for normal use.
♦ Circulation pump flow can be adjusted or customized to meet the practical needs of different customers.
♦ All models of the machine temperature and cooling capacity can be customized according to the customer's actual needs, to meet the different experimental match.
Technical parameter
Model | DLSB-10/10 | DLSB-10/20 | DLSB-10/25 | DLSB-10/30 | DLSB-10/40 | DLSB-10/60 | DLSB-10/80 | DLSB-10/120 | |
Refrigerant Performance | Volume | 10L | |||||||
No Load Min. Temp. (℃) | -14 | -23 | -28 | -32 | -42 | -62 | -82 | -122 | |
Cooling Capacity (W) | 1894-884 | 2733-813 | 3256-990 | 2036-1022 | 2628-748 | 3679-510 | 3679-160 | 4997-120 | |
Circulating Performance | Flow(L/min) | 20 | |||||||
Lift(m) | 4-6 m | ||||||||
Temperature Control Performance | Coolant Temp. (℃) | -10 | -20 | -25 | -30 | -40 | -60 | -80 | -120 |
Temp. Precision (℃) | ±0.2 | ||||||||
Working Condition | Power Supply | 220V/50Hz | 220V/50Hz 380V/50Hz | 380V/50Hz | |||||
Environment Temp (℃) | 25 | ||||||||
Environment Humidity | (60-80%) Ventilation | ||||||||
Machine Dimensions | Length (mm) | 500 | 550 | 550 | 580 | 580 | 730 | 880 | 900 |
Width (mm) | 400 | 420 | 420 | 450 | 450 | 660 | 670 | 700 | |
Height (mm) | 650 | 680 | 680 | 680 | 680 | 880 | 900 | 900 | |
Product details
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central China. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack and so on.
Present, we have become a pacesetter of the lab instrument in China. Our products have been exported to the countries such as the UK, Greece, Poland, US, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India, Singapore, Malaysia and so on. Our products are also earning wide recognition among our users.
1. How can I choose a reasonable model from so many models ?
We can supply temperature range from - 10 to -120 Celsius degree; Capacity from 5L-100L.
2. OEM is ok?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3. My location voltage is 110V, how can we handle this ?
Don’t worry! you can equipped with a voltage regulator or we can customized 110V for you (quantity exceed 10 sets ).
4. What’s the transportation mode you can choose?
For small orders, we will send the goods by International Express like Fedex, DHL, TNT or UPS. Usually it takes 2-7 working days to arrive. If big quantity we will ship by Ocean transportation, it takes one month to arrive.Iff urgent, you can select shipping by Air, but freight charge will be more expensive than sea transporation.
