Factory Direct Sales Machine Coolant Pump
Refrigerated circulators --adopt mechanical refrigeration, the main function is to provide low temperature liquid for rotary evaporator, glass reactor and so on to achieve the chemical reaction under low temperature condition.It is particularly suitable for the chemistry, biology, food industry, metallurgical industry, scientific research, genetic engineering, polymer engineering when need to maintain low temperature.
Features:
1. High Quality Air-cooled hermetic imported compressor group.
2. Exclusive and high quality relay, protector, and capacitor.
3. Microprocessor controller, displays display, simple operation.
4. Large cooling capacity and high cooling speed.
5. Circulation pump flow can be customized to meet the practical needs of different customers.
6. All models of the machine temperature and cooling capacity can be customized to meet the customer's actual needs.
7.The evaporation rate of plate type refrigerate circulators can rise up 50% than normal refrigerate circulators.

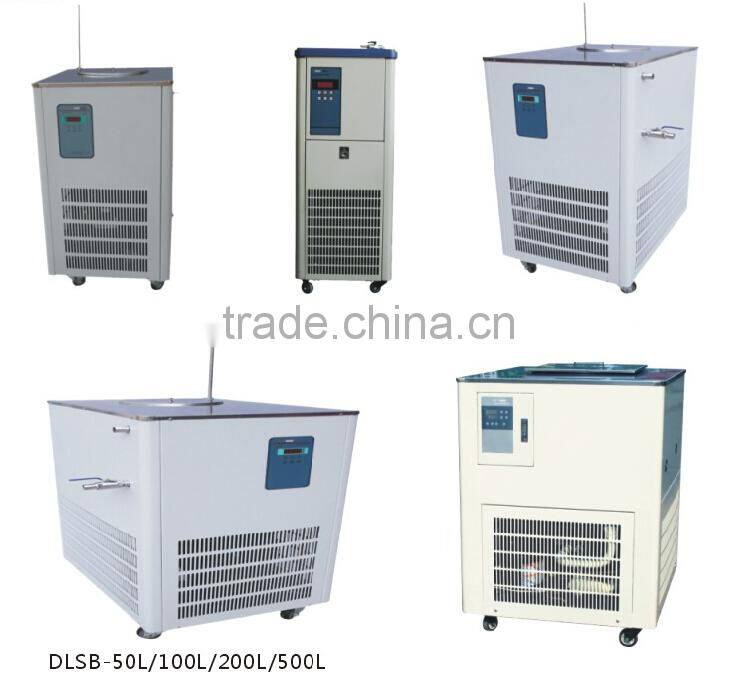

Various Types of Cool Chiller:
According to the volume of refrigerated circulators divided into : 5L,10L,20L,30L,40L,50L,60L,80L,100L.
Each volume according to the lowest temperature can divide into : -10℃,-20℃,-25℃ ,-30℃,-40℃,-60℃, -80℃,-120℃.
40L Technical data:
Model | Volume | Lowest temp | Cooling c apacity | Flow | Lift (m) | Cooling fluid temp | Temp accuracy | Supply power | Ambient temp | Ambient humidity |
DLSB-40/20 | 40L | -24°C | 3809-989 | 30L/min | 10-12 | -20°C | ±0.2°C | 220 | 25°C | 60-80% |
DLSB-40/30 | -33°C | 4997-2468 | -30°C | 380 | ||||||
DLSB-40/40 | -42°C | 7828-2178 | -40°C | |||||||
DLSB-40/80 | -82°C | 1273-3258 | -80°C | |||||||
DLSB-40/120 | -122°C | 1247-3462 | -120°C |
Applications:
Please read it carefully before using the instrument:
1. The machine's power standard is 220 v, should be equipped with reasonable grounding system and the safety of the standard three pole socket.
2. Before use, please put into the liquid medium (water, alcohol, antifreeze can also be), medium level should not lower than cold tube and 20 mm below the workbench is advisable. Don't let sand , acid-base class material or debris into the cooling system or the circulation pump, to prevent clogging or corrosion liner and coil.
3. Recurring observe the slot liquid level height, when the liquid level is too low, should be timely to add liquid medium.
4. When pump working temperature is lower, should pay attention not to open the cover. Never put your hand into the groove, to prevent frostbite.
5. The Pump working environment, temperature ≤ 25 ° C , humidity ≥ 60 ℃, no obstacles in the instrument around 300 mm. Indoor open flame is strictly prohibited.
6. When the liquid outer loop, the client shall pay special attention to the robustness of the out pipe joint, fight off, in order to avoid liquid leakage.
7. After use, all switch should be closed and cut off power supply.
8. The instrument should be regular cleaning, if the pump unused for a long time, you should put out the medium, and deep clean, maintain a clean and tidy work in mesa and the operation panel.
9. Don't try to open and repair equipment personal, any question, just make a call !
Shipment Safe and Efficient
Packaging details: In WOODEN CASE, CARTON BOX or as your customized.
Shipping: Shipped by express,sea and air.The most suitable one could be chosen according to your budget and timeline.
Delivery detail: Within 3-7 working days after payment.
Technology Service
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Tel: +86-371-53780197
Fax: +86-371-60920178
/
http://zzkedajt.en.china.cn/
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of China's scientific research.
The company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc. countries and our customers have been fully affirmation.
1 . How can I choose a reasonable model from so many models ?
We can supply temperature range from - 10 to -120 Celsius degree; Capacity from 5L-100L.
2. OEM is ok?
Yes, we can do artwork including printing, logo etc. for you if you provide us the content and tell us where to put.
3. My location voltage is 110V, how can we handle this ?
Don’t worry! You can equipped with a voltage regulator, or we can customized 110V for you.
4. What’s the transportation mode you can choose?
◊ For small orders, we will send the goods by International Express like FedEx, DHL, TNT or UPS. Usually it takes 3-7 work days to arrive.
◊ If big quantity we will ship by ocean transportation, it takes one month to arrive.
◊ If urgent, you can select shipping by air, but freight charge will be more expensive than sea transportation.
