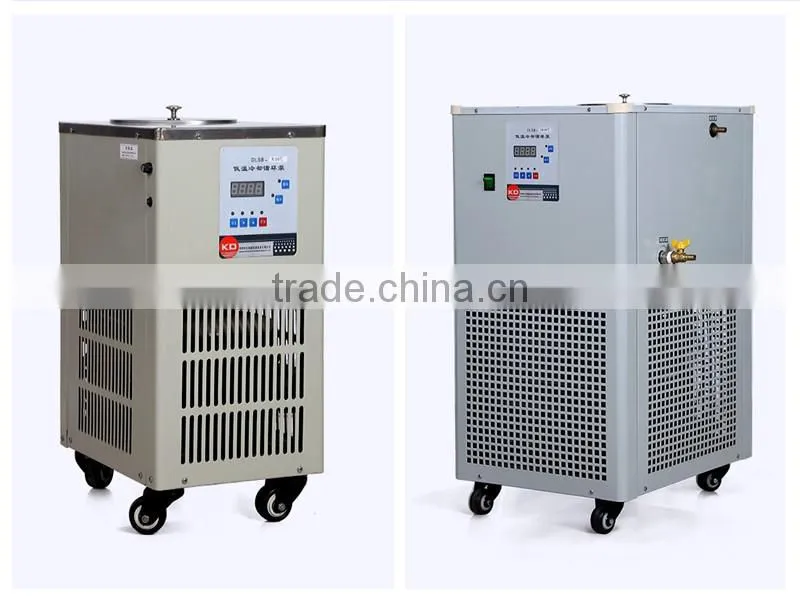

Factory Price 50l High and Low Temperature Cycing Device
Functions:
1.Adopt international famous manufacturers original closed compressor.
2.Refrigeration machine use the relay, protection,capacitor device.
3.Uses the air switch start button, the solid state relay highly effective intelligence
controls the warm table work.
4.Digital display temperature control.
5.The set of the machine cooling, heating, circulating in one.
Technical parameters:
Model |
20/-30/200°C |
30/-30/200°C |
50/-30/200°C |
||
Liquid tank capacity(L) |
20 |
30 |
50 |
||
Heating volume(L) |
3 |
3 |
10 |
||
Working conditions |
Temp range(°C) |
-30/+200 |
|||
The best environment temp(°C) |
≤25 |
||||
Environment relative humidity |
≤60 |
||||
Voltage |
380V±10% 50HZ |
||||
Power input (KW) |
9.2 |
10 |
12 |
||
Media viscosity |
below 500C·S·t |
||||
The main property and components |
Temp display |
digital |
|||
Temp control accuracy |
±2 |
||||
Sensor points |
Pt 100 |
||||
Setting mode |
Arbitrarily set within the temperature range |
||||
Instrument adjusting range(°C) |
-100 to 400 |
||||
Protection |
Delay, leakage, overcurrent, overheat |
||||
Refrigeration system |
power |
2.2KW |
3KW |
4.4KW |
|
Refrigerant |
R22 |
||||
Circulating pump |
power |
370W |
|||
Flow(L/min) |
50 |
||||
Pressure(kpa) |
1.2 |
||||
Product details :
Service promise:
1.Product quality guarantee is for one year,after our Products the date sold.
2.Products in the quality guarantee period, the company responsible for free maintenance and replacement parts.
3.The user must have the product maintenance with products in product quality guarantee card, certification, and effective bill.If can not,the date, according to the factory of the date ,will be extended for three months.
If you have any questions , please contact me , we will reply you within 24hours !!
