Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Raw Material Machinery > Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine

Name: Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine
Brand: HUAYIN
SKU: 141522550
Availability: InStock

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine thumbnail-1

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine thumbnail-2

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine thumbnail-3

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine thumbnail-4

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine thumbnail-5

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine photo-1

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine photo-2

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine photo-3

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine photo-4

Thailand Popular Plastics Waste to Fuel Oil Pyrolysis Machine photo-5

US$ 30,000 - 69,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Tire Machine

Tire Machine Type:

Tire Recycling Machine

Contact Supplier Request Quote Chat Now

Xinxiang City Huayin Renewable Energy Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Tire Machine

Tire Machine Type Tire Recycling Machine

Place of Origin Henan, China

Brand Name HUAYIN

Model Number HY-10T

Voltage 380V

Power(W) 15KW

Dimension(L*W*H) 9200*3140*3170

Weight 38T

Certification CE ISO14001 ISO9001

Warranty lifetime maintenace

After-sales Service Provided Engineers available to service machinery overseas

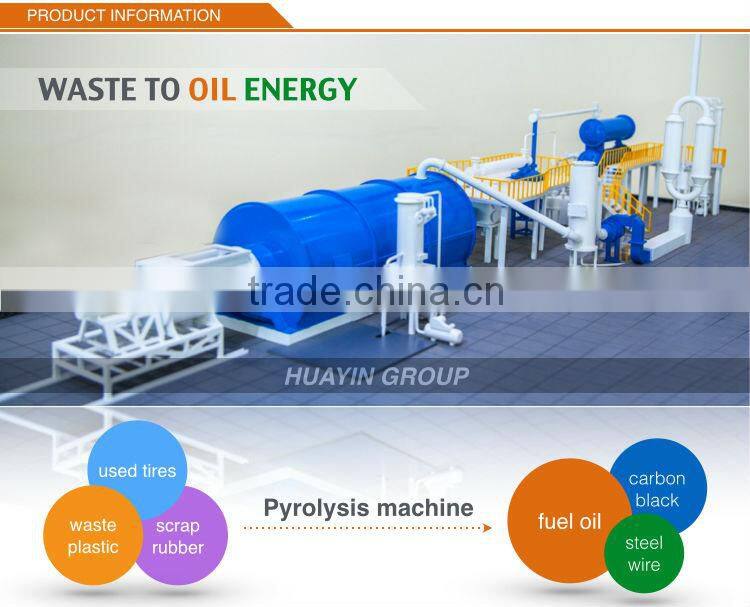

Thailand popular plastics waste to fuel oil pyrolysis machine

______________________________________________________________________

Nowadays, with human exploiting and environment degradation, natural energy especially oil energy is becoming less and less, on the contrary, municipal solid wastes are becoming more and more. Huayin can not produce natural energy, but we can turn the normal daily wastes like tyres and plastics into oil energy, which can be used as fuel in many industrial fields. We have been in this field since 1993, it is almost 21 years. Huayin is specialized in manufacturing waste tyre plastic recycling machine, waste tire/plastic oil distillation machine and used engine oil refining machine, decoloring and bad smelling removing machine, you can get diesel and gasoline as final products.

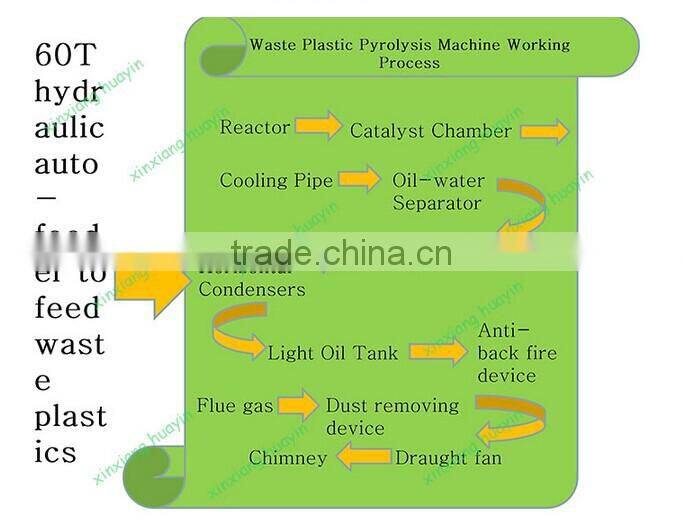

Waste plastic and tire recycling machine working process

______________________________________________________________________

1. Put raw materials into reactor by auto-feeder, then heat the reactor with any one of the following fuel materials: coal, wood, natural gas, oil. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tyre and plastic will be transferred to oil gas.

2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank. Third, the exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. In this way, you can not only saving energy, but also protecting environment.

3. Smoke produced by processing the tyres/plastics can achieve national emission standard through dual desulfurization and dusting removal device.

4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically. Last, when the temperature falls to 100 degree Celsius, worker could put steel wire hook to reactor to take steel wire out. After all these steps, you can start another batch.

Given below wastes that you can recycle:

______________________________________________________________________

1. House garbage, Plastic cable, Plastic bag, Sole

2. Mixed plastic (HDPE, LDPE, PE, PP, Nylon, PS, ABS etc)

3. Leftovers of paper, Submarine cable

4. Mixed waste plastic from waste paper mill

5. Multi Layered Plastic

6. Waste Tyres

7. Rubber

8. Plastic or rubber parts from vehicles

9. Waste engine oils etc

Waste plastic and tire recycling machine pollution and safety concern solutions: ___________________________________________

First: safety concern solution:

When feeding, we need to rotate the boiler taking advantage of built-in spiral plates to full up the reactor and make full use of the space. In this case, the oil outlet pipe maybe blocked.

1.In order to avoid this problem, We set one anti-clogging net inside it.

2. Pressure gauges, alarms, and safety valves

2.1 Even there is blocking causing high pressure inside the reactor (this situation easily cause explosion), alarm will ring to call worker to adjust the condition.

2.2 If there is no answer from workers, no need to worry, we also have pressure reducing valve which can automatically reduce the pressure .

Every case we have taken into attention to avoid any dangerous condition. Just keep danger strangled in the cradle.

3. Vacuum Device

Especially continuous feeding of waste plastic and also heating, there maybe odorous gas going out from the reactor. How to avoid? Vacuum Device helps! Before heating the reactor and the temperature inside below 100 celsius degrees, open this device, vacuum state easily sunk these bad smell to its space. It is convenient and easy to operate.

Second: pollution problem solution:

From gas, water, sound and slag regarding to waste plastic and tire recycling machine to protect our environment.

1.Gas.

1.1 Produced in the refining process, like methane, ethane, propane and other combustible gas.

These gases are kind of energy, why not take advantage of them? Therefore we recycle them to furnace as a fuel to heat the reactor, save energy and reduce pollution.

1.2 Another source of gas is from the smoke burned of coal/wood/oil/combustible gas. If discharged directly into the air, must cause bad small also air pollution. It’s not wise if you do this way. Our acid-base neutralization dust-removing system helps you solve the problem.

1.3 The last, no sulfur, no pollution. Just water steam with high temperature.

4.Sound

The voice from the whole production line is in line with national noise emission standards.

3.Slagging

Usually means carbon black in the first link, our pyrolysis machine. There are many use of carbon black.

3.1.Used as raw material in factory which produce shoes, tires, cable or sealant.

3.2. Make carbon black powder into carbon black briquette, use it for burning.

2.Water.

Used for cooling and can be recycled, no pollution here, just with high temperature.

Further more details, Welcome to contact with us !

Skype: gjmsunny Whatsapp: 0086-15037123067
