Specifications
pyrolysis tyre machine:1.safety and environmental friendly
2.enegy saving and high oil output
3.long life and higher effect
Working process of pyrolysis tyre machine:
Firstly, put the raw material into furnace, then seal the feed inlet system.
Secondly, burn the fuel material(coal. wood, gas or oil)in the combustion system, the reactor will slowly heat, when the temperature reaches around the certain temperature, it will from solid into gas ,the oil gas will be produced by our technology, then go into the water-oil separator, and the heavy oil will be separated, and then go through the cooling system to be liquid oil, the gas which cannot be liquid will be recycled to the reactor for heating.
At the same time, the dust removal device will clean up the dust in the gas, then the gas through the Condenser being cooled into liquid, then the gas exhausted to the air is little, so it is no pollution and energy saving.

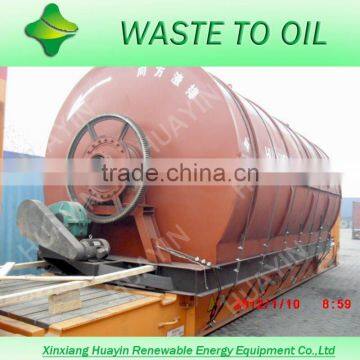

Parts of the Pyrolysis Plant
Mainly by 13 parts, which are reactor, catalyst chamber, water-oil separator, two big horizontal Condensers(great cooling effect),two oil tank, anti-back fire device, negative pressure device,vacuum device, buffer tank, water jet flue, condenser pipe, dedusting system, draft fan and chimney.
Outputs Information
Fuel Oil:40%-45%
Carbon Black:30%-35%
Steel Wire:10%-15%
The fuel oil can be used to industrial fuel for burning, or refining to diesel and gasoline.
Carbon Black can be sold to the brick factory as internal combustion or as the raw materials of tire, shoe, cable, etc.
Steel Wire can be sold to iron and steel company.
Profit Analysis
For example the waste tire oil refining equipment processing 10 tons.
NO |
Item |
Cost of per batch |
1 |
10 tons of waste tires |
10T*1500RMB/T=15,000RMB |
2 |
0.4tons of coal |
0.4T*800RMB/T=320RMB |
3 |
Water and electricity |
200*1.00RMB=200RMB |
4 |
Worker |
4*100RMB=400RMB |
5 |
Total cost |
15,920RMB |
NO |
Item |
Income |
1 |
Crude oil |
10*45%*4500RMB=20,250RMB |
2 |
Carbon black |
10T*35%*520RMB=1,820RMB |
3 |
Steel wire |
10T*15%*2200RMB=3,300 RMB |
4 |
Daily gross profit |
25,370 RMB |
5 |
Daily net profit |
25,370 RMB -15,920 RMB =9,450 RMB |
6 |
Monthly net profit |
9,450 RMB *20=189,000 RMB |
7 |
Yearly net profit |
189,000 RMB *10=1,890,000 RMB |
