Tire Cutting Machine For Tire Pyrolysis Machine Into Crude Oil
- 30 Set / Sets per Month
- Qingdao/tianjing/shanghai/Guangzhou
- T/T Credit Card
Product Details
Condition: | New | Type: | Rubber Cutting Machine | Place of Origin: | Henan, China |
Brand Name: | Huayin | Model Number: | 2T/H | Voltage: | 380V 50Hz |
Power(W): | 2.2kw | Dimension(L*W*H): | 1300*900*1480mm | Weight: | 300KG |
Certification: | SGS ISO9001 | Warranty: | 1 year after selling | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product description:

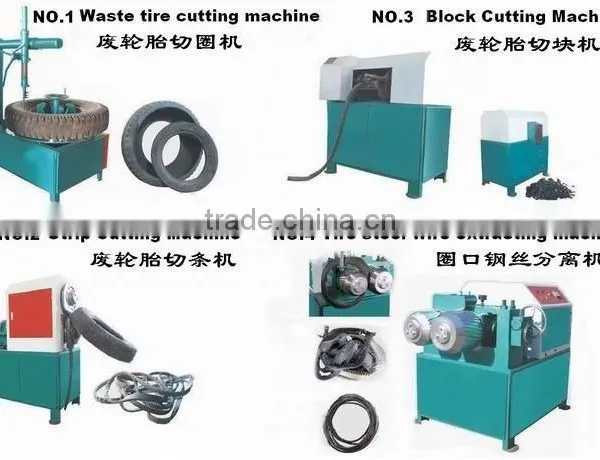

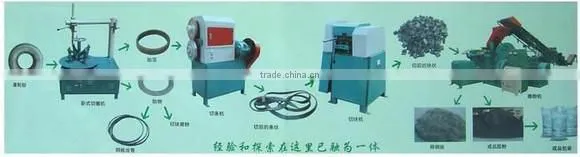

waste or used tire processing equipment ,radial tire or OTR cutting device
Usage:cut waste tires or rubber for the same pyrolysis machine ,you can feed more materials
Difference:
170kg/m³ whole tire by labor
250kg/m³ whole tire by auto-feeder
300kg/m³ tire in pieces
Principle: Use the tire bead as support point and place the tire on the support mechanism, then fix it tightly to the adjusting mechanism, then rotate the tire in a low speed by reducer. The knife can extend out and retract at ease. While the tire is rotating in low speed, the knife cut into the tire to cut it successfully.
Motor Power | Tire diameter | capacity | outside dimensions | Machine weight |
2.2KW | 750mm-1200mm | 25-30Piece /hour | 1150*850*1200 | 0.5T |
Strip cutting machine can cut the tire which has been cutting down its steel ring into slices, and the width of it can be adjusted. The two circle knives are made of special materials.
It is hard, durable and can be used repeatedly. It is suitable for the steel wire tires with diameter under 1200 mm.
Motor power | Processing quantity | Tire diameter | Strip size | Equipment sizes | Machine weight |
4KW | 20/h | <1200 | 35-55 | 1230*650*1580 | 0.8 tons |
The piece cutter can cut stripe that has been cut by strip machines into pieces. The knife is of alloy material and its daily output is 9—11 tons. The knife can be grinded repeatedly if it’s blunt.
Piece cutter:
Motor power | Processing quantity | Pieces’ size | Equipment sizes | Machine weight |
7.5KW | 0.8-1 tons/ h | 35*35*35 | 780*550*1210 | 0.6 tons |
Tire steel wire separator.With its features of good elasticity, high hardness, the wire-steel in rim of waste tires is ideal materials for sandblasting peen-forming.
Being difficult to separate the wire-steel and its rubber, the previous separation method is mainly burning. This kind of original treatments is of low speed, making annealing of the wire-steel hard, and losing its features of good elasticity and high hardness, with its utilization value declining sharply and the environment greatly polluted. The rubber becomes mere garbage after burning.
The rim wire-steel separator uses dual roll mill to squeeze. The wire-steel is separated from the rim of the tires by difference of rotating speed of the two roll mill. It can keep the physical feature of the steel wire at the highest degree. The rubber can be reused, which avoids environmental pollution. It is the best for dealing the rim of the waste tires.
Motor power | Processing quantity | Products’ size | Equipment sizes | Machine weight
|
15KW | 1 /min | 1.2*500*20 | 1500*110*1200 | 1 tons |
Here is all the data of waste tire cutting machine,if you want to use the pieces of waste tires or rubber to get crude oil from waste tire pyrolysis machine,just feel free to send inquiry,we will try our best to reply within 24 hours.
and or contact me by skype:janyjiang,we will reply you immediately.
A: waste tire recycling to crude oil pyrolysis plant
B: waste oil or black oil refinery plant
C:Waste tire cutting device into tires pieces
D:Used or Waste Plastic to oil pyrolysis machine
