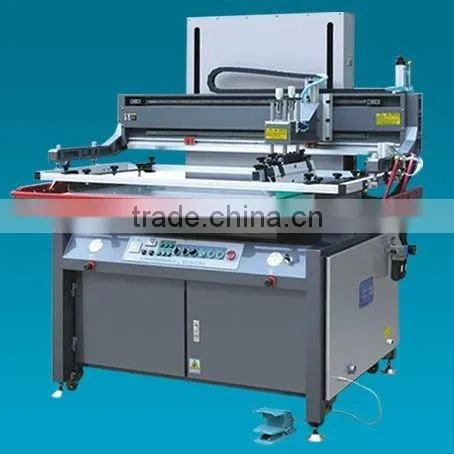

Horizontal-Lift Flat Half-Tone Screen Printer

The machine is designed for aiming at the hard distortion printing stock,the printing scope is very widely and can be used for screen printing of many plane bodies,such as paper,plastic,glass,ceramics,metal,textile and leather etc,especially for the printing of electron field PCB,soft PCB,PCBliquid state sensitization glue,SMT tin cream.

Characteristics

1.Integrative speed reducer drive the up and down of printing head,it's quick and steady.

2.High precision quide rail to equip with "MEGADYNE" synchronization belt drive the printing with frequency conversion,working precision is higher and more steady.

3.Gas-liquid transformer linked with off-network cylinder,which ensure network off equally and steadily.

4.The fine tuning and locked device of work table is separate,which eliminate the work table locked error.

5.Two cylinders control the squeegee and ink retum biade separately,the printing pressure is large and equal.

Main Technical Parameters
