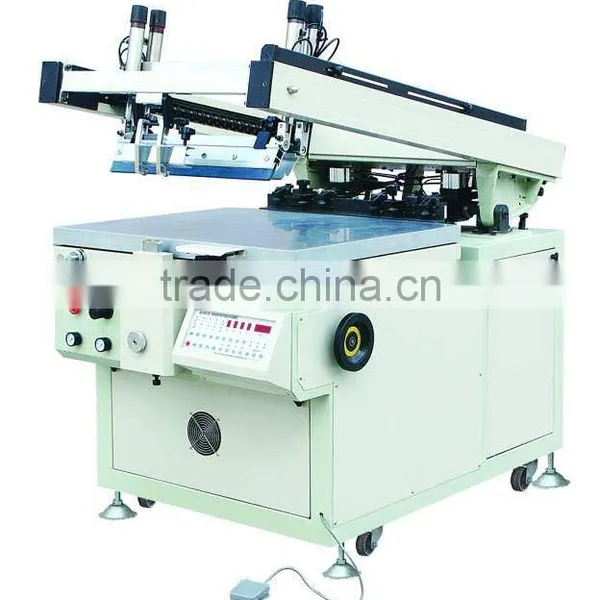

High Precision Tilted-arm Flat Screen Printer

High Precision Tilted-arm Flat Screen Printer thumbnail-1
High Precision Tilted-arm Flat Screen Printer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Tonghe
Contact Supplier Request Quote Chat Now
Yiwu Tonghe Imp. & Exp. Trading Firm
Payment & Shipping
Payment Methods:
Port of Shipment:
Yiwu Port Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number TH series
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer
Automatic Grade Semi-Automatic
Voltage 380V
Gross Power 2.6KW/3.7KW
Dimensions(L*W*H) It depends
Weight See table below
Certification CE/ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

The screen print of the film, card, board and paper made of variety of basic material in different thickness. Such as the packaging box of cigarette, liquor, tea, medicine and cosmetics, various rotary screen-printing paper, alll kind of PVC, PET and PC soft films and hard films, boards, menbrance and paper.
Performance & Features
1.The printing effect is very excellent by using four air cylinders;
2.The height of screen-release device can be quickly adjusted, ensure printing precision and quality;
3.The tension pressure for printing blade, ink-return blade is adjusted separately at infinite speed, which increases the service lift and printing quality of half tone;
4.Printing stroke and half tone fixed system can be quickly adjusted to meet different printing area.
High Precision Tilted-arm Flat Screen Printer

Item

6090

80120

Overall Dimension

1600*1200*1300mm

1900*1400*1400mm

Max. Printing Size

600*900mm

800*1200mm

Max. Screen Frame Size

950*1100mm

1250*1500mm

Printing Table Size

800*1000mm

1000*1300mm

Max. Printing Speed

1200pcs/h

1200pcs/h

Printing Thickness

1-50mm

1-50mm

Power

3P4N 50/60HZ  380V 2.6KW

3P4N 50/60HZ  380V 3.7KW
