Specifications

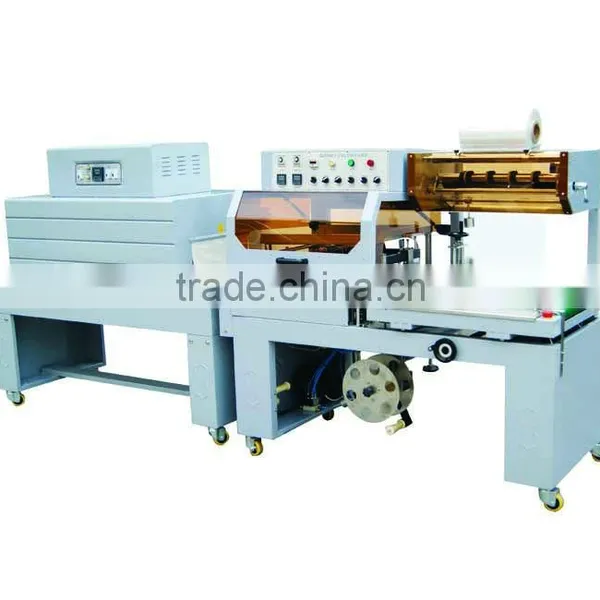

Automatic Heat Tunnel Shrink Wrap Machine1.Film wrapping,sealing,cutting & shrinking in one process
2.high efficiency
SEALING PART
1.LQ5045 Automatic L-type sealer is developed for fully automatic operation.
2.It is able to be integrated with production line.
3.Objects are fed by conveyor and cut automatically.
4.Position of front and rear film is adjustable.
5.The conveyor time is adjustable.
6.Has protection device for cutting head in order to protect operator.
7.Adopts stick-proof heating wire to cut and seal film.
8.No smoking of film.
SHRINKING PART
BS-D4520 shrink tunnel adopts advanced jet heating circulation system, high efficiency and low power consumption. Stainless steel heater is applied, that has long life and large heating power.
Model |
LQ-5045 |
BS-D4520 |
Max.packing size |
L500*W350*H120 mm |
W450*H200mm |
Max.sealing size |
L500*W450 mm |
/ |
Power |
1.3Kw |
8.5Kw |
Capacity |
1200-1600 packs/hour |
0-15m/min |
Voltage |
220V 50-60Hz |
380V/220V 50Hz |
Weight |
260Kg |
210Kg |
Machine size |
L1700*W1000*H1400 mm |
L1600*W830*H 1400 mm |
