Help CenterHeavy Duty PE/PVC/POF Thermal Shrink Packaging Machine For Mineral Water Bottles/Drinking Bottles/Beer Bottles/Beverage Bottles
Related Products
-
Pneumatic L-Type Sealer And Heat Tunnel Shrink Wrapping Machine/Shrink Wrap Sealer MachineNegotiableMOQ: 1 Set -
Semiautomatic Dual-Purpose Condom Film Packaging MachineNegotiableMOQ: 1 Set
-
BOPP Box Cellophane Film Overwrapping MachineNegotiableMOQ: 1 Set
-
Automatic Multi-Box Cellophane Over Wrapping MachineNegotiableMOQ: 1 Set
-
Semi Automatic Transparent Film Cellophane 3D Packing MachineNegotiableMOQ: 1 Set

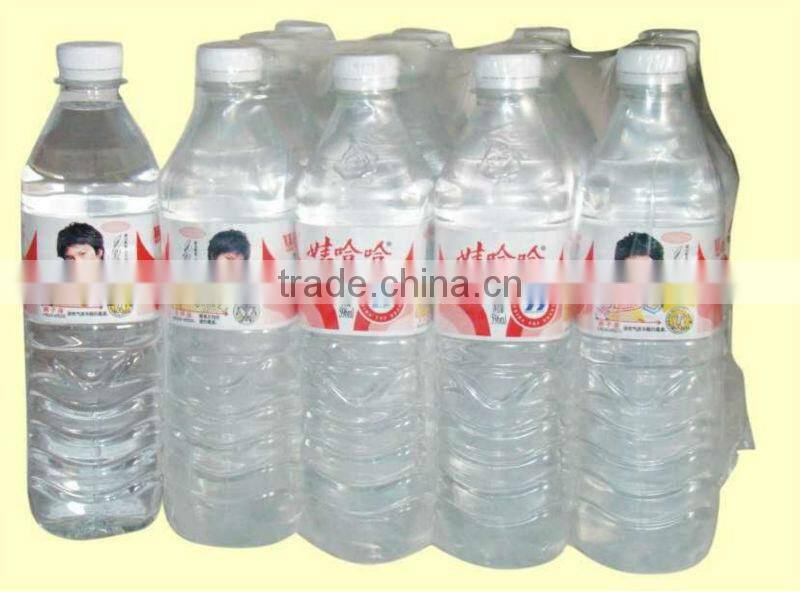

1.This sleeve wrapping machine is suitable for wrapping pop-cans, bottles, etc, both with bottom-tray and without bottom-tray, working with PE shrink tunnel to pack the goods perfectly.
2.The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.
Features
1.Up and down magnetic switch prevent sealing mistakes, and protect the operators.
2. The input position is adjustable, base on the size of products packaged.
3.‘Schneider’ PLC, ‘Schneider’ AC contractor, and Intelligent temperature controller performs stable.
4.Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
5. Up and down large power fan system ensures the excellent effect of shrinking in one time.
6. Super cooling system cools the packing and makes the figuration perfectly.
7.The size of tunnel can be customized as your request.
Model |
FQJ-4527(Pneumatic) |
Model |
PES-5038 |
Voltage |
220-240V, 50-60HZ1.8KW |
Voltage |
3phase 220V/380V 50-60HZ |
Capacity |
2-5pcs/min. |
Heater Power |
25KW Adjuster |
Sealing time/shrink time |
0.5-1.5s, 0-0.6s |
Conveyer Speed |
0-10m/minute |
Conveyor loading |
30kg |
Tunnel size(L*W*H) |
1200*500*380mm |
Film width |
Max. 500mm |
Conveyer loading |
25Kg MAX. |
Film thickness |
0.04-0.12mm |
Shrink film |
PE,POF,PVC,PP |
Max. packing dimension(L*W*H) |
450*270*350mm |
Machine weight |
250KG |
Min. packing dimension(L*W*H) |
250*60*60mm |
Machine size |
2200*780*1470mm |
Machine size(L*W*H) |
1020*830*1980mm |
|
|
