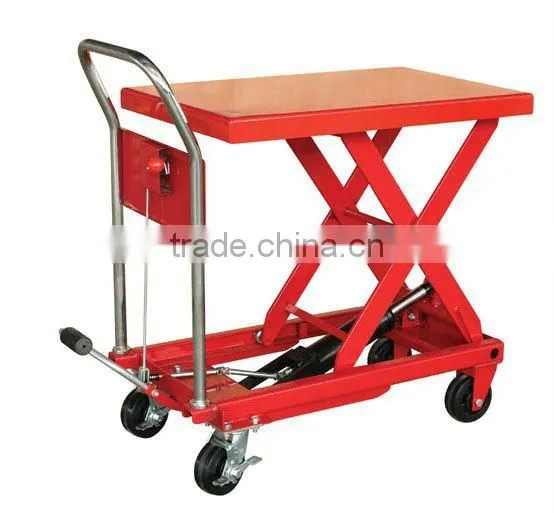

300/1000KG Hand Manual Small Scissor Platform Lift

Name: 300/1000KG Hand Manual Small Scissor Platform Lift
Brand: Tonghe
SKU: 141518564

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Tonghe

Model Number:

MPT Series

Yiwu Tonghe Imp. & Exp. Trading Firm

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Tonghe

Model Number MPT Series

Lift Mechanism Scissor Lift

Lift Drive / Actuation Hydraulic

Rated Loading Capacity 300-1000KG

Min. Lifting Height 280mm

Max. Lifting Height 1000mm

Table Size 815/1000*510mm

Overall Dimensions It depends

Certification CE/ISO

Warranty 1 year

After-sales Service Provided No overseas service provided

Specifications

1.Variety of capacity available.
2.Used for lifting,transporting, positioning, assembling & stacking.
3.With CE certificate.

Features

1.Lifting capacity 300~1000kg with lifting height from 900~1000mm.

2.Ergonomically designed lifter/transporter features with hydraulic foot pump to elevate formed-edge platform, reducing strain & fatigue.

3.Used for lifting, transporting, positioning, assembling and stacking.

4.Easy to operate brakes keeps unit stationary while loading and unloading.

5.Conforms to EN 1757-4 standards.

Specifications

Item	MPT-30	MPT-50	MPT-75	MPT-100
Capacity(kg)	300	500	750	1000
Min.Table Height(mm)	290		390
Max.Fork Height(mm)	900		1000
Table Size(mm)	81551050		100051055
Wheel(mm)	Φ 125*50		Φ 150*50
Foot Pedal Cycles to Max Height	≤ 40		≤ 55
Height of handle from the ground (mm)	980		1020
